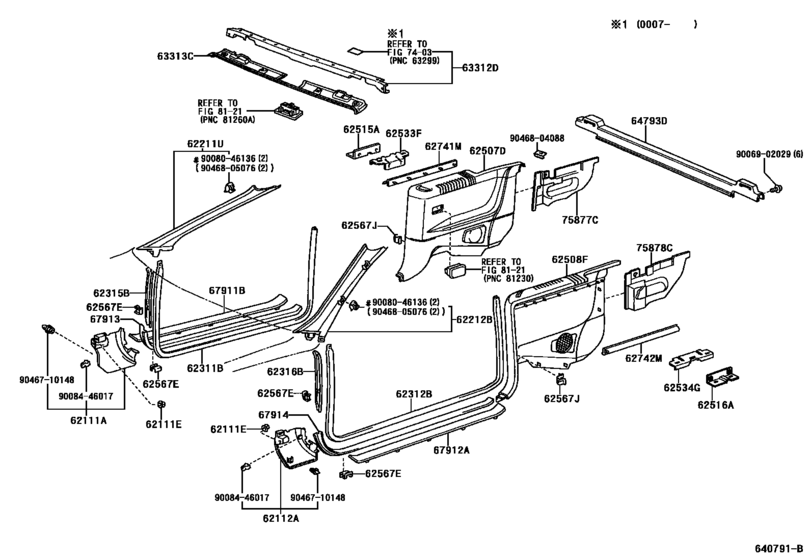

Inside Trim Board & Door Opening Trim Moulding ([02.2000 - ] (0002- )CVT) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62111A
|
62111A
62101-06020-A0
Trim Sub-Assy, Cowl Side, Rh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT IVORY,TRIM0# |
62101-06020-A0 |
— | ||
|
62111A
|
62111A
62101-06020-B0
Trim Sub-Assy, Cowl Side, Rh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT SHADOW GRAY,TRIM1# |
62101-06020-B0 |
— | ||
|
62111E
|
62111E
90467-06158-C0 Clip, Cowl Top Ventilator Louver[06.1998 - 12.2002] ACV20,MCV20,SXV20 BLACK,TRIM0#,1# |
90467-06158-C0 |
from US $1.22 |
||
|
62112A
|
62112A
62102-06020-A0
Trim Sub-Assy, Cowl Side, Lh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT IVORY,TRIM0# |
62102-06020-A0 |
— | ||
|
62112A
|
62112A
62102-06020-B0
Trim Sub-Assy, Cowl Side, Lh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT SHADOW GRAY,TRIM1# |
62102-06020-B0 |
— | ||
|
62211U
|
62211U
62210-AA030-A0
Garnish Assy, Front Pillar, Rh
[02.2000 - 07.2002] ACV20,MCV20,SXV20..CVT IVORY,TRIM0# |
62210-AA030-A0 |
— | ||
|
62211U
|
62211U
62210-AA030-C0
Garnish Assy, Front Pillar, Rh
[02.2000 - 07.2002] ACV20,MCV20,SXV20..CVT BLACK,TRIM1# |
62210-AA030-C0 |
— | ||
|
62211U
|
62211U
62210-AA031-A0
Garnish Assy, Front Pillar, Rh
[07.2002 - 12.2002] ACV20,MCV20..CVT IVORY,TRIM0# |
62210-AA031-A0 |
— | ||
|
62211U
|
62211U
62210-AA031-C0
Garnish Assy, Front Pillar, Rh
[07.2002 - 12.2002] ACV20,MCV20..CVT BLACK,TRIM1# |
62210-AA031-C0 |
— | ||
|
62212B
|
62212B
62220-AA030-A0
Garnish Assy, Front Pillar, Lh
[02.2000 - 07.2002] ACV20,MCV20,SXV20..CVT IVORY,TRIM0# |
62220-AA030-A0 |
— | ||
|
62212B
|
62212B
62220-AA030-C0
Garnish Assy, Front Pillar, Lh
[02.2000 - 07.2002] ACV20,MCV20,SXV20..CVT BLACK,TRIM1# |
62220-AA030-C0 |
— | ||
|
62212B
|
62212B
62220-AA031-A0
Garnish Assy, Front Pillar, Lh
[07.2002 - 12.2002] ACV20,MCV20..CVT IVORY,TRIM0# |
62220-AA031-A0 |
— | ||
|
62212B
|
62212B
62220-AA031-C0
Garnish Assy, Front Pillar, Lh
[07.2002 - 12.2002] ACV20,MCV20..CVT BLACK,TRIM1# |
62220-AA031-C0 |
— | ||
|
62311B
|
62311B
62311-06040
Weatherstrip, Front Door Opening Trim, Rh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62311-06040 |
— | ||
|
62312B
|
62312B
62312-06040
Weatherstrip, Front Door Opening Trim, Lh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62312-06040 |
— | ||
|
62315B
|
62315B
62315-AA010-A0
Cover, Front Door Opening Trim, Rh
[06.1998 - 12.2002] ACV20,MCV20,SXV20 IVORY,TRIM0# |
62315-AA010-A0 |
— | ||
|
62315B
|
62315B
62315-AA010-B1
Cover, Front Door Opening Trim, Rh
[06.1998 - 12.2002] ACV20,MCV20,SXV20 SHADOW GRAY,TRIM1# |
62315-AA010-B1 |
— | ||
|
62316B
|
62316B
62316-AA010-A0
Cover, Front Door Opening Trim, Lh
[06.1998 - 12.2002] ACV20,MCV20,SXV20 IVORY,TRIM0# |
62316-AA010-A0 |
— | ||
|
62316B
|
62316B
62316-AA010-B1
Cover, Front Door Opening Trim, Lh
[06.1998 - 12.2002] ACV20,MCV20,SXV20 SHADOW GRAY,TRIM1# |
62316-AA010-B1 |
— | ||
|
62507D
|
62507D
62507-AA010-C0
Panel Sub-Assy, Quarter Trim, Rh
[02.2000 - 07.2002] ACV20,MCV20,SXV20..CVT SHADOW GRAY,TRIM1# |
62507-AA010-C0 |
— | ||
| replacement | |||||
|
62507D
|
62507D
62507-AA011-C0
Panel Sub-Assy, Quarter Trim, Rh
[02.2000 - 07.2002] ACV20,MCV20,SXV20..CVT SHADOW GRAY,TRIM1# |
62507-AA011-C0 |
— | ||
|
62507D
|
62507D
62507-AA010-E0
Panel Sub-Assy, Quarter Trim, Rh
[02.2000 - 07.2002] ACV20,MCV20,SXV20..CVT IVORY,TRIM0# |
62507-AA010-E0 |
— | ||
| replacement | |||||
|
62507D
|
62507D
62507-AA011-E0
Panel Sub-Assy, Quarter Trim, Rh
[02.2000 - 07.2002] ACV20,MCV20,SXV20..CVT IVORY,TRIM0# |
62507-AA011-E0 |
— | ||
|
62507D
|
62507D
62507-AA011-C0
Panel Sub-Assy, Quarter Trim, Rh
[07.2002 - 12.2002] ACV20,MCV20..CVT BLACK,TRIM1# |
62507-AA011-C0 |
— | ||
|
62507D
|
62507D
62507-AA011-E0
Panel Sub-Assy, Quarter Trim, Rh
[07.2002 - 12.2002] ACV20,MCV20..CVT SANDAL WOOD,TRIM0# |
62507-AA011-E0 |
— | ||
|
62508F
|
62508F
62508-AA010-C0
Panel Sub-Assy, Quarter Trim, Lh
[02.2000 - 07.2002] ACV20,MCV20,SXV20..CVT SHADOW GRAY,TRIM1# |
62508-AA010-C0 |
— | ||
| replacement | |||||
|
62508F
|
62508F
62508-AA011-C0
Panel Sub-Assy, Quarter Trim, Lh
[02.2000 - 07.2002] ACV20,MCV20,SXV20..CVT SHADOW GRAY,TRIM1# |
62508-AA011-C0 |
— | ||
|
62508F
|
62508F
62508-AA010-E0
Panel Sub-Assy, Quarter Trim, Lh
[02.2000 - 07.2002] ACV20,MCV20,SXV20..CVT IVORY,TRIM0# |
62508-AA010-E0 |
— | ||
| replacement | |||||
|
62508F
|
62508F
62508-AA011-E0
Panel Sub-Assy, Quarter Trim, Lh
[02.2000 - 07.2002] ACV20,MCV20,SXV20..CVT IVORY,TRIM0# |
62508-AA011-E0 |
— | ||
|
62508F
|
62508F
62508-AA011-C0
Panel Sub-Assy, Quarter Trim, Lh
[07.2002 - 12.2002] ACV20,MCV20..CVT BLACK,TRIM1# |
62508-AA011-C0 |
— | ||
|
62508F
|
62508F
62508-AA011-E0
Panel Sub-Assy, Quarter Trim, Lh
[07.2002 - 12.2002] ACV20,MCV20..CVT SANDAL WOOD,TRIM0# |
62508-AA011-E0 |
— | ||
|
62515A
|
62515A
62515-AA020
Base, Quarter Trim, Rh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62515-AA020 |
— | ||
|
62516A
|
62516A
62516-AA020
Base, Quarter Trim, Lh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62516-AA020 |
— | ||
|
62533F
|
62533F
62533-AA010
Bracket, Quarter Trim Panel, No.1 Rh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62533-AA010 |
— | ||
|
62534G
|
62534G
62534-AA010
Bracket, Quarter Trim Panel, No.1 Lh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62534-AA010 |
— | ||
|
62567E
|
62567E
62567-33010 Clamp, Rocker Panel Inner Protector, No.2[06.1998 - 07.2002] ACV20,MCV20,SXV20 COWL PANEL SIDE |
62567-33010 |
US $4.95 |
||
|
62567E
|
62567E
67923-06020
Clamp, Rocker Panel Inner Protector, No.2
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT SCUFF PLATE |
67923-06020 |
— | ||
|
62567J
|
62567J
62567-AA020
Clamp, Rocker Panel Inner Protector, No.2
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62567-AA020 |
— | ||
|
62741M
|
62741M
62741-AA010
Weatherstrip, Quarter Window, Rh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62741-AA010 |
— | ||
|
62742M
|
62742M
62742-AA010
Weatherstrip, Quarter Window, Lh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62742-AA010 |
— | ||
|
63312D
|
63312D
63312-AA011-A0
Headlining, Roof, No.2
[07.2000 - 12.2002] ACV20,MCV20,SXV20..CVT IVORY,TRIM0# |
63312-AA011-A0 |
— | ||
|
63312D
|
63312D
63312-AA011-C0
Headlining, Roof, No.2
[07.2000 - 12.2002] ACV20,MCV20,SXV20..CVT BLACK,TRIM1# |
63312-AA011-C0 |
— | ||
|
63313C
|
63313C
63313-AA010-A0
Headlining, Roof, No.3
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT IVORY,TRIM0# |
63313-AA010-A0 |
— | ||
|
63313C
|
63313C
63313-AA010-C0
Headlining, Roof, No.3
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT BLACK,TRIM1# |
63313-AA010-C0 |
— | ||
|
64793D
|
64793D
64793-AA010-C0
Retainer, Tarpaulin Storage Cover
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT BLACK,TRIM1# |
64793-AA010-C0 |
— | ||
|
64793D
|
64793D
64793-AA010-E0
Retainer, Tarpaulin Storage Cover
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT SANDAL WOOD,TRIM0# |
64793-AA010-E0 |
— | ||
|
67911B
|
67911B
67911-06020
Plate, Front Door Scuff, Outside, Rh
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
67911-06020 |
— | ||
|
67912A
|
67912A
67912-06020
Plate, Front Door Scuff, Outside Lh
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
67912-06020 |
— | ||
|
67913
|
67913
67913-06020-A0
Plate, Front Door Scuff, Rh
[06.1998 - 12.2002] ACV20,MCV20,SXV20 IVORY,TRIM0# |
67913-06020-A0 |
— | ||
|
67913
|
67913
67913-06020-B0
Plate, Front Door Scuff, Rh
[06.1998 - 12.2002] ACV20,MCV20,SXV20 SHADOW GRAY,TRIM1# |
67913-06020-B0 |
— | ||
|
67914
|
67914
67914-06020-A0
Plate, Front Door Scuff, Lh
[06.1998 - 12.2002] ACV20,MCV20,SXV20 IVORY,TRIM0# |
67914-06020-A0 |
— | ||
|
67914
|
67914
67914-06020-B0
Plate, Front Door Scuff, Lh
[06.1998 - 12.2002] ACV20,MCV20,SXV20 SHADOW GRAY,TRIM1# |
67914-06020-B0 |
— | ||
|
75877C
|
75877C
75877-AA010
Cover, Quarter Opening End, Rh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
75877-AA010 |
— | ||
|
75878C
|
75878C
75878-AA010
Cover, Quarter Opening End, Lh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
75878-AA010 |
— | ||
|
9006902029
|
9006902029
90069-02029 New Genuine Part |
90069-02029 |
US $3.35 |
||
|
9008046136
|
9008046136
90080-46136
New Genuine Part
|
90080-46136 |
— | ||
|
9008446017
|
9008446017
90084-46017 Clip(For Roof Console Box) |
90084-46017 |
US $0.35 |
||
|
9046710148
|
9046710148
90467-10148 Clip(For Cowl Side Trim) |
90467-10148 |
from US $0.87 |
||
|
9046804088
|
9046804088
90468-04088 Clip, Roof Headlining |
90468-04088 |
US $1.93 |
||
|
9046805076
|
9046805076
90468-05076
New Genuine Part
|
90468-05076 |
— | ||
