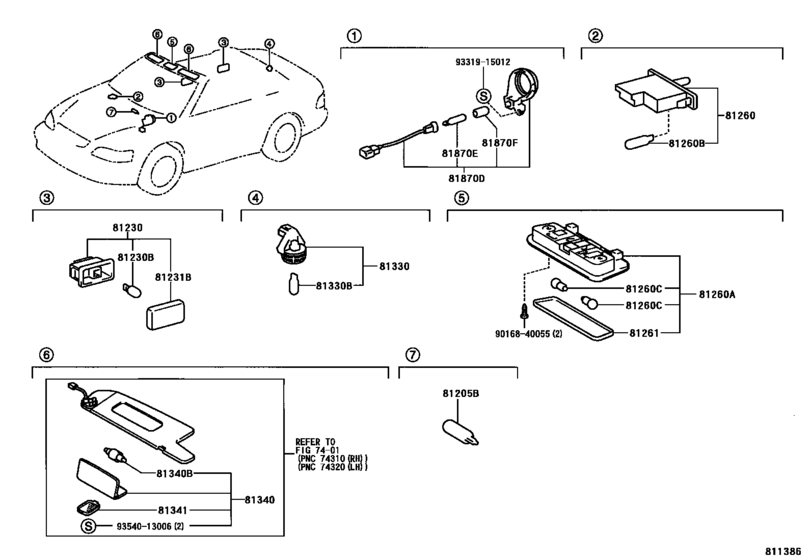

Interior Lamp ([02.2000 - ] (0002- )CVT) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81205B
|
81205B
90981-11014 Bulb, Position Indicator Lamp[06.1998 - 07.2002] ACV20,MCV20,SXV20 14V 1.4W |
90981-11014 |
from US $2.15 |
||
|
81230
|
81230
81230-30140 Lamp Assy, Courtesy[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
81230-30140 |
from US $13.07 |
||
|
81230B
|
81230B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT 12V 3.8W |
90981-11020 |
from US $3.05 |
||
|
81231B
|
81231B
81231-50010 Lens, Courtesy Lamp[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
81231-50010 |
from US $5.42 |
||
|
81260
|
81260
81260-33030 Lamp Assy, Glove Box[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
81260-33030 |
from US $12.22 |
||
|
81260A
|
81260A
81260-14080-A2
Lamp Assy, Map
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT IVORY,TRIM0# |
81260-14080-A2 |
— | ||
|
81260A
|
81260A
81260-14080-C0
Lamp Assy, Map
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT BLACK,TRIM1# |
81260-14080-C0 |
— | ||
| replacement | |||||
|
81260A
|
81260A
81260-14080-B6 Lamp Assy, Map[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT BLACK,TRIM1# |
81260-14080-B6 |
US $197.43 |
||
|
81260B
|
81260B
90981-11018 Bulb, Position Indicator Lamp[06.1998 - 07.2002] ACV20,MCV20,SXV20 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.01 |
||
|
81260C
|
81260C
90981-12005 Bulb, Room Lamp, No.1[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT 12V 8W |
90981-12005 |
from US $2.51 |
||
|
81261
|
81261
81261-14080 Lens, Room Lamp, No.1[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
81261-14080 |
US $29.47 |
||
|
81330
|
81330
81330-02010
Lamp Assy, Luggage Compartment, No.1
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
81330-02010 |
— | ||
|
81330B
|
81330B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[06.1998 - 07.2002] ACV20,MCV20,SXV20 12V 3.8W |
90981-11020 |
from US $3.05 |
||
|
81340
|
81340
81350-AC030-A2
Lamp Assy, Vanity
[06.1998 - 12.2002] ACV20,MCV20,SXV20 IVORY,TRIM0# |
81350-AC030-A2 |
— | ||
|
81340
|
81340
81350-AC030-C0
Lamp Assy, Vanity
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT BLACK,TRIM1# |
81350-AC030-C0 |
— | ||
|
81340B
|
81340B
90084-98013 Bulb (For Vanity Lamp)[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
90084-98013 |
US $12.81 |
||
|
81341
|
81341
81351-AC010 Lens, Surgical Lamp[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
81351-AC010 |
US $11.07 |
||
|
81870D
|
81870D
81870-33030
Lamp Assy, Key Cylinder
[02.2000 - 12.2002] ACV20,SXV20 |
81870-33030 |
— | ||
|
81870E
|
81870E
90981-11014 Bulb, Position Indicator Lamp[08.2000 - 07.2002] ACV20,MCV20;SXV20..CP..ATM 14V 1.4W |
90981-11014 |
from US $2.15 |
||
|
81870F
|
81870F
84998-10070 Cap, Key Cylinder Lamp Bulb[08.2000 - 07.2002] ACV20,MCV20;SXV20..CP..ATM |
84998-10070 |
US $4.30 |
||
|
9016840055
|
9016840055
90168-40055 New Genuine Part |
90168-40055 |
US $1.08 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
|
9354013006
|
9354013006
93540-13006 New Genuine Part |
93540-13006 |
US $2.48 |
||
