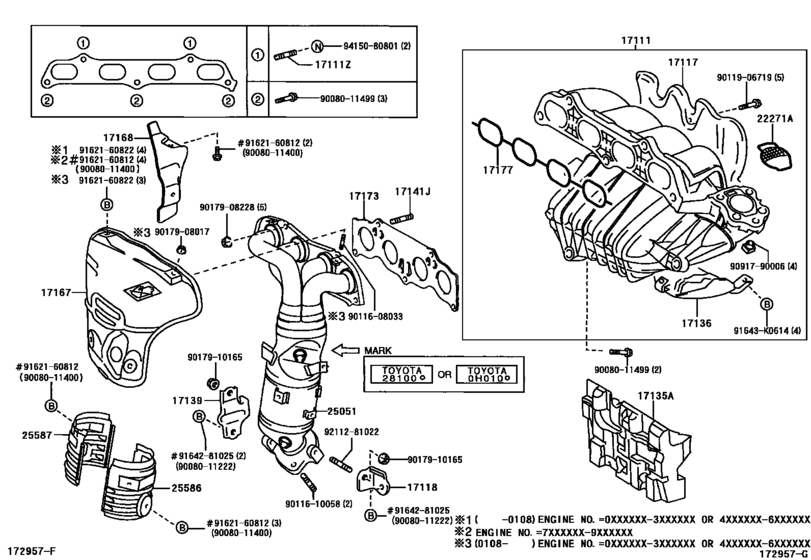

Manifold ([07.2001 - ] (0107- )2AZFE) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17120-0H010
Manifold, Intake
[07.2001 - 12.2002] 2AZFE..ACV20 |
17120-0H010 |
— | ||
|
17111Z
|
17111Z
90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head)[07.2001 - 12.2002] 2AZFE..ACV20 |
90126-08026 |
from US $2.32 |
||
|
17117
|
17117
17117-0H010
Insulator, Intake Pipe
[07.2001 - 12.2002] 2AZFE..ACV20 |
17117-0H010 |
— | ||
|
17118
|
17118
17118-28060
Stay, Manifold
[07.2001 - 12.2002] 2AZFE..ACV20 |
17118-28060 |
— | ||
|
17135A
|
17135A
17135-0H010
Insulator, Intake Manifold, No.1
[07.2001 - 12.2002] 2AZFE..ACV20 |
17135-0H010 |
— | ||
| replacement | |||||
|
17135A
|
17135A
17135-0H011
Insulator, Intake Manifold, No.1
[07.2001 - 12.2002] 2AZFE..ACV20 |
17135-0H011 |
— | ||
|
17136
|
17136
17136-28020 Insulator, Intake Manifold, No.2[07.2001 - 12.2002] 2AZFE..ACV20 |
17136-28020 |
US $92.60 |
||
|
17139
|
17139
17139-28030 Stay, Manifold, No.2MANIFOLD, NO.2 [07.2001 - 08.2002] 2AZFE..ACV20 MARK OF CONVERTER = 0HXXX |
17139-28030 |
US $34.94 |
||
|
17139
|
17139
17139-28040 Stay, Manifold, No.2[07.2001 - 08.2002] 2AZFE..ACV20 MARK OF CONVERTER = 28XXX |
17139-28040 |
US $34.94 |
||
|
17141J
|
17141J
90126-08037 Bolt, Stud(For Oil Strainer)[07.2001 - 12.2002] 2AZFE..ACV20 |
90126-08037 |
from US $3.59 |
||
|
17167
|
17167
17167-0H010
Insulator, Exhaust Manifold Heat, No.1
[02.2002 - 12.2002] 2AZFE..ACV20 (L) |
17167-0H010 |
— | ||
| replacement | |||||
|
17167
|
17167
17167-28040 Insulator, Exhaust Manifold Heat, No.1[02.2002 - 12.2002] 2AZFE..ACV20 (L) |
17167-28040 |
from US $91.98 |
||
|
17167
|
17167
17167-28040 Insulator, Exhaust Manifold Heat, No.1[07.2001 - 12.2002] 2AZFE..ACV20 (J) |
17167-28040 |
from US $91.98 |
||
|
17168
|
17168
17168-0H010
Insulator, Exhaust Manifold Heat, No.2
[07.2001 - 12.2002] 2AZFE..ACV20 (L) |
17168-0H010 |
— | ||
|
17168
|
17168
17168-28010 Insulator, Exhaust Manifold Heat, No.2[07.2001 - 11.2002] 2AZFE..ACV20 (J) |
17168-28010 |
US $30.14 |
||
| replacement | |||||
|
17168
|
17168
17168-28011 Insulator, Exhaust Manifold Heat, No.2[07.2001 - 11.2002] 2AZFE..ACV20 (J) |
17168-28011 |
US $31.62 |
||
|
17168
|
17168
17168-28011 Insulator, Exhaust Manifold Heat, No.2[11.2002 - 12.2002] 2AZFE..ACV20 (J) |
17168-28011 |
US $31.62 |
||
|
17173
|
17173
17173-28010 Gasket, Exhaust Manifold To Head[07.2001 - 12.2002] 2AZFE..ACV20 |
17173-28010 |
from US $18.58 |
||
|
17177
|
17177
17177-0H010
Gasket, Intake Manifold To Head, No.1
[07.2001 - 12.2002] 2AZFE..ACV20 |
17177-0H010 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-0H020
Gasket, Intake Manifold To Head, No.1
[07.2001 - 12.2002] 2AZFE..ACV20 |
17177-0H020 |
— | ||
|
22271A
|
22271A
22271-0H010
Gasket, Throttle Body
[07.2001 - 12.2002] 2AZFE..ACV20 |
22271-0H010 |
— | ||
|
25051
|
25051
25051-0H010
Converter Sub-Assy, Exhaust Manifold
[07.2001 - 08.2002] 2AZFE..ACV20 MARK OF CONVERTER = 0HXXX |
25051-0H010 |
— | ||
| replacements | |||||
|
25051
|
25051
17139-28040 Stay, Manifold, No.2[07.2001 - 08.2002] 2AZFE..ACV20 MARK OF CONVERTER = 0HXXX |
17139-28040 |
US $34.94 |
||
|
25051
|
25051
25051-0H011
Converter Sub-Assy, Exhaust Manifold
[07.2001 - 08.2002] 2AZFE..ACV20 MARK OF CONVERTER = 0HXXX |
25051-0H011 |
— | ||
|
25051
|
25051
25051-0H011
Converter Sub-Assy, Exhaust Manifold
[08.2002 - 12.2002] 2AZFE..ACV20 MARK OF CONVERTER = 0HXXX |
25051-0H011 |
— | ||
|
25051
|
25051
25051-28101 Converter Sub-Assy, Exhaust Manifold[07.2001 - 12.2002] 2AZFE..ACV20 MARK OF CONVERTER = 28XXX |
25051-28101 |
US $355.31 |
||
|
25586
|
25586
25586-0H010
Insulator, Manifold Converter, No.1
[07.2001 - 12.2002] 2AZFE..ACV20 (L) |
25586-0H010 |
— | ||
|
25586
|
25586
25586-28030 Insulator, Manifold Converter, No.1[07.2001 - 12.2002] 2AZFE..ACV20 (J) |
25586-28030 |
US $35.67 |
||
| replacement | |||||
|
25586
|
25586
25586-28031 Insulator, Manifold Converter, No.1[07.2001 - 12.2002] 2AZFE..ACV20 (J) |
25586-28031 |
US $37.56 |
||
|
25587
|
25587
25587-0H010
Insulator, Manifold Converter, No.2
[07.2001 - 12.2002] 2AZFE..ACV20 (L) |
25587-0H010 |
— | ||
|
25587
|
25587
25587-28040 Insulator, Manifold Converter, No.2[07.2001 - 12.2002] 2AZFE..ACV20 (J) |
25587-28040 |
US $34.80 |
||
| replacement | |||||
|
25587
|
25587
25587-28041 Insulator, Manifold Converter, No.2[07.2001 - 12.2002] 2AZFE..ACV20 (J) |
25587-28041 |
US $28.68 |
||
|
91643K0614
|
91643K0614
91643-K0614 New Genuine Part |
91643-K0614 |
US $1.46 |
||
|
9008011222
|
9008011222
90080-11222
New Genuine Part
|
90080-11222 |
— | ||
|
9008011400
|
9008011400
90080-11400
New Genuine Part
|
90080-11400 |
— | ||
| replacement | |||||
|
9008011400
|
9008011400
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
9008011499
|
9008011499
90080-11499
New Genuine Part
|
90080-11499 |
— | ||
|
9011608033
|
9011608033
90116-08033 Bolt, Stud(For Air Cleaner) |
90116-08033 |
US $2.18 |
||
|
9011610058
|
9011610058
90116-10058 Bolt, Stud(For Manifold Extension) |
90116-10058 |
from US $2.26 |
||
|
9011906719
|
9011906719
90119-06719 New Genuine Part |
90119-06719 |
US $1.97 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.76 |
||
|
9017908228
|
9017908228
90179-08228 NUT |
90179-08228 |
from US $0.80 |
||
|
9017910165
|
9017910165
90179-10165 NUT |
90179-10165 |
from US $0.95 |
||
|
9091790006
|
9091790006
90917-90006 New Genuine Part |
90917-90006 |
US $3.06 |
||
|
9162160812
|
9162160812
91621-60812
BOLTWWASHER
|
91621-60812 |
— | ||
| replacement | |||||
|
9162160812
|
9162160812
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
9162160822
|
9162160822
91621-60822 Bolt, W/washer(For Repair Actuator Set) |
91621-60822 |
US $1.61 |
||
|
9164281025
|
9164281025
91642-81025 BOLT WWASHER |
91642-81025 |
from US $0.95 |
||
|
9211281022
|
9211281022
92112-81022 BOLT STUD |
92112-81022 |
US $1.43 |
||
|
9415080801
|
9415080801
94150-80801 Nut |
94150-80801 |
US $1.43 |
||
