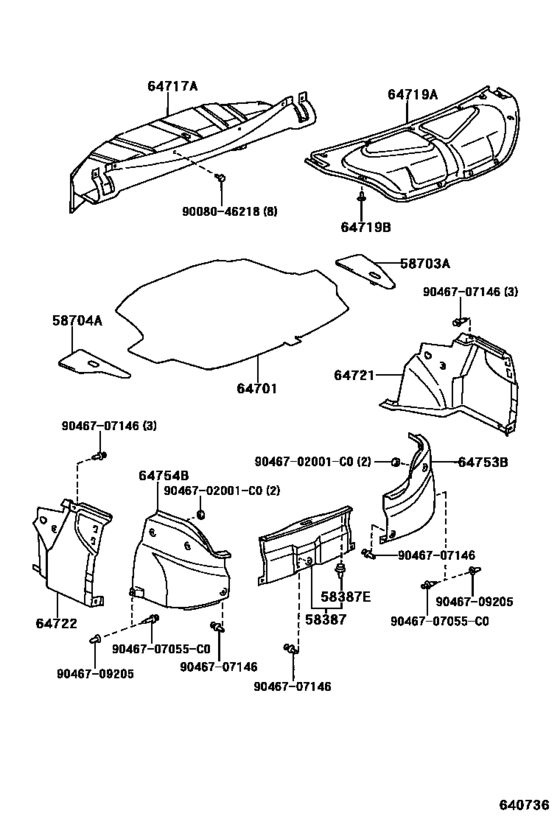

Package Tray Panel & Luggage Compartment Mat ([02.2000 - ] (0002- )CVT) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58387
|
58387
58387-06040
Plate, Rear Floor Finish
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58387-06040 |
— | ||
|
58387E
|
58387E
67771-12050 Clip, Radiator Grille[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
67771-12050 |
from US $1.44 |
||
|
58703A
|
58703A
58703-06030
Cover Sub-Assy, Luggage Compartment Side, Rh
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58703-06030 |
— | ||
|
58704A
|
58704A
58704-06030
Cover Sub-Assy, Luggage Compartment Side, Lh
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58704-06030 |
— | ||
|
64701
|
64701
64701-AA010-C0
Mat Sub-Assy, Luggage Compartment
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT BLACK,TRIM0#,1# |
64701-AA010-C0 |
— | ||
|
64717A
|
64717A
64717-AA020
Cover, Luggage Compartment Trim, Front
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
64717-AA020 |
— | ||
|
64719A
|
64719A
64719-AA040
Cover, Luggage Compartment Door
[08.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
64719-AA040 |
— | ||
|
64719A
|
64719A
64719-AA060-C0
Cover, Luggage Compartment Door
[07.2001 - 12.2002] ACV20,MCV20..CVT BLACK,TRIM0#,1# |
64719-AA060-C0 |
— | ||
|
64719B
|
64719B
90467-06175 Clip(For Luggage Compartment Door)[08.2000 - 07.2002] ACV20,MCV20,SXV20 |
90467-06175 |
US $3.94 |
||
|
64721
|
64721
64721-AA020
Cover, Luggage Compartment Trim, Inner Rh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
64721-AA020 |
— | ||
|
64722
|
64722
64722-AA020
Cover, Luggage Compartment Trim, Inner Lh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
64722-AA020 |
— | ||
|
64753B
|
64753B
64753-06020
Plate, Rear Floor Finish Side, Rh
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
64753-06020 |
— | ||
|
64754B
|
64754B
64754-06010
Plate, Rear Floor Finish Side, Lh
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
64754-06010 |
— | ||
|
9008046218
|
9008046218
90080-46218 New Genuine Part |
90080-46218 |
US $1.75 |
||
|
9046702001C0
|
9046702001C0
90467-02001-C0 Clip(For Luggage Compartment Trim Inner Cover) |
90467-02001-C0 |
US $3.20 |
||
|
9046707055C0
|
9046707055C0
90467-07055-C0 Clip(For Luggage Compartment Trim Front Cover) |
90467-07055-C0 |
US $2.33 |
||
|
9046707146
|
9046707146
90467-07146 Clip |
90467-07146 |
from US $1.46 |
||
|
9046709205
|
9046709205
90467-09205 CLIP |
90467-09205 |
US $1.61 |
