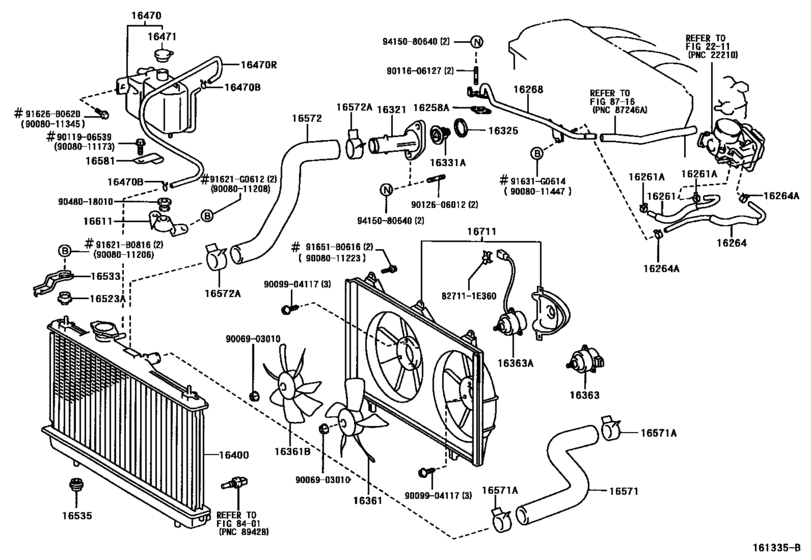

Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16258A
|
16258A
16258-0H010
Gasket(For Heater Return)
[07.2001 - 12.2002] 2AZFE..ACV20 (L) |
16258-0H010 |
— | ||
|
16258A
|
16258A
16258-28010 Gasket(For Heater Return)[07.2001 - 12.2002] 2AZFE..ACV20 (J) |
16258-28010 |
US $6.12 |
||
| replacement | |||||
|
16258A
|
16258A
16258-28030 Gasket(For Heater Return)[07.2001 - 12.2002] 2AZFE..ACV20 (J) |
16258-28030 |
from US $2.47 |
||
|
16261
|
16261
16261-0H010
Hose, Water By-Pass
[07.2001 - 12.2002] 2AZFE..ACV20 |
16261-0H010 |
— | ||
|
16261A
|
16261A
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
[07.2001 - 12.2002] 2AZFE..ACV20 |
96135-41300 |
— | ||
| replacement | |||||
|
16261A
|
16261A
96135-51300 Clamp, Hose[07.2001 - 12.2002] 2AZFE..ACV20 |
96135-51300 |
from US $1.86 |
||
|
16264
|
16264
16264-0H010
Hose, Water By-Pass, No.2
[07.2001 - 12.2002] 2AZFE..ACV20 |
16264-0H010 |
— | ||
|
16264A
|
16264A
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
[07.2001 - 12.2002] 2AZFE..ACV20 |
96135-41300 |
— | ||
| replacement | |||||
|
16264A
|
16264A
96135-51300 Clamp, Hose[07.2001 - 12.2002] 2AZFE..ACV20 |
96135-51300 |
from US $1.86 |
||
|
16268
|
16268
16268-0H010
Pipe, Water By-Pass, No.1
[07.2001 - 12.2002] 2AZFE..ACV20 ENGINE NO.=7XXXXXX-9XXXXXX |
16268-0H010 |
— | ||
|
16268
|
16268
16268-28010 Pipe, Water By-Pass, No.1[07.2001 - 12.2002] 2AZFE..ACV20 ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX |
16268-28010 |
from US $30.42 |
||
|
16321
|
16321
16321-0H010
Inlet, Water
[07.2001 - 12.2002] 2AZFE..ACV20 (L) |
16321-0H010 |
— | ||
| replacement | |||||
|
16321
|
16321
16321-0H011
Inlet, Water
[07.2001 - 12.2002] 2AZFE..ACV20 (L) |
16321-0H011 |
— | ||
|
16321
|
16321
16321-28020 Inlet, Water[07.2001 - 12.2002] 2AZFE..ACV20 (J) |
16321-28020 |
from US $27.34 |
||
|
16325
|
16325
16325-62010 Gasket, Water Inlet Housing, No.1[07.2001 - 12.2002] 2AZFE..ACV20 |
16325-62010 |
from US $3.95 |
||
|
16331A
|
16331A
90916-03084
Thermostat
[07.2001 - 12.2002] 2AZFE..ACV20 *WAX 82-95 |
90916-03084 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03129 Thermostat[07.2001 - 12.2002] 2AZFE..ACV20 *WAX 82-95 |
90916-03129 |
from US $19.38 |
||
|
16361
|
16361
16361-03070
Fan
[07.2001 - 12.2002] 2AZFE..ACV20 |
16361-03070 |
— | ||
| replacement | |||||
|
16361
|
16361
16361-03071
Fan
[07.2001 - 12.2002] 2AZFE..ACV20 |
16361-03071 |
— | ||
|
16361B
|
16361B
16361-03080
Fan, No.2
[07.2001 - 12.2002] 2AZFE..ACV20 |
16361-03080 |
— | ||
| replacement | |||||
|
16361B
|
16361B
16361-03081
Fan, No.2
[07.2001 - 12.2002] 2AZFE..ACV20 |
16361-03081 |
— | ||
|
16363
|
16363
16363-0H010
Motor, Cooling Fan
[07.2001 - 12.2002] 2AZFE..ACV20 |
16363-0H010 |
— | ||
|
16363A
|
16363A
16363-03100
Motor, Cooling Fan
[07.2001 - 12.2002] 2AZFE..ACV20 |
16363-03100 |
— | ||
|
16400
|
16400
16400-0H050
Radiator Assy
[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16400-0H050 |
— | ||
|
16470
|
16470
16470-03081
Tank Assy, Radiator Reserve
[07.2001 - 12.2002] 2AZFE..ACV20 |
16470-03081 |
— | ||
|
16470B
|
16470B
90467-12058 Clamp Or Clip(For Radiator Reserve Tank Hose)[07.2001 - 12.2002] 2AZFE..ACV20 |
90467-12058 |
from US $0.70 |
||
|
16470R
|
16470R
16472-03060
Hose, No.2(For Radiator Reserve Tank)
[07.2001 - 12.2002] 2AZFE..ACV20 |
16472-03060 |
— | ||
|
16471
|
16471
16471-03010 Cap Sub-Assy, Reserve Tank[07.2001 - 12.2002] 2AZFE..ACV20 |
16471-03010 |
US $29.35 |
||
|
16523A
|
16523A
16523-03010
Cushion, Radiator Support
[07.2001 - 12.2002] 2AZFE..ACV20 |
16523-03010 |
— | ||
|
16533
|
16533
16533-74320 Support, Radiator, Upper[07.2001 - 12.2002] 2AZFE..ACV20 |
16533-74320 |
US $25.19 |
||
|
16535
|
16535
16535-03050
Support, Radiator, Lower
[07.2001 - 12.2002] 2AZFE..ACV20 |
16535-03050 |
— | ||
|
16571
|
16571
16571-0H030
Hose, Radiator, Inlet
[07.2001 - 12.2002] 2AZFE..ACV20 |
16571-0H030 |
— | ||
|
16571A
|
16571A
90467-37002
Clip(For Water Inlet Hose)
[07.2001 - 04.2002] 2AZFE..ACV20 |
90467-37002 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37005 Clip(For Water Inlet Hose)[07.2001 - 04.2002] 2AZFE..ACV20 |
90467-37005 |
from US $3.88 |
||
|
16571A
|
16571A
90467-37005 Clip(For Water Inlet Hose)[04.2002 - 12.2002] 2AZFE..ACV20 |
90467-37005 |
from US $3.88 |
||
|
16572
|
16572
16572-0H020
Hose, Radiator, Outlet
[07.2001 - 12.2002] 2AZFE..ACV20 |
16572-0H020 |
— | ||
|
16572A
|
16572A
90467-37002
Clip(For Water Inlet Hose)
[07.2001 - 04.2002] 2AZFE..ACV20 |
90467-37002 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-37005 Clip(For Water Inlet Hose)[07.2001 - 04.2002] 2AZFE..ACV20 |
90467-37005 |
from US $3.88 |
||
|
16572A
|
16572A
90467-37005 Clip(For Water Inlet Hose)[04.2002 - 12.2002] 2AZFE..ACV20 |
90467-37005 |
from US $3.88 |
||
|
16581
|
16581
90461-10101 Clamp, Hose(For Water Hose)[07.2001 - 12.2002] 2AZFE..ACV20..USA |
90461-10101 |
US $3.79 |
||
|
16611
|
16611
16611-03020
Bracket, Radiator Reserve Tank
[07.2001 - 12.2002] 2AZFE..ACV20 |
16611-03020 |
— | ||
|
16711
|
16711
16711-0H020
Shroud, Fan
[07.2001 - 12.2002] 2AZFE..ACV20 |
16711-0H020 |
— | ||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.82 |
||
|
91621G0612
|
91621G0612
91621-G0612 New Genuine Part |
91621-G0612 |
US $2.15 |
||
|
91626B0620
|
91626B0620
91626-B0620 BOLT WWASHER |
91626-B0620 |
US $1.46 |
||
| replacement | |||||
|
91626B0620
|
91626B0620
91621-B0616 Bolt |
91621-B0616 |
from US $0.76 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.65 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.82 |
||
|
827111E360
|
827111E360
82711-1E360 Clamp, Wiring Harness |
82711-1E360 |
US $1.08 |
||
|
9006903010
|
9006903010
90069-03010 NUT |
90069-03010 |
US $2.18 |
||
|
9008011173
|
9008011173
90080-11173
New Genuine Part
|
90080-11173 |
— | ||
|
9008011206
|
9008011206
90080-11206
New Genuine Part
|
90080-11206 |
— | ||
|
9008011208
|
9008011208
90080-11208
New Genuine Part
|
90080-11208 |
— | ||
|
9008011223
|
9008011223
90080-11223 New Genuine Part |
90080-11223 |
US $1.16 |
||
|
9008011345
|
9008011345
90080-11345
New Genuine Part
|
90080-11345 |
— | ||
|
9008011447
|
9008011447
90080-11447
New Genuine Part
|
90080-11447 |
— | ||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
from US $0.61 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.91 |
||
|
9011906539
|
9011906539
90119-06539 New Genuine Part |
90119-06539 |
US $1.38 |
||
|
9012606012
|
9012606012
90126-06012 STUD, HEX LOBULAR |
90126-06012 |
from US $1.18 |
||
|
9048018010
|
9048018010
90480-18010 Grommet, Radiator Reserve Tank Hose |
90480-18010 |
from US $2.09 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $0.72 |
||
