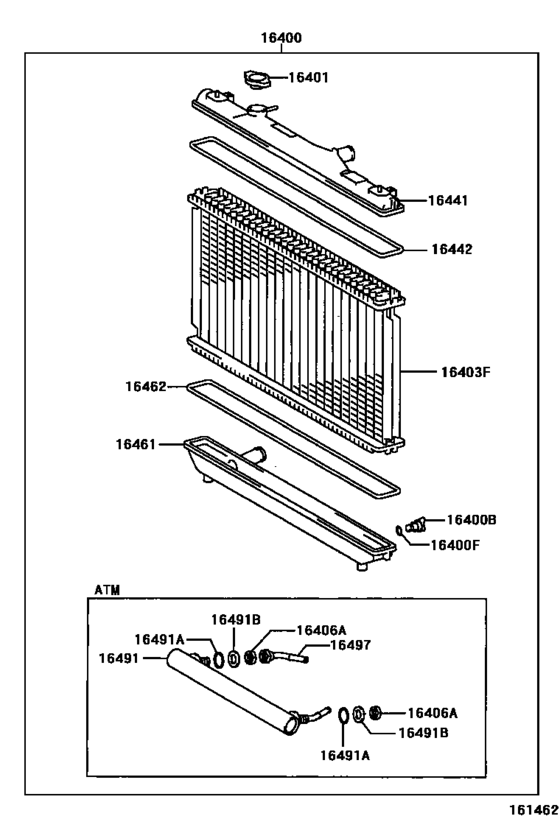

Radiator & Water Outlet ([07.2001 - ] (0107- )2AZFE) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16400
|
16400
16400-0H050
Radiator Assy
[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16400-0H050 |
— | ||
|
16400B
|
16400B
23322-54010 Plug,air(For Oil Cooler Drain Cock)[07.2001 - 12.2002] 2AZFE..ACV20 |
23322-54010 |
from US $4.73 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[07.2001 - 12.2002] 2AZFE..ACV20 |
16492-21050 |
from US $2.13 |
||
|
16401
|
16401
16401-62100
Cap Sub-Assy, Radiator
[07.2001 - 12.2002] 2AZFE..ACV20 |
16401-62100 |
— | ||
| replacements | |||||
|
16401
|
16401
16401-31520
Radiator Cap Sub-Assy (108kPa)
[07.2001 - 12.2002] 2AZFE..ACV20 |
16401-31520 |
— | ||
|
16401
|
16401
16401-36020 Cap Sub-Assy, Radiator[07.2001 - 12.2002] 2AZFE..ACV20 |
16401-36020 |
from US $16.31 |
||
|
16403F
|
16403F
16403-0H030
Core Sub-Assy, Radiator
[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16403-0H030 |
— | ||
|
16406A
|
16406A
16406-62060
Support(For Oil Cooler)
[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16406-62060 |
— | ||
|
16441
|
16441
16441-0H050
Tank, Radiator, Upper
[07.2001 - 12.2002] 2AZFE..ACV20 |
16441-0H050 |
— | ||
|
16442
|
16442
16442-03140
Ring, O(For Radiator Upper Tank)
[07.2001 - 12.2002] 2AZFE..ACV20 |
16442-03140 |
— | ||
|
16461
|
16461
16461-0H050
Tank, Radiator, Lower
[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16461-0H050 |
— | ||
|
16462
|
16462
16442-0A190
Ring, O(For Radiator Upper Tank)
[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16442-0A190 |
— | ||
|
16491
|
16491
16491-03150 Cooler, Oil(For Atm)[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16491-03150 |
US $126.67 |
||
|
16491A
|
16491A
16492-07120
Ring, O(For Atm Oil Cooler)
[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16492-07120 |
— | ||
|
16491B
|
16491B
16493-62060 Washer, Plate(For Atm Oil Cooler)[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16493-62060 |
US $2.18 |
||
|
16497
|
16497
16495-0H050
Inlet Sub-Assy
[07.2001 - 12.2002] 2AZFE..ACV20..ATM |
16495-0H050 |
— | ||
