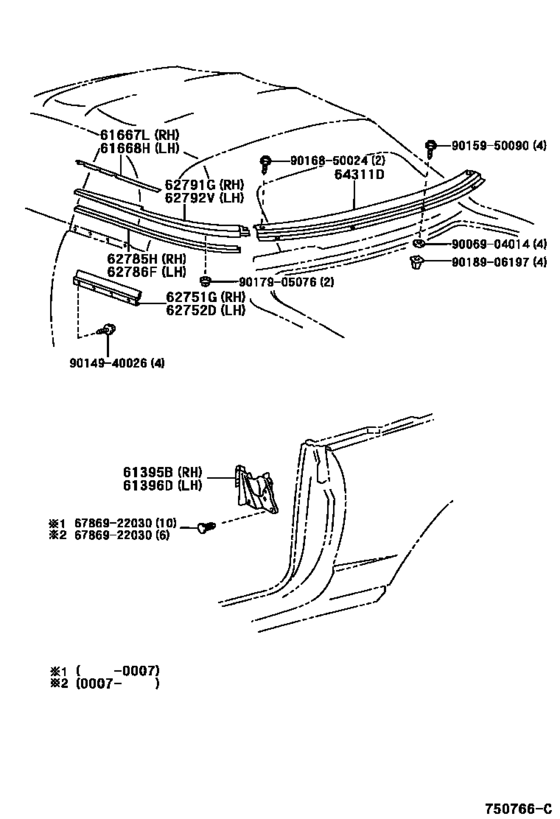

Side Moulding ([02.2000 - ] (0002- )CVT) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61395B
|
61395B
61395-AA010
Dust Proof, Center Pillar, Rh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
61395-AA010 |
— | ||
|
61396D
|
61396D
61396-AA010
Dust Proof, Center Pillar, Lh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
61396-AA010 |
— | ||
|
61667L
|
61667L
61667-AA010
Spacer, Quarter Panel, No.1
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
61667-AA010 |
— | ||
|
61668H
|
61668H
61668-AA010
Spacer, Quarter Panel, No.2
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
61668-AA010 |
— | ||
|
62751G
|
62751G
62751-AA010
Weatherstrip, Quarter Window Glass, Outer Rh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62751-AA010 |
— | ||
|
62752D
|
62752D
62752-AA010
Weatherstrip, Quarter Window Glass, Outer Lh
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62752-AA010 |
— | ||
|
62785H
|
62785H
62785-AA010
Spacer, Quarter Window Glass
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62785-AA010 |
— | ||
|
62786F
|
62786F
62786-AA010
Spacer, Quarter Window Glass, No.2
[02.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62786-AA010 |
— | ||
|
62791G
|
62791G
62791-AA031
Moulding, Quarter Window, Upper Rh
[05.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62791-AA031 |
— | ||
|
62792V
|
62792V
62792-AA031
Moulding, Quarter Window, Upper Lh
[05.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
62792-AA031 |
— | ||
|
64311D
|
64311D
64311-AA011
Moulding, Back Belt
[05.2000 - 12.2002] ACV20,MCV20,SXV20..CVT |
64311-AA011 |
— | ||
|
6786922030
|
6786922030
67869-22030 Clip,(For Removable Roof Weatherstrip) |
67869-22030 |
US $2.87 |
||
|
9006904014
|
9006904014
90069-04014 New Genuine Part |
90069-04014 |
US $1.89 |
||
|
9014940026
|
9014940026
90149-40026 New Genuine Part |
90149-40026 |
US $1.60 |
||
|
9015950090
|
9015950090
90159-50090 New Genuine Part |
90159-50090 |
US $4.30 |
||
|
9016850024
|
9016850024
90168-50024
New Genuine Part
|
90168-50024 |
— | ||
| replacement | |||||
|
9016850024
|
9016850024
90168-50013 SCREW |
90168-50013 |
US $3.05 |
||
|
9017905076
|
9017905076
90179-05076
NUT
|
90179-05076 |
— | ||
| replacement | |||||
|
9017905076
|
9017905076
90179-05030 NUT |
90179-05030 |
US $2.15 |
||
|
9018906197
|
9018906197
90189-06197 GROMMET SCREW |
90189-06197 |
from US $0.72 |
||
