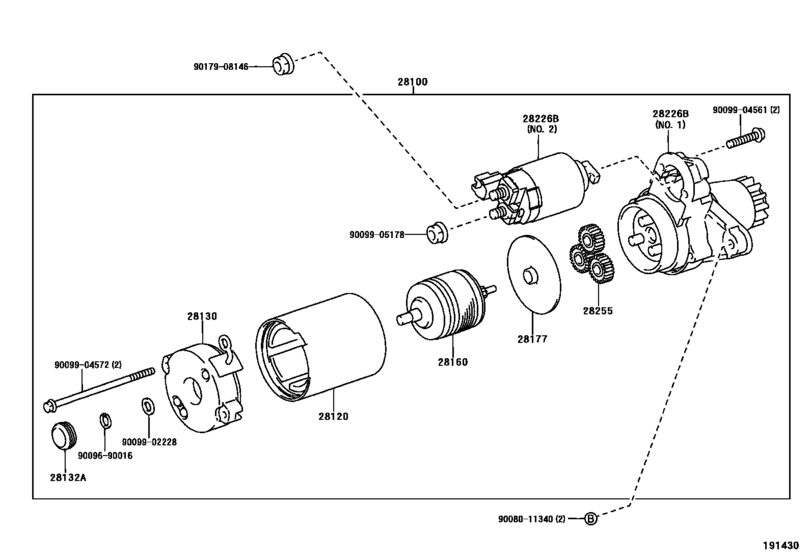

Starter ([07.2001 - ] 12V 1.6KW (0107- )2AZFE) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28100
|
28100
28100-28041
Starter Assy
[07.2001 - 12.2002] 2AZFE..ACV20 12V 1.6KW |
28100-28041 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-28042 Starter Assy[07.2001 - 12.2002] 2AZFE..ACV20 12V 1.6KW |
28100-28042 |
from US $521.28 |
||
|
28120
|
28120
28120-28040
Yoke Assy, Starter
[07.2001 - 12.2002] 2AZFE..ACV20 |
28120-28040 |
— | ||
| replacement | |||||
|
28120
|
28120
28120-28060
Yoke Assy, Starter
[07.2001 - 12.2002] 2AZFE..ACV20 |
28120-28060 |
— | ||
|
28130
|
28130
28130-28040 Frame Assy, Starter Commutator End[07.2001 - 12.2002] 2AZFE..ACV20 |
28130-28040 |
from US $13.68 |
||
|
28132A
|
28132A
28132-28040 Cover, Starter Bearing(For Drive Housing)[07.2001 - 12.2002] 2AZFE..ACV20 |
28132-28040 |
from US $1.75 |
||
|
28160
|
28160
28160-28040 Armature Assy, Starter[07.2001 - 12.2002] 2AZFE..ACV20 |
28160-28040 |
from US $122.13 |
||
|
28177
|
28177
28177-28040 Plate(For Starter Armature)[07.2001 - 12.2002] 2AZFE..ACV20 |
28177-28040 |
US $4.19 |
||
|
28226B
|
28226B
28226-28041 Starter Kit, Battery Terminal[07.2001 - 12.2002] 2AZFE..ACV20 NO.1 |
28226-28041 |
US $198.87 |
||
|
28226B
|
28226B
28226-28050
Starter Kit, Repair Service
[07.2001 - 05.2002] 2AZFE..ACV20 NO.2 |
28226-28050 |
— | ||
| replacement | |||||
|
28226B
|
28226B
28226-28051 Starter Kit, Repair Service[07.2001 - 05.2002] 2AZFE..ACV20 NO.2 |
28226-28051 |
from US $63.73 |
||
|
28226B
|
28226B
28226-28051 Starter Kit, Repair Service[05.2002 - 12.2002] 2AZFE..ACV20 NO.2 |
28226-28051 |
from US $63.73 |
||
|
28255
|
28255
28255-28040 Gear, Planet[07.2001 - 12.2002] 2AZFE..ACV20 |
28255-28040 |
from US $3.23 |
||
|
9008011340
|
9008011340
90080-11340
New Genuine Part
|
90080-11340 |
— | ||
|
9009690016
|
9009690016
90096-90016
Ring, Snap(For Venturi Throttle Valve Shaft)
|
90096-90016 |
— | ||
|
9009902228
|
9009902228
90099-02228 WASHER |
90099-02228 |
US $0.55 |
||
|
9009904561
|
9009904561
90099-04561
BOLT
|
90099-04561 |
— | ||
|
9009904572
|
9009904572
90099-04572
BOLT
|
90099-04572 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
