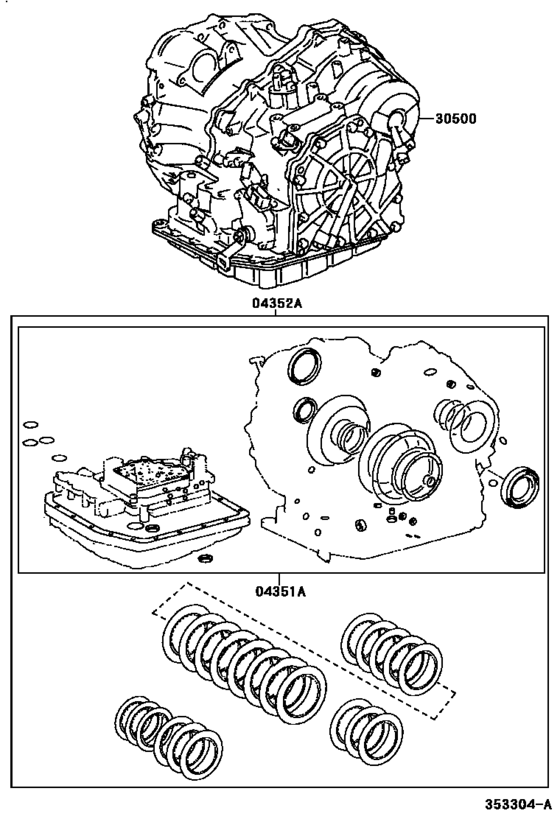

Transaxle Or Transmission Assy & Gasket Kit (Atm) ([07.2001 - ] U241E (0107- )ACV20..ATM) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04351A
|
04351A
04351-06020
Gasket Kit, Transaxle Overhaul(Atm)
[07.2001 - 09.2002] ACV20..ATM |
04351-06020 |
— | ||
| replacement | |||||
|
04351A
|
04351A
04351-06021
Gasket Kit, Transaxle Overhaul(Atm)
[07.2001 - 09.2002] ACV20..ATM |
04351-06021 |
— | ||
|
04351A
|
04351A
04351-06021
Gasket Kit, Transaxle Overhaul(Atm)
[09.2002 - 12.2002] ACV20..ATM |
04351-06021 |
— | ||
|
04352A
|
04352A
04352-06020
Kit, Transaxle Overhaul(Atm)
[07.2001 - 12.2002] ACV20..ATM |
04352-06020 |
— | ||
|
30500
|
30500
30500-06020
Transaxle Assy, Automatic
[07.2001 - 12.2002] ACV20..ATM |
30500-06020 |
— | ||
| replacements | |||||
|
30500
|
30500
30500-06021
Transaxle Assy, Automatic
[07.2001 - 12.2002] ACV20..ATM |
30500-06021 |
— | ||
|
30500
|
30500
84540-06010
Switch Assy, Neutral Start
[07.2001 - 12.2002] ACV20..ATM |
84540-06010 |
— | ||
