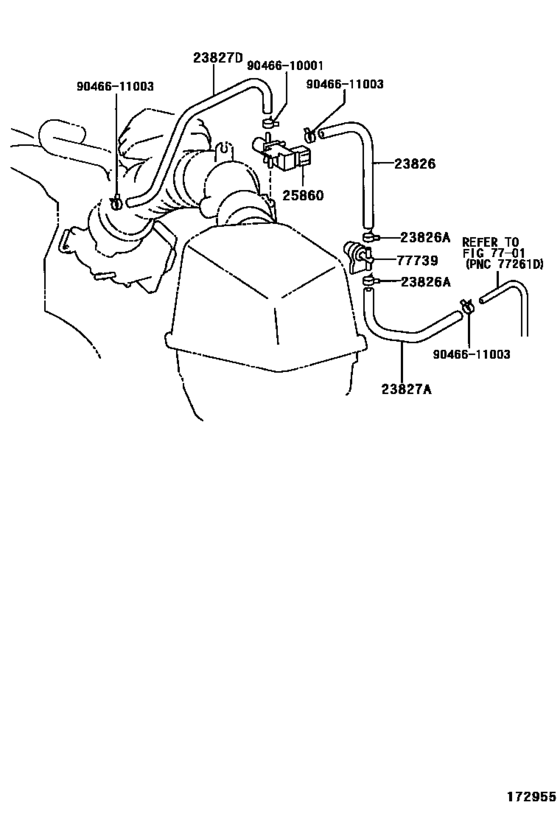

Vacuum Piping ([07.2001 - ] (0107- )2AZFE) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23826
|
23826
23826-0H030
Hose, Fuel Vapor Feed, No.1
[07.2001 - 12.2002] 2AZFE..ACV20 |
23826-0H030 |
— | ||
|
23826A
|
23826A
96132-51100 Clip (For Hose)[07.2001 - 12.2002] 2AZFE..ACV20 |
96132-51100 |
from US $1.39 |
||
|
23827A
|
23827A
23827-0H020
Hose, Fuel Vapor Feed, No.2
[07.2001 - 12.2002] 2AZFE..ACV20 |
23827-0H020 |
— | ||
|
23827D
|
23827D
23827-0H030
Hose, Fuel Vapor Feed, No.2
[07.2001 - 12.2002] 2AZFE..ACV20 |
23827-0H030 |
— | ||
|
25860
|
25860
25860-0H020
Valve Assy, Vacuum Switching, No.1
[07.2001 - 12.2002] 2AZFE..ACV20 |
25860-0H020 |
— | ||
|
77739
|
77739
77739-06010
Valve, Evap Service Port
[07.2001 - 12.2002] ACV20 |
77739-06010 |
— | ||
|
9046610001
|
9046610001
90466-10001
Clip Or Clamp(For Ventilation Hose)
|
90466-10001 |
— | ||
| replacement | |||||
|
9046610001
|
9046610001
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.44 |
||
|
9046611003
|
9046611003
90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose) |
90466-11003 |
from US $1.79 |
||
| replacement | |||||
|
9046611003
|
9046611003
90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1) |
90466-A0001 |
US $3.15 |
||
