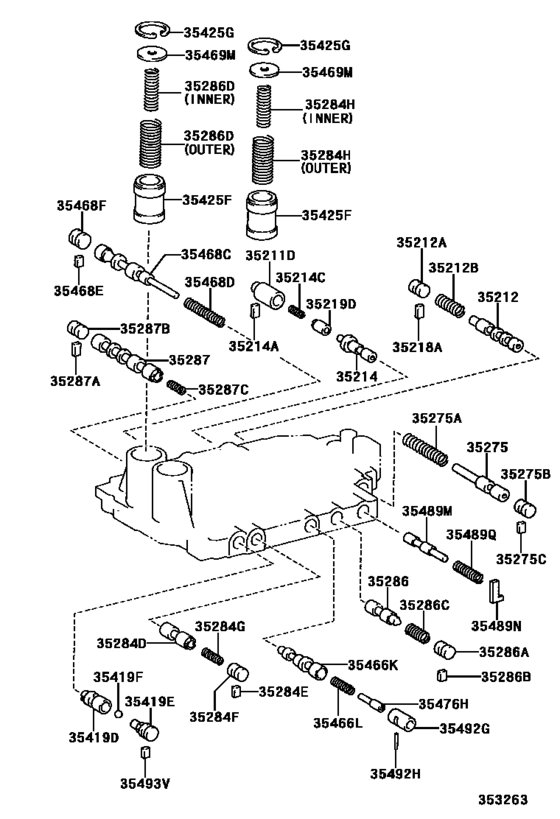

Valve Body & Oil Strainer (Atm) ([07.2001 - ] U241E (0107- )ACV20..ATM) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35211D
|
35211D
35211-21010 Sleeve, Lock Up Control Valve[07.2001 - 12.2002] ACV20..ATM |
35211-21010 |
US $8.60 |
||
|
35212
|
35212
35212-28010 Valve, Lock Up Relay[07.2001 - 12.2002] ACV20..ATM |
35212-28010 |
US $20.82 |
||
|
35212A
|
35212A
90339-04058 Seat, Plug (For Lock Up Relay Valve)[07.2001 - 12.2002] ACV20..ATM |
90339-04058 |
US $2.04 |
||
|
35212B
|
35212B
90080-50310
Spring, Compression (For Lock Up Relay Valve)
[07.2001 - 12.2002] ACV20..ATM |
90080-50310 |
— | ||
|
35214
|
35214
35214-28010
Valve, Lock Up Control
[07.2001 - 12.2002] ACV20..ATM |
35214-28010 |
— | ||
|
35214A
|
35214A
90282-03027 Key, Straight (For Lock Up Control Valve)[07.2001 - 12.2002] ACV20..ATM |
90282-03027 |
US $0.87 |
||
|
35214C
|
35214C
90080-50312
Spring, Compression (For Lock Up Control Valve)
[07.2001 - 12.2002] ACV20..ATM |
90080-50312 |
— | ||
|
35218A
|
35218A
90282-03027 Key, Straight (For Lock Up Control Valve)[07.2001 - 12.2002] ACV20..ATM |
90282-03027 |
US $0.87 |
||
|
35219D
|
35219D
35219-28010 Plunger, Lock Up Control Valve[07.2001 - 12.2002] ACV20..ATM |
35219-28010 |
US $6.99 |
||
|
35275
|
35275
35275-21010
Valve, Solenoid Modulator
[07.2001 - 12.2002] ACV20..ATM |
35275-21010 |
— | ||
|
35275A
|
35275A
90080-50306
Spring, Compression (For Solenoid Modulator Valve)
[07.2001 - 12.2002] ACV20..ATM |
90080-50306 |
— | ||
|
35275B
|
35275B
90339-04058 Seat, Plug (For Lock Up Relay Valve)[07.2001 - 12.2002] ACV20..ATM |
90339-04058 |
US $2.04 |
||
|
35275C
|
35275C
90282-03018 Key, Straight (For 2Nd Modulator Valve)[07.2001 - 12.2002] ACV20..ATM |
90282-03018 |
US $0.73 |
||
|
35284D
|
35284D
35284-28010 Valve, C-2 Exhaust Check[07.2001 - 12.2002] ACV20..ATM |
35284-28010 |
US $3.06 |
||
|
35284E
|
35284E
90282-03018 Key, Straight (For 2Nd Modulator Valve)[07.2001 - 12.2002] ACV20..ATM |
90282-03018 |
US $0.73 |
||
|
35284F
|
35284F
90339-04058 Seat, Plug (For Lock Up Relay Valve)[07.2001 - 12.2002] ACV20..ATM |
90339-04058 |
US $2.04 |
||
|
35284G
|
35284G
90080-50311
Spring, Compression (For C-2 Exhaust Check Valve)
[07.2001 - 12.2002] ACV20..ATM |
90080-50311 |
— | ||
|
35284H
|
35284H
90080-50298
Spring, Compression (For C-2 Lock Valve)
[07.2001 - 12.2002] ACV20..ATM OUTER |
90080-50298 |
— | ||
|
35284H
|
35284H
90080-50320
Spring, Compression (For C-2 Lock Valve)
[07.2001 - 12.2002] ACV20..ATM INNER |
90080-50320 |
— | ||
|
35286
|
35286
35286-28010
Valve, B-1 Lock
[07.2001 - 12.2002] ACV20..ATM |
35286-28010 |
— | ||
|
35286A
|
35286A
90339-04058 Seat, Plug (For Lock Up Relay Valve)[07.2001 - 12.2002] ACV20..ATM |
90339-04058 |
US $2.04 |
||
|
35286B
|
35286B
90282-03018 Key, Straight (For 2Nd Modulator Valve)[07.2001 - 12.2002] ACV20..ATM |
90282-03018 |
US $0.73 |
||
|
35286C
|
35286C
90080-50323
Spring, Compression (For B-1 Lock Valve)
[07.2001 - 12.2002] ACV20..ATM |
90080-50323 |
— | ||
|
35286D
|
35286D
90080-50318
Spring, Compression (For B-1 Lock Valve)
[07.2001 - 12.2002] ACV20..ATM INNER |
90080-50318 |
— | ||
|
35286D
|
35286D
90080-50319
Spring, Compression (For B-1 Lock Valve)
[07.2001 - 12.2002] ACV20..ATM OUTER |
90080-50319 |
— | ||
|
35287
|
35287
35287-28010 Valve, C-2 Lock[07.2001 - 12.2002] ACV20..ATM |
35287-28010 |
US $4.22 |
||
|
35287A
|
35287A
90282-03027 Key, Straight (For Lock Up Control Valve)[07.2001 - 12.2002] ACV20..ATM |
90282-03027 |
US $0.87 |
||
|
35287B
|
35287B
90339-04058 Seat, Plug (For Lock Up Relay Valve)[07.2001 - 12.2002] ACV20..ATM |
90339-04058 |
US $2.04 |
||
|
35287C
|
35287C
90080-50322
Spring, Compression (For C-2 Lock Valve)
[07.2001 - 12.2002] ACV20..ATM |
90080-50322 |
— | ||
|
35419D
|
35419D
35246-30010 Valve, Check, No.1[07.2001 - 12.2002] ACV20..ATM |
35246-30010 |
US $12.52 |
||
|
35419E
|
35419E
35247-30010 Valve, Check, No.2[07.2001 - 12.2002] ACV20..ATM |
35247-30010 |
US $13.98 |
||
|
35419F
|
35419F
90080-36191
Ball, Check Valve
[12.2001 - 12.2002] ACV20..ATM |
90080-36191 |
— | ||
|
35419F
|
35419F
90360-06004 Ball, Detent(For Gear Shift Head No.4)[07.2001 - 12.2001] ACV20..ATM |
90360-06004 |
from US $0.82 |
||
| replacement | |||||
|
35419F
|
35419F
90080-36191
Ball, Check Valve
[07.2001 - 12.2001] ACV20..ATM |
90080-36191 |
— | ||
|
35425F
|
35425F
35425-21010 Valve, Accumulator[07.2001 - 12.2002] ACV20..ATM |
35425-21010 |
US $13.54 |
||
| replacement | |||||
|
35425F
|
35425F
35425-28010 Valve, Accumulator[07.2001 - 12.2002] ACV20..ATM |
35425-28010 |
US $8.30 |
||
|
35425G
|
35425G
96151-02500 Ring, Snap(For Hydraulic Gear Motor)[07.2001 - 12.2002] ACV20..ATM |
96151-02500 |
US $1.31 |
||
|
35466K
|
35466K
35466-28010 Valve, Clutch Apply Control[07.2001 - 12.2002] ACV20..ATM |
35466-28010 |
US $5.39 |
||
|
35466L
|
35466L
90080-50321
Spring, Compression (For Clutch Apply Control Valve)
[07.2001 - 12.2002] ACV20..ATM |
90080-50321 |
— | ||
|
35468C
|
35468C
35468-21010 Valve, Secondary Regulator[07.2001 - 12.2002] ACV20..ATM |
35468-21010 |
US $23.44 |
||
|
35468D
|
35468D
90080-50316
Spring, Compression (For Secondary Regulator Valve)
[07.2001 - 12.2002] ACV20..ATM |
90080-50316 |
— | ||
|
35468E
|
35468E
90282-03018 Key, Straight (For 2Nd Modulator Valve)[07.2001 - 12.2002] ACV20..ATM |
90282-03018 |
US $0.73 |
||
|
35468F
|
35468F
90339-04060 Plug (For Reverse Control Valve)[07.2001 - 12.2002] ACV20..ATM |
90339-04060 |
US $2.04 |
||
|
35469M
|
35469M
35469-28030 Spacer (For Accumulator Valve)[07.2001 - 12.2002] ACV20..ATM |
35469-28030 |
US $3.79 |
||
|
35476H
|
35476H
35476-21010 Plunger, Clutch Apply Control Valve[07.2001 - 12.2002] ACV20..ATM |
35476-21010 |
US $7.43 |
||
|
35489M
|
35489M
35489-28010
Valve, B-3 Orifice Control
[07.2001 - 12.2002] ACV20..ATM |
35489-28010 |
— | ||
|
35489N
|
35489N
35478-21010 Key, Straight (For B-3 Orifice Control Valve)[07.2001 - 12.2002] ACV20..ATM |
35478-21010 |
US $1.60 |
||
|
35489Q
|
35489Q
90080-50317
Spring, Compression (For B-3 Orifice Control Valve)
[07.2001 - 12.2002] ACV20..ATM |
90080-50317 |
— | ||
|
35492G
|
35492G
35492-21010 Sleeve, Clutch Apply Control Valve[07.2001 - 12.2002] ACV20..ATM |
35492-21010 |
US $7.17 |
||
|
35492H
|
35492H
90250-03092 Pin, Straight (For Clutch Apply Control Valve)[07.2001 - 12.2002] ACV20..ATM |
90250-03092 |
US $1.60 |
||
|
35493V
|
35493V
90282-03018 Key, Straight (For 2Nd Modulator Valve)[07.2001 - 12.2002] ACV20..ATM |
90282-03018 |
US $0.73 |
||
