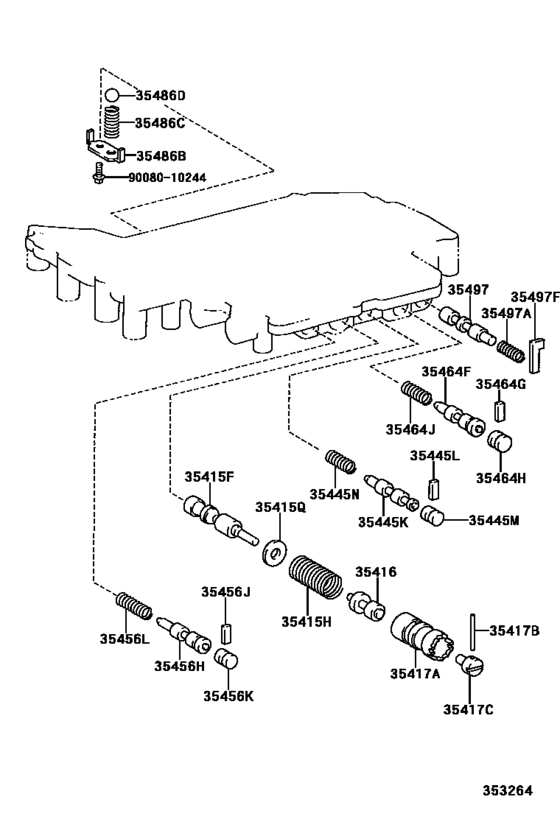

Valve Body & Oil Strainer (Atm) ([07.2001 - ] U241E (0107- )ACV20..ATM) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35415F
|
35415F
35415-28010 Valve, Primary Regulator[07.2001 - 12.2002] ACV20..ATM |
35415-28010 |
US $23.15 |
||
|
35415H
|
35415H
90080-50307
Spring, Compression (For Primary Regulator Valve)
[07.2001 - 12.2002] ACV20..ATM |
90080-50307 |
— | ||
|
35415Q
|
35415Q
90560-07028 Spacer (For Primary Regulator Valve)[07.2001 - 12.2002] ACV20..ATM |
90560-07028 |
US $2.04 |
||
|
35416
|
35416
35416-28030 Plunger, Primary Regulator Valve, No.1[07.2001 - 12.2002] ACV20..ATM |
35416-28030 |
US $14.41 |
||
|
35417A
|
35417A
35417-21010
Sleeve, Primary Regulator Valve
[07.2001 - 12.2002] ACV20..ATM |
35417-21010 |
— | ||
| replacement | |||||
|
35417A
|
35417A
35417-28030 Sleeve, Primary Regulator Valve[07.2001 - 12.2002] ACV20..ATM |
35417-28030 |
US $18.48 |
||
|
35417B
|
35417B
90250-03093 Pin, Straight (For Primary Regulator Valve Sleeve)[07.2001 - 12.2002] ACV20..ATM |
90250-03093 |
US $1.60 |
||
|
35417C
|
35417C
90339-06020 Plug(For Primary Regulator Valve)[07.2001 - 12.2002] ACV20..ATM |
90339-06020 |
US $1.16 |
||
|
35445K
|
35445K
35445-28010
Valve, B-2 Control
[07.2001 - 12.2002] ACV20..ATM |
35445-28010 |
— | ||
|
35445L
|
35445L
90282-03026 Key, Straight (For B-2 Control Valve)[07.2001 - 12.2002] ACV20..ATM |
90282-03026 |
US $1.31 |
||
|
35445M
|
35445M
90339-04058 Seat, Plug (For Lock Up Relay Valve)[07.2001 - 12.2002] ACV20..ATM |
90339-04058 |
US $2.04 |
||
|
35445N
|
35445N
90080-50299
Spring, Compression (For B-2 Control Valve)
[07.2001 - 12.2002] ACV20..ATM |
90080-50299 |
— | ||
|
35456H
|
35456H
35456-28020 Valve, C-2 Control[07.2001 - 12.2002] ACV20..ATM |
35456-28020 |
US $9.32 |
||
|
35456J
|
35456J
90282-03026 Key, Straight (For B-2 Control Valve)[07.2001 - 12.2002] ACV20..ATM |
90282-03026 |
US $1.31 |
||
|
35456K
|
35456K
90339-04059 Plug (For C-2 Control Valve)[07.2001 - 12.2002] ACV20..ATM |
90339-04059 |
US $2.04 |
||
|
35456L
|
35456L
90080-50300
Spring, Compression (For C-2 Control Valve)
[07.2001 - 12.2002] ACV20..ATM |
90080-50300 |
— | ||
|
35464F
|
35464F
35464-28010
Valve, B-1 Control
[07.2001 - 12.2002] ACV20..ATM |
35464-28010 |
— | ||
|
35464G
|
35464G
90282-03026 Key, Straight (For B-2 Control Valve)[07.2001 - 12.2002] ACV20..ATM |
90282-03026 |
US $1.31 |
||
|
35464H
|
35464H
90339-04060 Plug (For Reverse Control Valve)[07.2001 - 12.2002] ACV20..ATM |
90339-04060 |
US $2.04 |
||
|
35464J
|
35464J
90080-50301
Spring, Compression (For B-1 Control Valve)
[07.2001 - 12.2002] ACV20..ATM |
90080-50301 |
— | ||
|
35486B
|
35486B
35486-28010 Seat, Pressure Relief Valve Spring[07.2001 - 12.2002] ACV20..ATM |
35486-28010 |
US $3.20 |
||
|
35486C
|
35486C
90080-50302
Spring, Compression(For Pressure Relife Valve)
[07.2001 - 12.2002] ACV20..ATM |
90080-50302 |
— | ||
|
35486D
|
35486D
90080-36192
Ball (For Pressure Relief)
[12.2001 - 12.2002] ACV20..ATM |
90080-36192 |
— | ||
| replacement | |||||
|
35486D
|
35486D
90080-36186
Ball (For Pressure Relief)
[12.2001 - 12.2002] ACV20..ATM |
90080-36186 |
— | ||
|
35486D
|
35486D
90360-10006 Ball (For Pressure Relief)[07.2001 - 12.2001] ACV20..ATM |
90360-10006 |
US $1.16 |
||
|
35497
|
35497
35497-21010 Valve, 3-4 Shift[07.2001 - 12.2002] ACV20..ATM |
35497-21010 |
US $7.43 |
||
|
35497A
|
35497A
90080-50310
Spring, Compression (For Lock Up Relay Valve)
[07.2001 - 12.2002] ACV20..ATM |
90080-50310 |
— | ||
|
35497F
|
35497F
35479-21010 Key, Straight (For 3-4 Shift Valve)[07.2001 - 12.2002] ACV20..ATM |
35479-21010 |
US $5.10 |
||
|
9008010244
|
9008010244
90080-10244
New Genuine Part
|
90080-10244 |
— | ||
