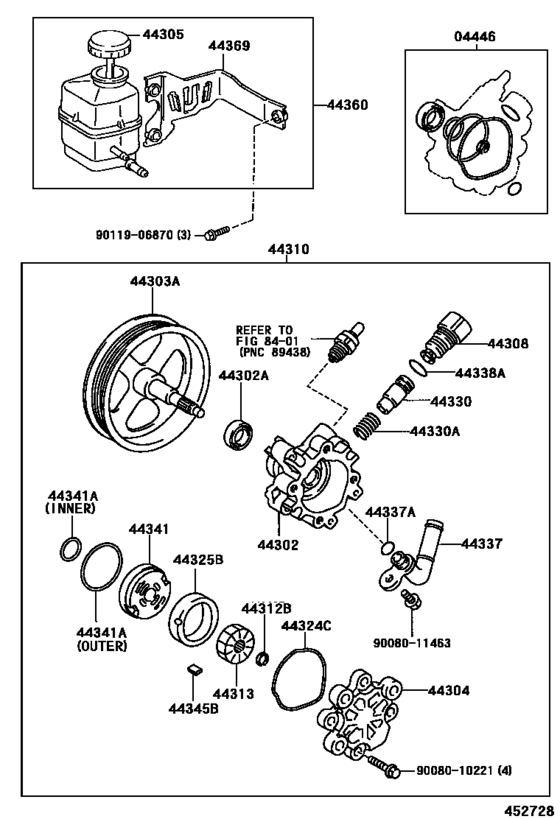

Vane Pump & Reservoir (Power Steering) ([07.2001 - ] (0107- )ACV20) Diagram Toyota SOLARA
- Year
- 2001 - 2002
- Sales region
- U.S.A.
- Frame
- ACV20
- body
- CVT
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 07.2001
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-06050
Gasket Kit, Power Steering Pump
[07.2001 - 12.2002] ACV20 |
04446-06050 |
— | ||
| replacement | |||||
|
04446
|
04446
04446-02140
Gasket Kit, Power Steering Pump
[07.2001 - 12.2002] ACV20 |
04446-02140 |
— | ||
|
44302
|
44302
44302-06050
Housing Sub-Assy, Vane Pump, Front
[07.2001 - 12.2002] ACV20 |
44302-06050 |
— | ||
|
44302A
|
44302A
90080-31071
Seal, Oil, No.1(For Vane Pump Housing)
[07.2001 - 12.2002] ACV20 |
90080-31071 |
— | ||
|
44303A
|
44303A
44303-06010
Shaft Sub-Assy, W/pulley
[07.2001 - 12.2002] ACV20 |
44303-06010 |
— | ||
|
44304
|
44304
44304-06010
Housing Sub-Assy, Vane Pump, Rear
[07.2001 - 12.2002] ACV20 |
44304-06010 |
— | ||
|
44305
|
44305
44305-06010 Cap Sub-Assy, Vane Pump Oil Reservoir[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
44305-06010 |
US $29.27 |
||
| replacement | |||||
|
44305
|
44305
44305-32040 Cap Sub-Assy, Vane Pump Oil Reservoir[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
44305-32040 |
from US $14.17 |
||
|
44305
|
44305
44305-06030
Cap Sub-Assy, Vane Pump Oil Reservoir
[07.2002 - 12.2002] ACV20,MCV20 |
44305-06030 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-06050 Cap Sub-Assy, Vane Pump Oil Reservoir[07.2002 - 12.2002] ACV20,MCV20 |
44305-06050 |
US $16.60 |
||
|
44308
|
44308
44308-06010
Union Sub-Assy, Pressure Port
[07.2001 - 12.2002] ACV20 |
44308-06010 |
— | ||
|
44310
|
44310
44310-06070
Pump Assy, Vane
[07.2001 - 12.2002] ACV20 |
44310-06070 |
— | ||
| replacement | |||||
|
44310
|
44310
44310-06071
Pump Assy, Vane
[07.2001 - 12.2002] ACV20 |
44310-06071 |
— | ||
|
44312B
|
44312B
90080-52033 Ring, Snap, No.1(For Vane Pump Shaft)[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
90080-52033 |
US $0.58 |
||
|
44313
|
44313
44313-06060
Rotor, Vane Pump
[07.2001 - 12.2002] ACV20 MARK 0 |
44313-06060 |
— | ||
|
44313
|
44313
44313-06070
Rotor, Vane Pump
[07.2001 - 12.2002] ACV20 MARK 1 |
44313-06070 |
— | ||
|
44313
|
44313
44313-06080
Rotor, Vane Pump
[07.2001 - 12.2002] ACV20 MARK 2 |
44313-06080 |
— | ||
|
44313
|
44313
44313-06090
Rotor, Vane Pump
[07.2001 - 12.2002] ACV20 MARK 3 |
44313-06090 |
— | ||
|
44313
|
44313
44313-06100
Rotor, Vane Pump
[07.2001 - 12.2002] ACV20 MARK 4 |
44313-06100 |
— | ||
|
44324C
|
44324C
90903-01007 Ring, O(For Pump Housing Rear)[07.2001 - 12.2002] ACV20 |
90903-01007 |
US $2.15 |
||
|
44325B
|
44325B
44325-06060
Ring, Vane Pump Cam
[07.2001 - 12.2002] ACV20 NO MARK |
44325-06060 |
— | ||
|
44325B
|
44325B
44325-06070
Ring, Vane Pump Cam
[07.2001 - 12.2002] ACV20 MARK 1 |
44325-06070 |
— | ||
|
44325B
|
44325B
44325-06080
Ring, Vane Pump Cam
[07.2001 - 12.2002] ACV20 MARK 2 |
44325-06080 |
— | ||
|
44325B
|
44325B
44325-06090
Ring, Vane Pump Cam
[07.2001 - 12.2002] ACV20 MARK 3 |
44325-06090 |
— | ||
|
44325B
|
44325B
44325-06100
Ring, Vane Pump Cam
[07.2001 - 12.2002] ACV20 MARK 4 |
44325-06100 |
— | ||
|
44330
|
44330
44330-06071
Valve Assy, Flow Control
[07.2001 - 12.2002] ACV20 MARK A |
44330-06071 |
— | ||
|
44330
|
44330
44330-06081
Valve Assy, Flow Control
[07.2001 - 12.2002] ACV20 MARK B |
44330-06081 |
— | ||
|
44330
|
44330
44330-06091
Valve Assy, Flow Control
[07.2001 - 12.2002] ACV20 MARK C |
44330-06091 |
— | ||
|
44330
|
44330
44330-06101
Valve Assy, Flow Control
[07.2001 - 12.2002] ACV20 MARK D |
44330-06101 |
— | ||
|
44330
|
44330
44330-06111
Valve Assy, Flow Control
[07.2001 - 12.2002] ACV20 MARK E |
44330-06111 |
— | ||
|
44330
|
44330
44330-06121
Valve Assy, Flow Control
[07.2001 - 12.2002] ACV20 MARK F |
44330-06121 |
— | ||
|
44330A
|
44330A
90080-50222
Spring, Compression(For Flow Control Valve)
[07.2001 - 12.2002] ACV20 |
90080-50222 |
— | ||
|
44337
|
44337
44337-32110 Union, Power Steering Suction Port[07.2001 - 12.2002] ACV20 |
44337-32110 |
US $20.27 |
||
|
44337A
|
44337A
90301-11020 Ring, O, No.1(For Vane Pump Housing)[07.2001 - 12.2002] ACV20 |
90301-11020 |
from US $2.13 |
||
|
44338A
|
44338A
90301-18009 Ring, O(For Pressure Port Union)[07.2001 - 12.2002] ACV20 OD=22,ID=18.6 |
90301-18009 |
US $2.51 |
||
|
44341
|
44341
44341-32031 Plate, Vane Pump Side, Front[07.2001 - 12.2002] ACV20 |
44341-32031 |
US $12.38 |
||
|
44341A
|
44341A
90301-16012 Ring, O(For Vane Pump Front Side Plate)[07.2001 - 12.2002] ACV20 INNER |
90301-16012 |
US $1.14 |
||
|
44341A
|
44341A
90301-45003 Ring, O(For Vane Pump Front Side Plate)[07.2001 - 12.2002] ACV20 OUTER |
90301-45003 |
US $2.18 |
||
|
44345B
|
44345B
44345-06010
Plate, Vane Pump
[07.2001 - 12.2002] ACV20 L=12.000 |
44345-06010 |
— | ||
|
44345B
|
44345B
44345-06020
Plate, Vane Pump
[07.2001 - 12.2002] ACV20 L=11.998 |
44345-06020 |
— | ||
|
44345B
|
44345B
44345-06030
Plate, Vane Pump
[07.2001 - 12.2002] ACV20 L=11.996 |
44345-06030 |
— | ||
|
44345B
|
44345B
44345-06040
Plate, Vane Pump
[07.2001 - 12.2002] ACV20 L=11.994 |
44345-06040 |
— | ||
|
44345B
|
44345B
44345-06050
Plate, Vane Pump
[07.2001 - 12.2002] ACV20 L=11.992 |
44345-06050 |
— | ||
|
44360
|
44360
44360-06010 Reservoir Assy, Vane Pump Oil[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
44360-06010 |
US $151.42 |
||
|
44369
|
44369
44390-06010
Bracket, Oil Reservoir, No.1
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
44390-06010 |
— | ||
|
9008010221
|
9008010221
90080-10221
New Genuine Part
|
90080-10221 |
— | ||
|
9008011463
|
9008011463
90080-11463
New Genuine Part
|
90080-11463 |
— | ||
|
9011906870
|
9011906870
90119-06870 BOLT WWASHER |
90119-06870 |
US $0.70 |
||
