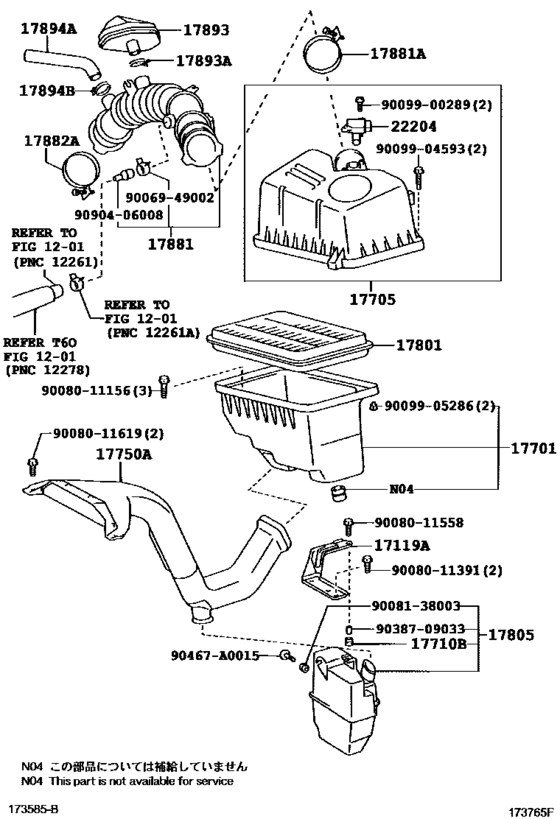

Air Cleaner ([07.2003 - ] (0307- )2AZFE) Diagram Toyota SOLARA
- Year
- 2005 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SLE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 03.2005
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17119A
|
17119A
17119-AA020
Bracket, Air Cleaner
[07.2003 - 05.2006] 3MZFE..MCV31; 2AZFE..ACV30..5F,5FC |
17119-AA020 |
— | ||
|
17701
|
17701
17701-0H010
Case Sub-Assy, Air Cleaner
[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC |
17701-0H010 |
— | ||
|
17705
|
17705
17705-0H080
Cap Sub-Assy, Air Cleaner
[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC |
17705-0H080 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-0H081
Cap Sub-Assy, Air Cleaner
[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC |
17705-0H081 |
— | ||
|
17710B
|
17710B
90480-17013 Grommet[07.2003 - 05.2006] 3MZFE..MCV31; 2AZFE..ACV30..5F,5FC |
90480-17013 |
from US $3.21 |
||
|
17750A
|
17750A
17750-0H010
Inlet Assy, Air Cleaner
[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC |
17750-0H010 |
— | ||
|
17801
|
17801
17801-0H010
Element Sub-Assy, Air Cleaner Filter
[07.2003 - 05.2006] 3MZFE..MCV31; 2AZFE..ACV30..5F,5FC |
17801-0H010 |
— | ||
|
17805
|
17805
17805-0H010
Connector Sub-Assy, Intake Air
[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC |
17805-0H010 |
— | ||
|
17881
|
17881
17881-AB010
Hose, Air Cleaner, No.1
[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC |
17881-AB010 |
— | ||
|
17881A
|
17881A
96111-10830 Clamp, Hose(For Air Connector)[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC |
96111-10830 |
from US $3.23 |
||
|
17882A
|
17882A
90466-62002 Clamp(For Air Cleaner Hose, No.1)[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC |
90466-62002 |
from US $5.73 |
||
|
17893
|
17893
17893-0H050
Resonator, Intake Air
[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC |
17893-0H050 |
— | ||
|
17893A
|
17893A
96111-10430 Clamp Or Clip, Hose(For Radiator Inlet)[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC |
96111-10430 |
from US $2.15 |
||
|
17894A
|
17894A
17894-AB010
Resonator, Intake Air, No.2
[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC |
17894-AB010 |
— | ||
|
17894B
|
17894B
96111-10480 Clamp Or Clip, Hose(For Radiator Outlet No.1)[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC |
96111-10480 |
US $2.15 |
||
|
22204
|
22204
22204-07010
Meter Sub-Assy, Intake Air Flow
[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC |
22204-07010 |
— | ||
| replacement | |||||
|
22204
|
22204
22204-21010 Meter Sub-Assy, Intake Air Flow[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC |
22204-21010 |
from US $150.10 |
||
|
22204
|
22204
22204-21010 Meter Sub-Assy, Intake Air Flow[02.2008 - 08.2008] 2AZFE..ACV30 (J) |
22204-21010 |
from US $150.10 |
||
|
90467A0015
|
90467A0015
90467-A0015
New Genuine Part
|
90467-A0015 |
— | ||
|
9006949002
|
9006949002
90069-49002
New Genuine Part
|
90069-49002 |
— | ||
|
9008011156
|
9008011156
90080-11156 New Genuine Part |
90080-11156 |
US $1.60 |
||
|
9008011391
|
9008011391
90080-11391
New Genuine Part
|
90080-11391 |
— | ||
|
9008011558
|
9008011558
90080-11558
New Genuine Part
|
90080-11558 |
— | ||
|
9008011619
|
9008011619
90080-11619
New Genuine Part
|
90080-11619 |
— | ||
|
9008138003
|
9008138003
90081-38003
New Genuine Part
|
90081-38003 |
— | ||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.65 |
||
|
9009904593
|
9009904593
90099-04593 BOLT WWASHER |
90099-04593 |
from US $0.59 |
||
|
9009905286
|
9009905286
90099-05286
NUT
|
90099-05286 |
— | ||
|
9038709033
|
9038709033
90387-09033 New Genuine Part |
90387-09033 |
US $1.60 |
||
|
9090406008
|
9090406008
90904-06008 Tube, Union(Fog Air Cleaner Hose) |
90904-06008 |
from US $6.09 |
||
