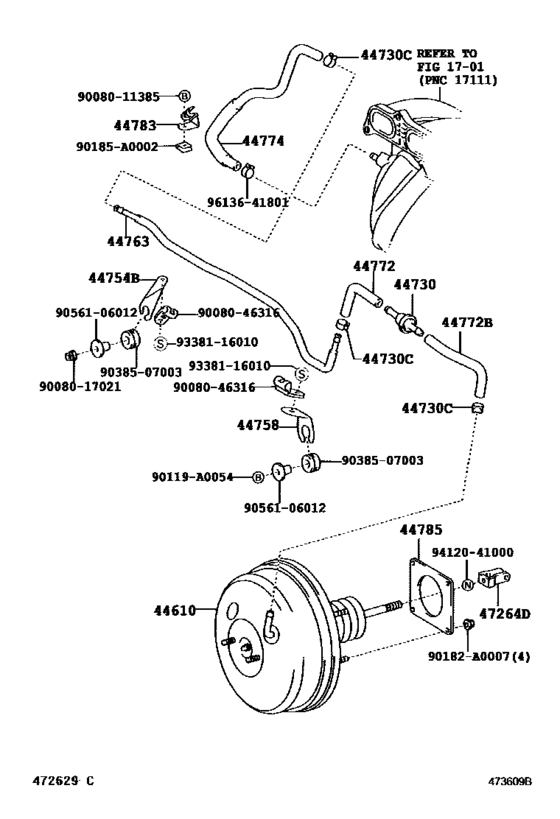

Brake Booster & Vacuum Tube ([07.2003 - ] (0307- )ACV30) Diagram Toyota SOLARA
- Year
- 2005 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SLE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 03.2005
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-06280
Booster Assy, Brake
[07.2003 - 05.2006] ACV30,MCV31 |
44610-06280 |
— | ||
|
44730
|
44730
44730-10010 Valve Assy, Vacuum Check(For Brake)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
44730-10010 |
from US $24.21 |
||
|
44730C
|
44730C
90466-A0003
Clip(For Vacuum Hose)
[07.2003 - 05.2006] ACV30..5F,5FC |
90466-A0003 |
— | ||
|
44754B
|
44754B
44758-06040
Bracket, Vacuum Tube
[07.2003 - 05.2006] ACV30..5F,5FC |
44758-06040 |
— | ||
|
44758
|
44758
44758-06030
Bracket, Vacuum Check Valve
[07.2003 - 05.2006] ACV30..5F,5FC |
44758-06030 |
— | ||
|
44763
|
44763
44763-06020
Tube, Booster Vacuum
[07.2003 - 05.2006] ACV30..5F,5FC |
44763-06020 |
— | ||
|
44772
|
44772
44772-06030
Hose, Check Valve To Connector Tube
[07.2003 - 05.2006] ACV30..5F,5FC |
44772-06030 |
— | ||
|
44772B
|
44772B
44772-06040
Hose, Check Valve To Brake Booster
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
44772-06040 |
— | ||
|
44774
|
44774
44774-06020
Hose, Union To Connector Tube
[07.2003 - 05.2006] ACV30..5F,5FC |
44774-06020 |
— | ||
|
44783
|
44783
44783-06020
Clamp, Vacuum Hose
[06.2004 - 05.2006] ACV30..5F,5FC |
44783-06020 |
— | ||
|
44785
|
44785
44785-02010 Gasket, Brake Booster[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
44785-02010 |
US $4.22 |
||
|
47264D
|
47264D
47264-12060 Clevis, Master Cylinder Push Rod[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47264-12060 |
from US $3.35 |
||
|
90119A0054
|
90119A0054
90119-A0054
New Genuine Part
|
90119-A0054 |
— | ||
|
90182A0007
|
90182A0007
90182-A0007
New Genuine Part
|
90182-A0007 |
— | ||
|
90185A0002
|
90185A0002
90185-A0002
New Genuine Part
|
90185-A0002 |
— | ||
|
9008011385
|
9008011385
90080-11385
New Genuine Part
|
90080-11385 |
— | ||
|
9008017021
|
9008017021
90080-17021
Nut (For Rear Wiper Arm Setting)
|
90080-17021 |
— | ||
| replacement | |||||
|
9008017021
|
9008017021
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9008046316
|
9008046316
90080-46316
New Genuine Part
|
90080-46316 |
— | ||
|
9038507003
|
9038507003
90385-07003 New Genuine Part |
90385-07003 |
US $3.06 |
||
|
9056106012
|
9056106012
90561-06012 New Genuine Part |
90561-06012 |
US $1.02 |
||
|
9338116010
|
9338116010
93381-16010 New Genuine Part |
93381-16010 |
US $1.38 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.74 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9613641801
|
9613641801
96136-41801 Clip(For Fuel Vapor Feed Hose, No.2) |
96136-41801 |
from US $2.87 |
||
