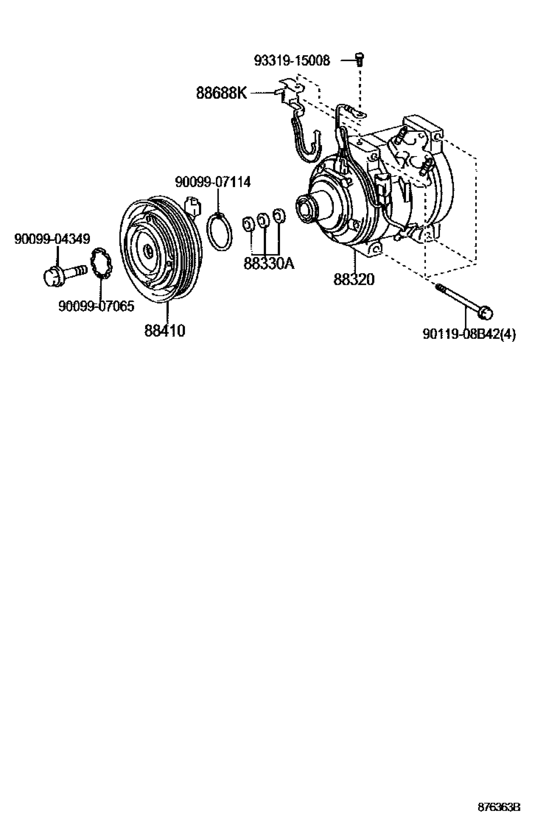

Heating & Air Conditioning - Compressor ([07.2003 - ] (0307- )ACV30) Diagram Toyota SOLARA
- Year
- 2005 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SLE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 03.2005
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-06080
Compressor Assy, Cooler
[07.2003 - 05.2006] ACV30..5F,5FC |
88320-06080 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
88335-14020 |
from US $1.24 |
||
|
88410
|
88410
88410-06090
Clutch Assy, Magnet
[07.2003 - 05.2006] ACV30..5F,5FC |
88410-06090 |
— | ||
|
88688K
|
88688K
88688-48070
Bracket, Cooler Compressor
[07.2003 - 05.2006] ACV30..5F,5FC |
88688-48070 |
— | ||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.12 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.10 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.03 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
