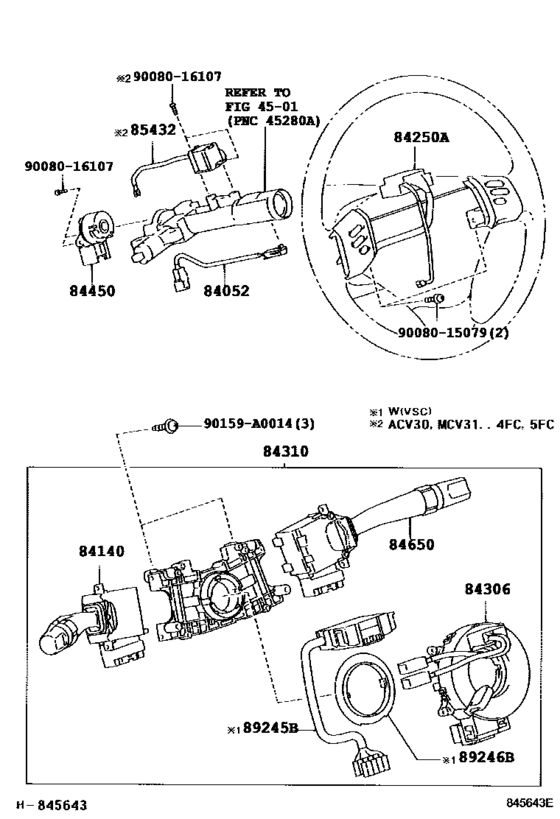

Switch & Relay & Computer ([07.2003 - 05.2006] IGNITION & COMBINATION SWITCH (0307-0605)) Diagram Toyota SOLARA
- Year
- 2005 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SLE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 03.2005
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-22050 Switch Assy, Un-Lock Warning[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
84052-22050 |
from US $14.26 |
||
|
84140
|
84140
84140-06210
Switch Assy, Headlamp Dimmer
[07.2003 - 05.2006] ACV30..5FC |
84140-06210 |
— | ||
|
84140
|
84140
84140-07030 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [07.2003 - 05.2006] ACV30..5FC CANADA SPEC |
84140-07030 |
US $101.92 |
||
|
84140
|
84140
84140-07111
Switch Assy, Headlamp Dimmer
[05.2006 - 08.2008] ACV30,MCV31 |
84140-07111 |
— | ||
|
84140
|
84140
84140-07140
Switch Assy, Headlamp Dimmer
[05.2006 - 08.2008] ACV30,MCV31..5FC CANADA SPEC |
84140-07140 |
— | ||
|
84250A
|
84250A
84250-06010-A0
Switch Assy, Steering Pad
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
84250-06010-A0 |
— | ||
|
84250A
|
84250A
84250-06010-B0
Switch Assy, Steering Pad
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
84250-06010-B0 |
— | ||
|
84250A
|
84250A
84250-06240
Switch Assy, Steering Pad
[05.2006 - 12.2008] ACV30,MCV31..SLE; MCV31..CVT..SE SPORT PACKAGE(HID HEAD LAMP)&AUDIO-PREMIUM IN-DASH 6CD W/7SPEAKER; MCV31..CVT..SE AUDIO-PREMIUM IN-DASH 6CD W/7SPEAKER |
84250-06240 |
— | ||
|
84306
|
84306
84306-06150 Cable Sub-Assy, SpiralSPIRAL [05.2006 - 08.2008] ACV30,MCV31..CP |
84306-06150 |
from US $140.17 |
||
|
84306
|
84306
84306-07040
Cable Sub-Assy, Spiral
[02.2005 - 05.2006] ACV30,MCV31..5F,5FC |
84306-07040 |
— | ||
|
84310
|
84310
84310-06311
Switch Assy, Turn Signal
[10.2004 - 05.2006] ACV30,MCV31..5FC CANADA SPEC |
84310-06311 |
— | ||
|
84310
|
84310
84310-06321
Switch Assy, Turn Signal
[10.2004 - 05.2006] ACV30,MCV31..5F,5FC |
84310-06321 |
— | ||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
84450-12200 |
from US $54.43 |
||
|
84650
|
84650
84652-04141
Switch Assy, Windshield Wiper
[05.2006 - 08.2008] ACV30,MCV31 |
84652-04141 |
— | ||
|
84650
|
84650
84652-0C021 Switch Assy, Windshield WiperWINDSHIELD WIPER [10.2004 - 05.2006] ACV30,MCV31..5F,5FC |
84652-0C021 |
US $126.67 |
||
|
85432
|
85432
85432-33030
Solenoid, Key Inter Lock
[07.2003 - 05.2006] ACV30,MCV31..5FC |
85432-33030 |
— | ||
|
90159A0014
|
90159A0014
90159-A0014
New Genuine Part
|
90159-A0014 |
— | ||
|
9008015079
|
9008015079
90080-15079 SCREW WWASHER |
90080-15079 |
US $0.73 |
||
|
9008016107
|
9008016107
90080-16107
New Genuine Part
|
90080-16107 |
— |
