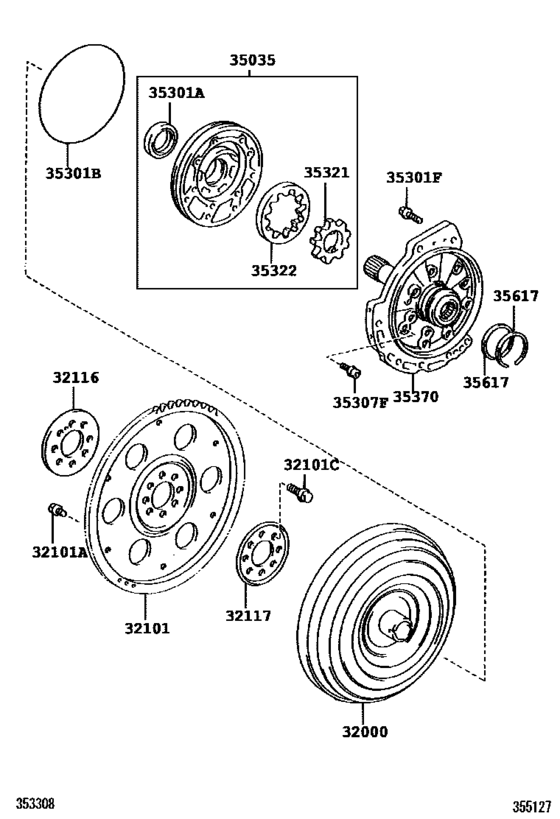

Torque Converter, Front Oil Pump & Chain (Atm) ([03.2005 - ] U250E (0503- )ACV30..5FC) Diagram Toyota SOLARA
- Year
- 2005 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SLE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 03.2005
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-44060 Converter Assy, Torque[03.2005 - 05.2006] ACV30..5FC |
32000-44060 |
US $1,205.57 |
||
|
32101
|
32101
32101-06030
Gear Sub-Assy, Drive Plate & Ring
[03.2005 - 05.2006] ACV30..5FC (L) |
32101-06030 |
— | ||
|
32101
|
32101
32101-28040 Gear Sub-Assy, Drive Plate & Ring[03.2005 - 05.2006] ACV30..5FC (J) |
32101-28040 |
from US $163.86 |
||
|
32101A
|
32101A
90109-09001 Bolt(For Drive Plate & Torque Converter Setting)[07.2003 - 05.2006] ACV30,MCV31..5FC *9-1.25PX12.4-7.3,GREEN |
90109-09001 |
from US $0.76 |
||
|
32101A
|
32101A
90119-09025 Bolt(For Drive Plate & Torque Converter Setting)[07.2003 - 05.2006] ACV30,MCV31..5FC *9-1.25PX12.4-8.4,YELLOW |
90119-09025 |
from US $0.76 |
||
|
32101C
|
32101C
90105-12184
Bolt, Flywheel Setting
[08.2007 - 08.2008] ACV30..5FC *12-1.25PX22-16,(J) |
90105-12184 |
— | ||
|
32101C
|
32101C
90105-A0060
Bolt, Hexagon(For Drive Plate Setting)
[07.2003 - 05.2006] ACV30..5FC *12-1.25PX22-16 |
90105-A0060 |
— | ||
| replacement | |||||
|
32101C
|
32101C
90105-12184
Bolt, Flywheel Setting
[07.2003 - 05.2006] ACV30..5FC *12-1.25PX22-16 |
90105-12184 |
— | ||
|
32116
|
32116
32116-20050 Spacer, Drive Plate, Front[07.2003 - 05.2006] ACV30..5FC |
32116-20050 |
US $11.47 |
||
|
32117
|
32117
32117-20060 Spacer, Drive Plate, Rear[07.2003 - 05.2006] ACV30..5FC |
32117-20060 |
from US $15.05 |
||
|
35035
|
35035
35035-33020 Body Sub-Assy, Fr Oil Pump & Gear[03.2005 - 05.2006] ACV30..5FC |
35035-33020 |
US $227.14 |
||
| replacement | |||||
|
35035
|
35035
35035-12080 Body Sub-Assy, Fr Oil Pump & Gear[03.2005 - 05.2006] ACV30..5FC |
35035-12080 |
US $227.14 |
||
|
35301A
|
35301A
90311-38083 Seal, Oil (For Front Oil Pump)[03.2005 - 05.2006] ACV30..5FC |
90311-38083 |
from US $5.20 |
||
|
35301B
|
35301B
90301-99099 Ring, O (For Front Oil Pump Body)[03.2005 - 05.2006] ACV30..5FC |
90301-99099 |
from US $5.47 |
||
|
35301F
|
35301F
90105-08050 Bolt (For Overdrive Case & Transaxle Case Setting)[03.2005 - 05.2006] ACV30..5FC *8-1.25PX28-28 |
90105-08050 |
US $3.58 |
||
|
35307F
|
35307F
90148-60027 Bolt (For Stator Shaft)[03.2005 - 05.2006] ACV30..5FC |
90148-60027 |
US $0.73 |
||
|
35321
|
35321
35321-33060 Gear, Front Oil Pump Drive[03.2005 - 05.2006] ACV30..5FC T=11.715,MARK A |
35321-33060 |
US $43.68 |
||
|
35321
|
35321
35321-33070 Gear, Front Oil Pump Drive[03.2005 - 05.2006] ACV30..5FC T=11.715,MARK B |
35321-33070 |
US $43.68 |
||
|
35321
|
35321
35321-33080 Gear, Front Oil Pump Drive[03.2005 - 05.2006] ACV30..5FC T=11.715,MARK C |
35321-33080 |
US $43.68 |
||
|
35321
|
35321
35321-33090 Gear, Front Oil Pump Drive[03.2005 - 05.2006] ACV30..5FC T=11.715,MARK D |
35321-33090 |
US $43.68 |
||
|
35321
|
35321
35321-33100 Gear, Front Oil Pump Drive[03.2005 - 05.2006] ACV30..5FC T=11.715,MARK E |
35321-33100 |
US $43.68 |
||
|
35322
|
35322
35322-33060 Gear, Front Oil Pump Driven[03.2005 - 05.2006] ACV30..5FC T=11.715,MARK A |
35322-33060 |
US $43.68 |
||
|
35322
|
35322
35322-33070 Gear, Front Oil Pump Driven[03.2005 - 05.2006] ACV30..5FC T=11.715,MARK B |
35322-33070 |
US $43.68 |
||
|
35322
|
35322
35322-33080 Gear, Front Oil Pump Driven[03.2005 - 05.2006] ACV30..5FC T=11.715,MARK C |
35322-33080 |
US $43.68 |
||
|
35322
|
35322
35322-33090 Gear, Front Oil Pump Driven[03.2005 - 05.2006] ACV30..5FC T=11.715,MARK D |
35322-33090 |
US $43.68 |
||
|
35322
|
35322
35322-33100 Gear, Front Oil Pump Driven[03.2005 - 05.2006] ACV30..5FC T=11.715,MARK E |
35322-33100 |
US $43.68 |
||
|
35370
|
35370
35370-28010 Shaft Assy, Stator[03.2005 - 05.2006] ACV30..5FC |
35370-28010 |
US $221.31 |
||
| replacement | |||||
|
35370
|
35370
35370-12110 Shaft Assy, Stator[03.2005 - 05.2006] ACV30..5FC |
35370-12110 |
from US $200.93 |
||
|
35617
|
35617
35613-21010 Ring, Forward Clutch Dram Oil Seal[07.2003 - 05.2006] ACV30,MCV31..5FC |
35613-21010 |
from US $1.56 |
||
