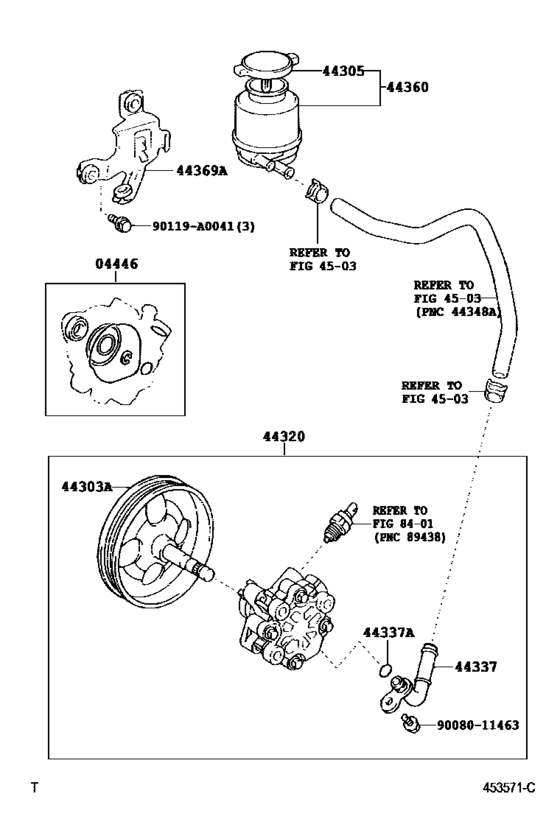

Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ACV30) Diagram Toyota SOLARA
- Year
- 2005 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SLE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 03.2005
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-02070
Gasket Kit, Power Steering Pump
[07.2003 - 05.2006] ACV30 |
04446-02070 |
— | ||
| replacement | |||||
|
04446
|
04446
04446-02140
Gasket Kit, Power Steering Pump
[07.2003 - 05.2006] ACV30 |
04446-02140 |
— | ||
|
04446
|
04446
04446-02140
Gasket Kit, Power Steering Pump
[04.2007 - 08.2008] ACV30 |
04446-02140 |
— | ||
|
44303A
|
44303A
44303-06060
Shaft Sub-Assy, W/pulley
[05.2004 - 05.2006] ACV30..5F,5FC |
44303-06060 |
— | ||
|
44305
|
44305
44305-06030
Cap Sub-Assy, Vane Pump Oil Reservoir
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
44305-06030 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-06050 Cap Sub-Assy, Vane Pump Oil Reservoir[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
44305-06050 |
US $16.60 |
||
|
44305
|
44305
44305-06050 Cap Sub-Assy, Vane Pump Oil Reservoir[10.2007 - 08.2008] ACV30,MCV31..CP |
44305-06050 |
US $16.60 |
||
|
44320
|
44320
44310-06071
Pump Assy, Vane
[05.2004 - 05.2006] ACV30 |
44310-06071 |
— | ||
|
44337
|
44337
44337-32110 Union, Power Steering Suction Port[07.2003 - 05.2006] ACV30..5F,5FC |
44337-32110 |
US $20.27 |
||
|
44337A
|
44337A
90301-11020 Ring, O, No.1(For Vane Pump Housing)[07.2003 - 05.2006] ACV30..5F,5FC |
90301-11020 |
from US $2.13 |
||
|
44360
|
44360
44360-06030
Reservoir Assy, Vane Pump Oil
[07.2003 - 05.2006] ACV30,MCV31 |
44360-06030 |
— | ||
|
44369A
|
44369A
44390-06020
Bracket, Oil Reservoir, No.1
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
44390-06020 |
— | ||
|
90119A0041
|
90119A0041
90119-A0041
New Genuine Part
|
90119-A0041 |
— | ||
|
9008011463
|
9008011463
90080-11463
New Genuine Part
|
90080-11463 |
— | ||
