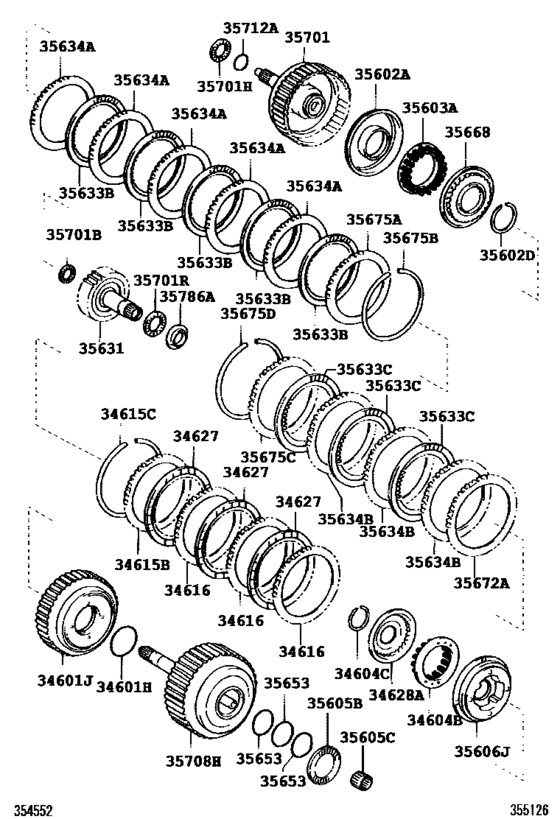

Brake Band & Multiple Disc Clutch (Atm) ([03.2005 - ] U250E (0503- )ACV30..5FC) Diagram Toyota SOLARA
- Year
- 2005 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 03.2005
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34601H
|
34601H
90301-56008 Ring, O (For Overdrive Direct Cluch)[03.2005 - 05.2006] ACV30..5FC |
90301-56008 |
US $2.97 |
||
|
34601J
|
34601J
34601-33030 Drum Sub-Assy, Overdrive Direct Clutch[03.2005 - 05.2006] ACV30..5FC |
34601-33030 |
US $337.79 |
||
| replacement | |||||
|
34601J
|
34601J
34601-33H01 Drum Sub-Assy, Overdrive Direct Clutch[03.2005 - 05.2006] ACV30..5FC |
34601-33H01 |
US $356.72 |
||
|
34604B
|
34604B
34604-33010 Spring Sub-Assy, Overdrive Clutch Return[03.2005 - 05.2006] ACV30..5FC |
34604-33010 |
US $27.52 |
||
|
34604C
|
34604C
90520-31013 Spring Sub-Assy, Overdrive Clutch Return[03.2005 - 05.2006] ACV30..5FC |
90520-31013 |
US $1.02 |
||
|
34615B
|
34615B
34615-33060 Flange, Overdrive Clutch[03.2005 - 05.2006] ACV30..5FC MARK 0 |
34615-33060 |
from US $31.30 |
||
|
34615B
|
34615B
34615-33070 Flange, Overdrive Clutch[03.2005 - 05.2006] ACV30..5FC MARK 1 |
34615-33070 |
US $57.46 |
||
|
34615B
|
34615B
34615-33080 Flange, Overdrive Clutch[03.2005 - 05.2006] ACV30..5FC MARK 2 |
34615-33080 |
US $32.61 |
||
|
34615B
|
34615B
34615-33090 Flange, Overdrive Clutch[03.2005 - 05.2006] ACV30..5FC MARK 3 |
34615-33090 |
from US $30.98 |
||
|
34615B
|
34615B
34615-33100 Flange, Overdrive Clutch[03.2005 - 05.2006] ACV30..5FC MARK 4 |
34615-33100 |
from US $33.92 |
||
|
34615B
|
34615B
34615-33110 Flange, Overdrive Clutch[03.2005 - 05.2006] ACV30..5FC MARK 5 |
34615-33110 |
from US $34.51 |
||
|
34615B
|
34615B
34615-33120 Flange, Overdrive Clutch[03.2005 - 05.2006] ACV30..5FC MARK 6 |
34615-33120 |
from US $35.24 |
||
|
34615C
|
34615C
90520-99064 Ring, Hole Snap(For Overdrive Cluch)[03.2005 - 05.2006] ACV30..5FC |
90520-99064 |
US $4.95 |
||
|
34616
|
34616
34616-33010 Plate, Overdrive Clutch[03.2005 - 05.2006] ACV30..5FC |
34616-33010 |
from US $35.53 |
||
|
34627
|
34627
34627-33010 Disc, Overdrive Direct Clutch[03.2005 - 05.2006] ACV30..5FC |
34627-33010 |
from US $49.80 |
||
|
34628A
|
34628A
34628-33010 Balancer, Overdrive Direct Clutch[03.2005 - 05.2006] ACV30..5FC |
34628-33010 |
US $32.76 |
||
|
35602A
|
35602A
35612-33050 Piston Sub-Assy, Forward Clutch[03.2005 - 05.2006] ACV30..5FC |
35612-33050 |
US $34.16 |
||
|
35602D
|
35602D
90520-54004 Ring, Shaft Snap(For Forward Clutch Piston Return Spring)[03.2005 - 05.2006] ACV30..5FC |
90520-54004 |
US $1.60 |
||
|
35603A
|
35603A
35603-33030 Spring Sub-Assy, Forward Clutch Return[03.2005 - 05.2006] ACV30..5FC |
35603-33030 |
US $12.67 |
||
|
35605B
|
35605B
90374-53001
Bearing, Thrust Needle Roller
[03.2005 - 05.2006] ACV30..5FC |
90374-53001 |
— | ||
| replacement | |||||
|
35605B
|
35605B
90374-53006 Bearing, Thrust Needle Roller[03.2005 - 05.2006] ACV30..5FC |
90374-53006 |
from US $13.45 |
||
|
35605C
|
35605C
90364-18010 Bearing, Needle Roller(For Transaxle Rear Cover)[01.2005 - 05.2006] ACV30,MCV31..5FC |
90364-18010 |
from US $12.54 |
||
|
35606J
|
35606J
34612-33020 Piston, Overdrive Direct Clutch[03.2005 - 05.2006] ACV30..5FC |
34612-33020 |
from US $45.38 |
||
|
35631
|
35631
35061-45010 Hub, Clutch(For Multiple Disc Clutch)[03.2005 - 05.2006] ACV30..5FC |
35061-45010 |
US $117.94 |
||
| replacement | |||||
|
35631
|
35631
35061-33020 Hub, Clutch(For Multiple Disc Clutch)[03.2005 - 05.2006] ACV30..5FC |
35061-33020 |
US $117.94 |
||
|
35633B
|
35633B
35633-33090 Disc, Clutch (For Forward Multiple Disc Clutch)[03.2005 - 05.2006] ACV30..5FC |
35633-33090 |
from US $27.81 |
||
|
35633C
|
35633C
35667-33020
Disc, Clutch (For Direct Multiple Disc Clutch)
[03.2005 - 05.2006] ACV30..5FC |
35667-33020 |
— | ||
|
35634A
|
35634A
35634-21010 Plate, Clutch (For Forward Multiple Disc Clutch)[03.2005 - 05.2006] ACV30..5FC T=1.8 |
35634-21010 |
from US $29.88 |
||
|
35634A
|
35634A
35634-33071 Plate, Clutch (For Forward Multiple Disc Clutch)[05.2006 - 08.2008] ACV30..5FC T=1.8 |
35634-33071 |
US $19.66 |
||
|
35634B
|
35634B
35647-33030 Plate, Clutch (For Direct Multiple Disc Clutch)[03.2005 - 05.2006] ACV30..5FC T=1.8 |
35647-33030 |
from US $19.80 |
||
|
35653
|
35653
35653-21010 Ring, Rear Clutch Oil Seal, Outer[07.2003 - 05.2006] ACV30,MCV31..5FC |
35653-21010 |
US $2.04 |
||
| replacement | |||||
|
35653
|
35653
35653-33010 Ring, Rear Clutch Oil Seal, Outer[07.2003 - 05.2006] ACV30,MCV31..5FC |
35653-33010 |
from US $1.24 |
||
|
35653
|
35653
35653-33010 Ring, Rear Clutch Oil Seal, Outer[12.2006 - 08.2008] ACV30,MCV31..CP..5FC |
35653-33010 |
from US $1.24 |
||
|
35668
|
35668
35668-20010
Balancer, Clutch, No.1
[03.2005 - 05.2006] ACV30..5FC |
35668-20010 |
— | ||
|
35672A
|
35672A
35672-33010 Plate, Clutch Cushion (For Direct Multiple Disc Clutch)[03.2005 - 05.2006] ACV30..5FC |
35672-33010 |
US $16.45 |
||
|
35675A
|
35675A
35635-21010 Flange, Forward Clutch[03.2005 - 05.2006] ACV30..5FC T=3.00 |
35635-21010 |
US $42.62 |
||
|
35675A
|
35675A
35635-21020 Flange, Forward Clutch[03.2005 - 05.2006] ACV30..5FC T=3.15 |
35635-21020 |
US $27.08 |
||
|
35675A
|
35675A
35635-21030 Flange, Forward Clutch[03.2005 - 05.2006] ACV30..5FC T=3.30 |
35635-21030 |
US $27.08 |
||
|
35675A
|
35675A
35635-21040 Flange, Forward Clutch[03.2005 - 05.2006] ACV30..5FC T=3.45 |
35635-21040 |
US $27.08 |
||
|
35675A
|
35675A
35635-21050 Flange, Forward Clutch[03.2005 - 05.2006] ACV30..5FC T=3.60 |
35635-21050 |
US $27.08 |
||
|
35675A
|
35675A
35635-21060 Flange, Forward Clutch[03.2005 - 05.2006] ACV30..5FC T=3.75 |
35635-21060 |
US $29.85 |
||
|
35675A
|
35675A
35635-21070 Flange, Forward Clutch[03.2005 - 05.2006] ACV30..5FC T=2.85 |
35635-21070 |
US $29.85 |
||
|
35675B
|
35675B
90520-99025 Ring, Hole Snap (For Forward Clutch Flange)[03.2005 - 05.2006] ACV30..5FC |
90520-99025 |
US $3.20 |
||
|
35675C
|
35675C
35675-21010 Flange, Direct Clutch[03.2005 - 05.2006] ACV30..5FC T=3.0 |
35675-21010 |
from US $35.24 |
||
|
35675C
|
35675C
35675-21020 Flange, Direct Clutch[03.2005 - 05.2006] ACV30..5FC T=3.1 |
35675-21020 |
US $34 |
||
|
35675C
|
35675C
35675-21030 Flange, Direct Clutch[03.2005 - 05.2006] ACV30..5FC T=3.2 |
35675-21030 |
US $36.94 |
||
|
35675C
|
35675C
35675-21040 Flange, Direct Clutch[03.2005 - 05.2006] ACV30..5FC T=3.3 |
35675-21040 |
from US $38.88 |
||
|
35675C
|
35675C
35675-21050 Flange, Direct Clutch[03.2005 - 05.2006] ACV30..5FC T=3.4 |
35675-21050 |
US $40.19 |
||
|
35675C
|
35675C
35675-21060 Flange, Direct Clutch[03.2005 - 05.2006] ACV30..5FC T=3.5 |
35675-21060 |
US $41.06 |
||
|
35675C
|
35675C
35675-21080 Flange, Direct Clutch[03.2005 - 05.2006] ACV30..5FC T=2.9 |
35675-21080 |
US $37.86 |
||
|
35675C
|
35675C
35675-33060 Flange, Direct Clutch[03.2005 - 05.2006] ACV30..5FC T=3.6 |
35675-33060 |
US $46.45 |
||
|
35675D
|
35675D
90520-99028 Ring, Hole Snap (For Direct Clutch Flange)[03.2005 - 05.2006] ACV30..5FC |
90520-99028 |
US $3.20 |
||
|
35701
|
35701
35701-44010 Shaft Sub-Assy, Input[03.2005 - 05.2006] ACV30..5FC |
35701-44010 |
US $292.66 |
||
| replacement | |||||
|
35701
|
35701
35701-28020 Shaft Sub-Assy, Input[03.2005 - 05.2006] ACV30..5FC |
35701-28020 |
US $264.99 |
||
|
35701B
|
35701B
90374-23002 Bearing, Thrust Needle Roller (For Input Shaft Rear)[03.2005 - 05.2006] ACV30..5FC |
90374-23002 |
US $17.18 |
||
|
35701H
|
35701H
90374-34005
Bearing, Thrust Needle Roller (For Input Shaft)
[03.2005 - 05.2006] ACV30..5FC OD=52.2 |
90374-34005 |
— | ||
|
35701R
|
35701R
90374-37005 Bearing, Thrust Needle Roller[03.2005 - 05.2006] ACV30..5FC |
90374-37005 |
US $8.04 |
||
|
35708H
|
35708H
35708-33020 Shaft Sub-Assy, Intermediate[03.2005 - 05.2006] ACV30..5FC |
35708-33020 |
US $101.92 |
||
| replacement | |||||
|
35708H
|
35708H
35708-33010 Shaft Sub-Assy, Intermediate[03.2005 - 05.2006] ACV30..5FC |
35708-33010 |
US $118.81 |
||
|
35712A
|
35712A
35712-21010 Ring, Input Shaft Oil Seal[07.2003 - 05.2006] ACV30,MCV31..5FC |
35712-21010 |
US $8.21 |
||
|
35786A
|
35786A
35786-21010 Race, Thrust Bearing, No.1[03.2005 - 05.2006] ACV30..5FC |
35786-21010 |
US $6.55 |
||
