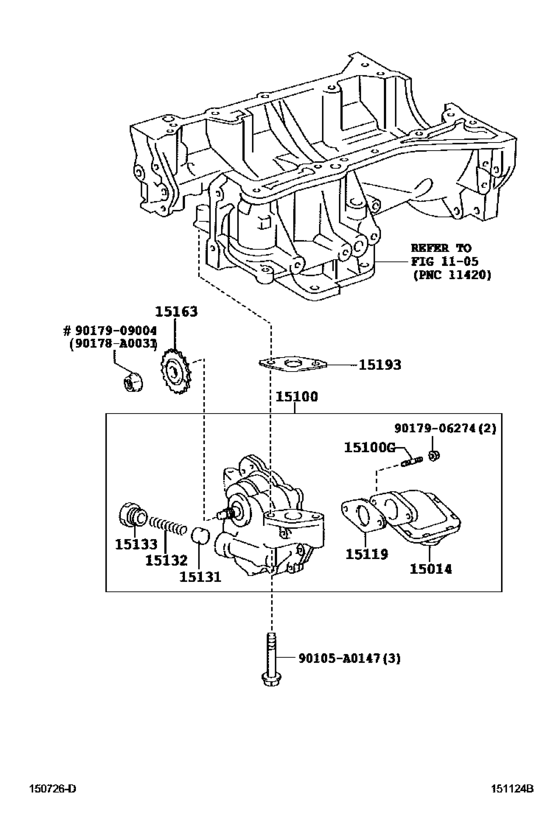

Engine Oil Pump ([05.2006 - ] (0605- )2AZFE) Diagram Toyota SOLARA
- Year
- 2005 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 03.2005
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15014
|
15014
15014-0H010
Strainer Set, Oil Pump
[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
15014-0H010 |
— | ||
|
15014
|
15014
15014-28020 Strainer Set, Oil Pump[01.2006 - 05.2006] 2AZFE..ACV30 *195 |
15014-28020 |
from US $14.90 |
||
|
15100
|
15100
15100-0H010
Pump Assy, Oil
[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
15100-0H010 |
— | ||
|
15100
|
15100
15100-28020 Pump Assy, Oil[01.2006 - 05.2006] 2AZFE..ACV30 *195 |
15100-28020 |
from US $78.13 |
||
|
15100G
|
15100G
15183-0H010
Bolt,stud(For Oil Pump)
[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
15183-0H010 |
— | ||
|
15100G
|
15100G
15183-28020 Bolt,stud(For Oil Pump)[01.2006 - 05.2006] 2AZFE..ACV30 *195 |
15183-28020 |
US $5.02 |
||
|
15119
|
15119
15119-0H010
Gasket, Oil Pump Cover
[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
15119-0H010 |
— | ||
|
15119
|
15119
15119-28020 Gasket, Oil Pump Cover[01.2006 - 05.2006] 2AZFE..ACV30 *195 |
15119-28020 |
from US $4.09 |
||
|
15131
|
15131
15131-46040 Valve, Oil Pump Relief[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
15131-46040 |
from US $2.87 |
||
|
15132
|
15132
15132-0A020 Spring, Oil Pump Relief Valve[07.2003 - 05.2006] 3MZFE..MCV31; 2AZFE..ACV30 *108 |
15132-0A020 |
US $2.77 |
||
|
15132
|
15132
15132-46020 Spring, Oil Pump Relief Valve[01.2006 - 05.2006] 2AZFE..ACV30 *195 |
15132-46020 |
from US $1.39 |
||
|
15133
|
15133
15133-0H010
Plug, Oil Pump Relief Valve
[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
15133-0H010 |
— | ||
|
15133
|
15133
15133-28020 Plug, Oil Pump Relief Valve[01.2006 - 05.2006] 2AZFE..ACV30 *195 |
15133-28020 |
from US $2.19 |
||
|
15163
|
15163
15163-0H010
Gear, Oil Pump Drive Shaft
[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
15163-0H010 |
— | ||
|
15163
|
15163
15163-28010 Gear, Oil Pump Drive Shaft[01.2006 - 05.2006] 2AZFE..ACV30 *195 |
15163-28010 |
from US $3.59 |
||
|
15193
|
15193
15193-0H010
Gasket, Oil Pump
[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
15193-0H010 |
— | ||
|
15193
|
15193
15193-28010 Gasket, Oil Pump[01.2006 - 05.2006] 2AZFE..ACV30 *195 |
15193-28010 |
from US $4.88 |
||
|
90105A0147
|
90105A0147
90105-A0147
New Genuine Part
|
90105-A0147 |
— | ||
|
90178A0031
|
90178A0031
90178-A0031
New Genuine Part
|
90178-A0031 |
— | ||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017909004
|
9017909004
90179-09004 NUT |
90179-09004 |
from US $1.01 |
