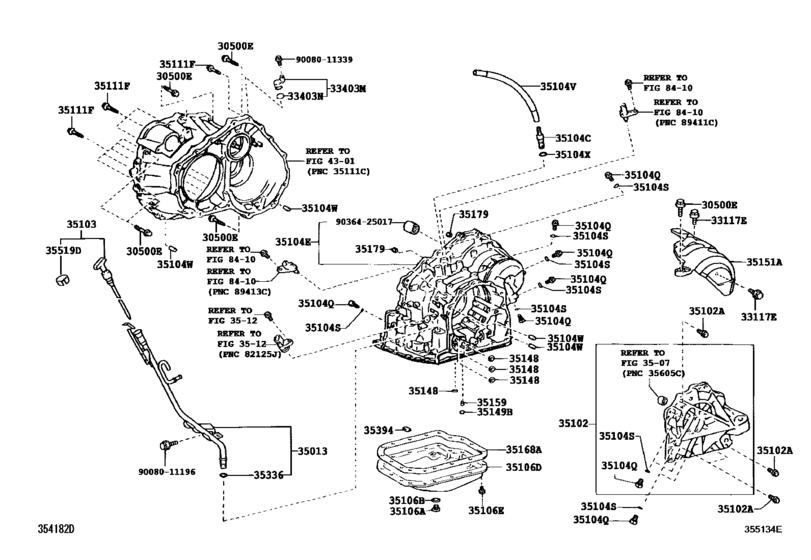

Transmission Case & Oil Pan (Atm) ([03.2005 - ] U250E (0503- )ACV30..5FC) Diagram Toyota SOLARA
- Year
- 2005 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 03.2005
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30500E
|
30500E
90080-10140
Bolt(For Transaxle & Engine Setting)
[07.2003 - 05.2006] ACV30,MCV31..5FC *10-1.25PX17.5-17.5 |
90080-10140 |
— | ||
|
30500E
|
30500E
90080-10207
Bolt(For Transaxle & Engine Setting)
[03.2005 - 05.2006] ACV30..5FC *10-1.25PX65-30 |
90080-10207 |
— | ||
|
30500E
|
30500E
90080-10299
Bolt(For Transaxle & Engine Setting)
[03.2005 - 05.2006] ACV30..5FC *10-1.25PX50-30 |
90080-10299 |
— | ||
|
30500E
|
30500E
90080-11310 Bolt(For Transaxle & Engine Setting)[07.2003 - 05.2006] ACV30,MCV31..5FC *12-1.25PX55-30 |
90080-11310 |
US $4.08 |
||
|
33117E
|
33117E
90080-10083
Bolt(For Automatic Transmission Case Protector)
[05.2006 - 08.2008] ACV30,MCV31..CP..5FC |
90080-10083 |
— | ||
|
33403M
|
33403M
33403-20230 Cover Sub-Assy, Speedometer Driven Hole[03.2005 - 05.2006] ACV30..5FC |
33403-20230 |
US $13.80 |
||
|
33403N
|
33403N
96711-24018 Ring, O[03.2005 - 05.2006] ACV30..5FC |
96711-24018 |
from US $2.17 |
||
|
35013
|
35013
35013-06060
Tube Sub-Assy, Transmission Oil Filler
[03.2005 - 05.2006] ACV30..5FC |
35013-06060 |
— | ||
|
35102
|
35102
35102-33040 Cover Sub-Assy, Transaxle RearTRANSAXLE REAR [03.2005 - 05.2006] ACV30..5FC |
35102-33040 |
US $314.50 |
||
|
35102A
|
35102A
90105-08071 Bolt (For Transaxle Rear Cover Setting)[03.2005 - 05.2006] ACV30..5FC *8-1.25PX30-25 |
90105-08071 |
US $0.96 |
||
|
35103
|
35103
35103-06030
Gage Sub-Assy, Transmission Oil Level
[03.2005 - 05.2006] ACV30..5FC |
35103-06030 |
— | ||
|
35103
|
35103
35103-06110
Gage Sub-Assy, Transmission Oil Level
[05.2006 - 02.2008] ACV30..5FC |
35103-06110 |
— | ||
| replacement | |||||
|
35103
|
35103
35103-06111
Gage Sub-Assy, Transmission Oil Level
[05.2006 - 02.2008] ACV30..5FC |
35103-06111 |
— | ||
|
35103
|
35103
35103-06111
Gage Sub-Assy, Transmission Oil Level
[03.2008 - 08.2008] ACV30..5FC |
35103-06111 |
— | ||
|
35104C
|
35104C
90930-03157 Plug, Breather, No.2 (Atm)[07.2003 - 05.2006] ACV30,MCV31..4FC,5FC |
90930-03157 |
from US $4.66 |
||
|
35104E
|
35104E
35104-33070 Case Sub-Assy, Automatic Transaxle[03.2005 - 01.2006] ACV30..5FC |
35104-33070 |
US $1,244.88 |
||
| replacements | |||||
|
35104E
|
35104E
35104-33H02
Case Sub-Assy, Automatic Transmission
[03.2005 - 01.2006] ACV30..5FC |
35104-33H02 |
— | ||
|
35104E
|
35104E
90301-06008 Ring, O (For Transfer Oil Strainer)[03.2005 - 01.2006] ACV30..5FC |
90301-06008 |
from US $0.74 |
||
|
35104E
|
35104E
90301-10189 Ring, O(For Oil Cooler Tube Union)[03.2005 - 01.2006] ACV30..5FC |
90301-10189 |
from US $2.57 |
||
|
35104E
|
35104E
90105-06320
Bolt (For Transaxle Housing & Transaxle Case Setting)
[03.2005 - 01.2006] ACV30..5FC |
90105-06320 |
— | ||
|
35104E
|
35104E
35104-33090 Case Sub-Assy, Automatic Transaxle[01.2006 - 05.2006] ACV30..5FC |
35104-33090 |
US $1,244.88 |
||
| replacements | |||||
|
35104E
|
35104E
35104-33H02
Case Sub-Assy, Automatic Transmission
[01.2006 - 05.2006] ACV30..5FC |
35104-33H02 |
— | ||
|
35104E
|
35104E
90301-06008 Ring, O (For Transfer Oil Strainer)[01.2006 - 05.2006] ACV30..5FC |
90301-06008 |
from US $0.74 |
||
|
35104E
|
35104E
90301-10189 Ring, O(For Oil Cooler Tube Union)[01.2006 - 05.2006] ACV30..5FC |
90301-10189 |
from US $2.57 |
||
|
35104E
|
35104E
90105-06320
Bolt (For Transaxle Housing & Transaxle Case Setting)
[01.2006 - 05.2006] ACV30..5FC |
90105-06320 |
— | ||
|
35104E
|
35104E
35104-33091 Case Sub-Assy, Automatic Transaxle[10.2006 - 08.2008] ACV30..5FC |
35104-33091 |
US $1,157.52 |
||
| replacements | |||||
|
35104E
|
35104E
35104-28093 Case Sub-Assy, Automatic TransaxleAUTOMATIC TRANSAXLE [10.2006 - 08.2008] ACV30..5FC |
35104-28093 |
from US $783.33 |
||
|
35104E
|
35104E
90301-06008 Ring, O (For Transfer Oil Strainer)[10.2006 - 08.2008] ACV30..5FC |
90301-06008 |
from US $0.74 |
||
|
35104E
|
35104E
90301-10189 Ring, O(For Oil Cooler Tube Union)[10.2006 - 08.2008] ACV30..5FC |
90301-10189 |
from US $2.57 |
||
|
35104E
|
35104E
35104-33081 Case Sub-Assy, Automatic Transaxle[10.2006 - 08.2008] ACV30..5FC |
35104-33081 |
US $1,054.54 |
||
|
35104E
|
35104E
82123-28431
Wire, Engine, No.3
[10.2006 - 08.2008] ACV30..5FC |
82123-28431 |
— | ||
|
35104E
|
35104E
82715-44520 Bracket,wiring Harness Clamp[10.2006 - 08.2008] ACV30..5FC |
82715-44520 |
US $5.24 |
||
|
35104E
|
35104E
90119-08868 BOLT WWASHER[10.2006 - 08.2008] ACV30..5FC |
90119-08868 |
US $1.25 |
||
|
35104Q
|
35104Q
90341-08001 Plug, Transaxle Case, No.1[03.2005 - 05.2006] ACV30..5FC |
90341-08001 |
from US $1.48 |
||
|
35104S
|
35104S
90301-06196 O Ring, Transaxle Case, No.1[03.2005 - 05.2006] ACV30..5FC |
90301-06196 |
from US $2.36 |
||
|
35104V
|
35104V
35121-33010 Hose (For Breather Plug)[03.2005 - 05.2006] ACV30..5FC |
35121-33010 |
US $13.98 |
||
|
35104W
|
35104W
90250-10036 Pin, Straight (For Transaxle Case)[07.2003 - 05.2006] ACV30..4FC,5FC |
90250-10036 |
US $1.60 |
||
| replacement | |||||
|
35104W
|
35104W
90250-10232 Pin, Straight(For Engine Rear Oil Seal)[07.2003 - 05.2006] ACV30..4FC,5FC |
90250-10232 |
US $1.79 |
||
|
35104X
|
35104X
90301-06005 Ring, O (For Breather Plug)[07.2003 - 05.2006] ACV30,MCV31..4FC,5FC |
90301-06005 |
from US $2.24 |
||
|
35106A
|
35106A
90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)[07.2003 - 05.2006] ACV30,MCV31..4FC,5FC |
90341-18016 |
from US $1.92 |
||
|
35106B
|
35106B
90430-18008 Gasket[07.2003 - 05.2006] ACV30,MCV31..5FC |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
35106B
|
35106B
90430-T0021 Gasket(For Manual Transmission Filler Plug)[07.2003 - 05.2006] ACV30,MCV31..5FC |
90430-T0021 |
US $0.99 |
||
|
35106D
|
35106D
35106-33050 Pan Sub-Assy, Automatic Transaxle Oil[03.2005 - 05.2006] ACV30..5FC |
35106-33050 |
from US $44.84 |
||
|
35106E
|
35106E
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[03.2005 - 05.2006] ACV30..5FC |
90119-06173 |
from US $0.74 |
||
|
35111F
|
35111F
90105-06320
Bolt (For Transaxle Housing & Transaxle Case Setting)
[10.2006 - 08.2008] ACV30..5FC *6-1.00PX50-25 |
90105-06320 |
— | ||
|
35111F
|
35111F
90105-08233 Bolt (For Transaxle Housing & Transaxle Case Setting)[03.2005 - 05.2006] ACV30..5FC *8-1.25PX42-30 |
90105-08233 |
US $0.79 |
||
|
35111F
|
35111F
90105-08353 Bolt(For Head To Camshaft Bearing Cap)[03.2005 - 05.2006] ACV30..5FC *8-1.25PX50-30 |
90105-08353 |
from US $0.89 |
||
|
35148
|
35148
35145-21010 Gasket, Transaxle Case[01.2005 - 05.2006] ACV30,MCV31..5FC |
35145-21010 |
from US $5.23 |
||
|
35149B
|
35149B
35149-21010 Gasket, Transaxle Case 2Nd Brake[01.2005 - 05.2006] ACV30,MCV31..5FC |
35149-21010 |
from US $4.37 |
||
|
35151A
|
35151A
35151-33050 Cover, Transaxle Case, Upper[03.2005 - 01.2006] ACV30..5FC |
35151-33050 |
US $174.72 |
||
| replacement | |||||
|
35151A
|
35151A
35151-33120 Cover, Transaxle Case, Upper[03.2005 - 01.2006] ACV30..5FC |
35151-33120 |
from US $157.25 |
||
|
35151A
|
35151A
35151-33120 Cover, Transaxle Case, Upper[01.2006 - 05.2006] ACV30..5FC |
35151-33120 |
from US $157.25 |
||
|
35159
|
35159
35159-21010 Gasket, Brake Drum[01.2005 - 05.2006] ACV30,MCV31..5FC |
35159-21010 |
from US $6.99 |
||
|
35168A
|
35168A
35168-21020 Gasket, Automatic Transaxle Oil Pan[03.2005 - 05.2006] ACV30..5FC |
35168-21020 |
from US $9.41 |
||
|
35179
|
35179
35179-32010 Gasket, Overdrive Brake[03.2005 - 05.2006] ACV30..5FC |
35179-32010 |
US $8.67 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[07.2003 - 05.2006] ACV30,MCV31..5FC |
90301-09173 |
from US $1.96 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[03.2005 - 05.2006] ACV30..5FC |
35394-30011 |
from US $5.43 |
||
|
35519D
|
35519D
35519-41010 Label, Automatic Transmission Information[05.2006 - 08.2008] ACV30..5FC |
35519-41010 |
US $4.08 |
||
|
35519D
|
35519D
35519-52010 Label, Automatic Transmission Information[07.2003 - 05.2006] ACV30,MCV31..5FC |
35519-52010 |
US $4.51 |
||
|
9008011196
|
9008011196
90080-11196
New Genuine Part
|
90080-11196 |
— | ||
|
9008011339
|
9008011339
90080-11339 Bolt, Hexagon |
90080-11339 |
US $1.46 |
||
| replacement | |||||
|
9008011339
|
9008011339
91611-60628 Bolt, Hexagon |
91611-60628 |
US $1.51 |
||
|
9036425017
|
9036425017
90364-25017 New Genuine Part |
90364-25017 |
US $40.77 |
||
