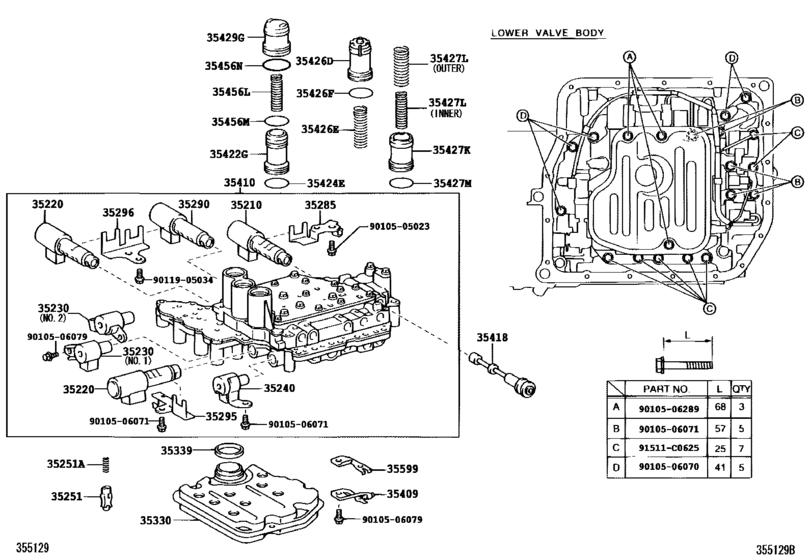

Valve Body & Oil Strainer (Atm) ([03.2005 - ] U250E (0503- )ACV30..5FC) Diagram Toyota SOLARA
- Year
- 2005 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 03.2005
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35210
|
35210
35210-45010 Solenoid Assy, Clutch Control, No.1[03.2005 - 05.2006] ACV30..5FC |
35210-45010 |
from US $122.76 |
||
|
35220
|
35220
35220-45010 Solenoid Assy, Clutch Control, No.2[03.2005 - 05.2006] ACV30..5FC |
35220-45010 |
from US $130.68 |
||
|
35230
|
35230
35230-33010 Solenoid Assy, Transmission 3Way, No.2[07.2003 - 05.2006] ACV30,MCV31..5FC NO.1 |
35230-33010 |
US $227.14 |
||
|
35230
|
35230
35230-33020 Solenoid Assy, Transmission 3Way, No.2[07.2003 - 05.2006] ACV30,MCV31..5FC NO.2 |
35230-33020 |
US $209.66 |
||
|
35240
|
35240
35240-33030 Solenoid Assy, Automatic Transmission 3Way[07.2003 - 05.2006] ACV30,MCV31..5FC |
35240-33030 |
US $209.66 |
||
|
35251
|
35251
35251-30020 Body, Check Ball[07.2003 - 05.2006] ACV30,MCV31..5FC |
35251-30020 |
US $14.50 |
||
|
35251A
|
35251A
90501-03005 Spring, Compression (For Check Ball Body)[01.2005 - 05.2006] ACV30,MCV31..5FC (J) |
90501-03005 |
from US $0.79 |
||
|
35285
|
35285
35285-45010 Plate, Solenoid Lock[03.2005 - 05.2006] ACV30..5FC |
35285-45010 |
US $3.64 |
||
|
35290
|
35290
35290-33030 Solenoid Assy, Line Pressure Control[03.2005 - 05.2006] ACV30..5FC |
35290-33030 |
US $136.86 |
||
| replacement | |||||
|
35290
|
35290
35290-45010 Solenoid Assy, Line Pressure Control[03.2005 - 05.2006] ACV30..5FC |
35290-45010 |
from US $139.90 |
||
|
35290
|
35290
35290-45010 Solenoid Assy, Line Pressure Control[07.2006 - 08.2008] ACV30..5FC |
35290-45010 |
from US $139.90 |
||
|
35295
|
35295
35295-45010 Plate, Solenoid Lock, No.2[03.2005 - 05.2006] ACV30..5FC |
35295-45010 |
US $4.37 |
||
|
35296
|
35296
35296-45010 Plate, Solenoid Lock, No.3[03.2005 - 05.2006] ACV30..5FC |
35296-45010 |
US $4.37 |
||
|
35330
|
35330
35330-08010 Strainer Assy, Valve Body Oil[07.2003 - 05.2006] ACV30,MCV31..5FC |
35330-08010 |
from US $58.03 |
||
|
35339
|
35339
90301-32010 O-ring (Gasket, Oil Strainer)[03.2005 - 05.2006] ACV30..5FC |
90301-32010 |
from US $2.39 |
||
|
35409
|
35409
35409-21010 Spring Sub-Assy, Manual Detent[07.2003 - 05.2006] ACV30,MCV31..5FC |
35409-21010 |
US $5.39 |
||
|
35410
|
35410
35410-33150 Body Assy, Transmission Valve[03.2005 - 05.2006] ACV30..5FC |
35410-33150 |
US $1,557.92 |
||
| replacement | |||||
|
35410
|
35410
35410-33131 Body Assy, Transmission Valve[03.2005 - 05.2006] ACV30..5FC |
35410-33131 |
from US $1,243.99 |
||
|
35410
|
35410
35410-33151 Body Assy, Transmission Valve[06.2006 - 08.2008] ACV30..5FC |
35410-33151 |
US $1,078.90 |
||
| replacement | |||||
|
35410
|
35410
35410-33131 Body Assy, Transmission Valve[06.2006 - 08.2008] ACV30..5FC |
35410-33131 |
from US $1,243.99 |
||
|
35418
|
35418
35418-33010
Valve, Manual
[07.2003 - 05.2006] ACV30,MCV31..5FC |
35418-33010 |
— | ||
|
35422G
|
35422G
35422-33050 Piston, Reverse Clutch Accumulator[03.2005 - 05.2006] ACV30..5FC |
35422-33050 |
US $10.92 |
||
|
35424E
|
35424E
90301-30007 Ring, O (For C-1 Accumulator Piston)[03.2005 - 05.2006] ACV30..5FC |
90301-30007 |
from US $2.53 |
||
|
35426D
|
35426D
35406-21010 Piston, C-3 Accumulator[03.2005 - 05.2006] ACV30..5FC |
35406-21010 |
from US $25.31 |
||
|
35426E
|
35426E
90501-22056 Spring, Compression (For C-3 Accumulator Piston)[03.2005 - 05.2006] ACV30..5FC |
90501-22056 |
US $2.80 |
||
|
35426F
|
35426F
90301-30007 Ring, O (For C-1 Accumulator Piston)[03.2005 - 05.2006] ACV30..5FC |
90301-30007 |
from US $2.53 |
||
|
35427K
|
35427K
35427-21010
Piston, B-3 Accumulator
[03.2005 - 05.2006] ACV30..5FC |
35427-21010 |
— | ||
|
35427L
|
35427L
90501-19037 Spring, Compression (For B-3 Accumulator Piston)[03.2005 - 05.2006] ACV30..5FC INNER |
90501-19037 |
US $1.40 |
||
|
35427L
|
35427L
90501-26096 Spring, Compression (For B-3 Accumulator Piston)[03.2005 - 05.2006] ACV30..5FC OUTER |
90501-26096 |
US $3.32 |
||
|
35427M
|
35427M
90301-28008 Ring, O (For C-2 Accumulator Piston)[07.2003 - 05.2006] ACV30,MCV31..4FC,5FC |
90301-28008 |
from US $2.34 |
||
|
35429G
|
35429G
35429-33020 Sleeve, Reverse Clutch Accumulator[03.2005 - 05.2006] ACV30..5FC |
35429-33020 |
US $9.90 |
||
|
35456L
|
35456L
90501-19038 Spring, Compression (For C-2 Control Valve)[03.2005 - 05.2006] ACV30..5FC |
90501-19038 |
US $1.40 |
||
|
35456M
|
35456M
90301-19016 Ring, O (For B-2 Accumulator Piston)[07.2003 - 05.2006] ACV30,MCV31..5FC |
90301-19016 |
US $2.80 |
||
|
35456N
|
35456N
90301-28011 Ring, O (For C-2 Control)[07.2003 - 05.2006] ACV30,MCV31..5FC |
90301-28011 |
US $3.32 |
||
|
35599
|
35599
35599-21010 Cover, Manual Detent Spring[07.2003 - 05.2006] ACV30,MCV31..5FC |
35599-21010 |
US $3.06 |
||
|
91511C0625
|
91511C0625
91511-C0625
Bolt(For Cylinder Head Cover)
|
91511-C0625 |
— | ||
| replacement | |||||
|
91511C0625
|
91511C0625
91551-A0625 Bolt(For Cylinder Head Cover) |
91551-A0625 |
US $1.08 |
||
|
9010505023
|
9010505023
90105-05023 New Genuine Part |
90105-05023 |
US $1.02 |
||
|
9010506070
|
9010506070
90105-06070 New Genuine Part |
90105-06070 |
US $1.46 |
||
|
9010506071
|
9010506071
90105-06071 New Genuine Part |
90105-06071 |
US $1.46 |
||
|
9010506079
|
9010506079
90105-06079 BOLT |
90105-06079 |
US $0.52 |
||
|
9010506289
|
9010506289
90105-06289 New Genuine Part |
90105-06289 |
US $1.16 |
||
|
9011905034
|
9011905034
90119-05034 New Genuine Part |
90119-05034 |
US $0.87 |
||
