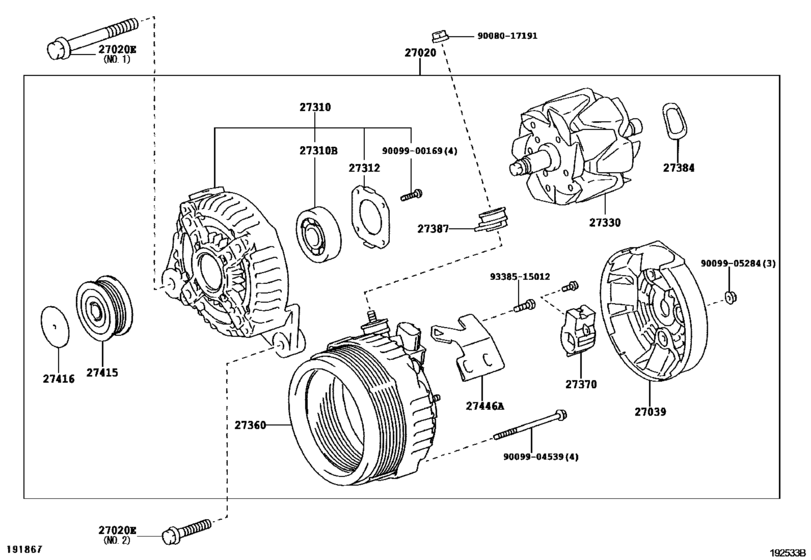

Alternator ([05.2006 - 08.2008] 12V 100A (0605-0808)2AZFE) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5F
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-0H100
Alternator Assy
[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC 12V 100A |
27060-0H100 |
— | ||
|
27020
|
27020
27060-0H110
Alternator Assy
[05.2006 - 08.2008] 2AZFE..ACV30 12V 100A |
27060-0H110 |
— | ||
| replacement | |||||
|
27020
|
27020
27060-0H111
Alternator Assy
[05.2006 - 08.2008] 2AZFE..ACV30 12V 100A |
27060-0H111 |
— | ||
|
27020E
|
27020E
90080-10111
Bolt(For Alternator)
[07.2003 - 05.2006] 2AZFE..ACV30 NO.1,(L) |
90080-10111 |
— | ||
|
27020E
|
27020E
90080-10250
Bolt(For Alternator)
[07.2003 - 05.2006] 2AZFE..ACV30 NO.2,(L) |
90080-10250 |
— | ||
|
27020E
|
27020E
90105-A0145
Bolt(For Alternator)
[05.2006 - 08.2008] 2AZFE..ACV30 NO.2,(L) |
90105-A0145 |
— | ||
|
27020E
|
27020E
91511-J0840 Bolt(For Alternator)[07.2003 - 05.2006] 2AZFE..ACV30 NO.2,(J) |
91511-J0840 |
from US $1.41 |
||
|
27020E
|
27020E
91512-81085 Bolt(For Alternator)[07.2003 - 05.2006] 2AZFE..ACV30 NO.1,(J) |
91512-81085 |
from US $0.84 |
||
|
27020E
|
27020E
91551-80840 Bolt(For Head To Camshaft Bearing Cap)[05.2006 - 08.2008] 2AZFE..ACV30 NO.2,(J) |
91551-80840 |
US $2.15 |
||
|
27039
|
27039
27039-0A110
Cover, Alternator Rear End
[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31..5F,5FC |
27039-0A110 |
— | ||
|
27310
|
27310
27310-0H060
Frame Assy, Drive End, Alternator
[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC |
27310-0H060 |
— | ||
|
27310B
|
27310B
90068-10033
Bearing(For Alternator Drive End Frame)
[05.2007 - 08.2008] 2AZFE,3MZFE..ACV30,MCV31..CP |
90068-10033 |
— | ||
|
27310B
|
27310B
90068-10142 Bearing(For Alternator Drive End Frame)[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31 |
90068-10142 |
US $24.90 |
||
|
27312
|
27312
27312-72100
Plate, Bearing Retainer, Alternator
[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31..5F,5FC |
27312-72100 |
— | ||
|
27330
|
27330
27330-0F060
Rotor Assy, Alternator
[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31..5F,5FC |
27330-0F060 |
— | ||
|
27360
|
27360
27360-0H060
Coil Assy, Alternator
[07.2003 - 05.2006] 2AZFE..ACV30..5F,5FC |
27360-0H060 |
— | ||
|
27360
|
27360
27360-0H070
Coil Assy, Alternator
[05.2006 - 08.2008] 2AZFE..ACV30 |
27360-0H070 |
— | ||
|
27370
|
27370
27370-0F060
Holder Assy, Alternator Brush
[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31..5F,5FC |
27370-0F060 |
— | ||
|
27384
|
27384
27384-0A020 Washer[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31..5F,5FC |
27384-0A020 |
US $9.32 |
||
|
27387
|
27387
27387-0F060
Insulator, Terminal
[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31..5F,5FC |
27387-0F060 |
— | ||
|
27387
|
27387
27387-20130 Insulator, Terminal[05.2006 - 08.2008] 2AZFE..ACV30 |
27387-20130 |
from US $4.02 |
||
|
27415
|
27415
27415-0W040
Pulley, Alternator W/clutch
[05.2006 - 08.2008] 2AZFE..ACV30 |
27415-0W040 |
— | ||
| replacements | |||||
|
27415
|
27415
27415-0W042 Pulley, Alternator W/clutch[05.2006 - 08.2008] 2AZFE..ACV30 |
27415-0W042 |
from US $57.10 |
||
|
27415
|
27415
27416-0W050 Cap, Alternator Pulley[05.2006 - 08.2008] 2AZFE..ACV30 |
27416-0W050 |
from US $3.74 |
||
|
27416
|
27416
27416-0W020 Cap, Alternator Pulley[05.2006 - 08.2008] 2AZFE..ACV30 |
27416-0W020 |
US $6.09 |
||
|
27446A
|
27446A
27446-28120
Clip, Alternator Cord
[05.2006 - 08.2008] 2AZFE..ACV30 |
27446-28120 |
— | ||
|
9008017191
|
9008017191
90080-17191
New Genuine Part
|
90080-17191 |
— | ||
|
9009900169
|
9009900169
90099-00169
New Genuine Part
|
90099-00169 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.39 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9338515012
|
9338515012
93385-15012 SCREW |
93385-15012 |
US $2.87 |
||
