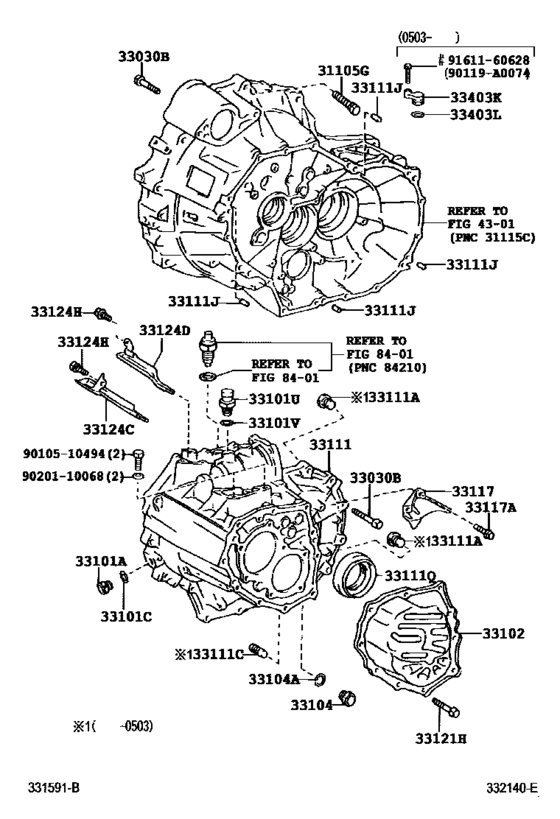

Clutch Housing & Transmission Case (Mtm) ([07.2003 - ] E351 (0307- )5F) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5F
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
90080-10133
Bolt(For Transaxle Case & Engine Setting)
[07.2003 - 05.2006] ACV30..5F *12-1.25PX74.5-25,(L) |
90080-10133 |
— | ||
|
31105G
|
31105G
90080-10207
Bolt(For Transaxle & Engine Setting)
[03.2005 - 05.2006] ACV30..5F *10-1.25PX65-30,(L) |
90080-10207 |
— | ||
|
31105G
|
31105G
90080-11417 Bolt(For Transaxle Case & Engine Setting)[07.2003 - 05.2006] ACV30..5F *12-1.25PX60-30,(L) |
90080-11417 |
US $2.48 |
||
|
31105G
|
31105G
90105-12147 Bolt(For Transaxle Case & Engine Setting)[07.2003 - 05.2006] ACV30..5F *12-1.25PX74.5-25,(J) |
90105-12147 |
US $4.08 |
||
|
31105G
|
31105G
90119-12252 Bolt(For Transaxle Case & Engine Setting)[07.2003 - 05.2006] ACV30..5F *12-1.25PX60-30,(J) |
90119-12252 |
US $2.48 |
||
|
31105G
|
31105G
91512-61060 Bolt(For Transaxle Case & Engine Setting)[07.2003 - 05.2006] ACV30..5F *10-1.25PX60-30 |
91512-61060 |
US $3.94 |
||
|
31105G
|
31105G
91512-61065 Bolt(For Transaxle & Engine Setting)[07.2003 - 05.2006] ACV30..5F *10-1.25PX65-30,(J) |
91512-61065 |
US $2.62 |
||
|
33030B
|
33030B
90105-08126 Bolt(For Transaxle Case & Transmission Case Setting)[07.2003 - 05.2006] ACV30..5F *8-1.25PX45-27.5 |
90105-08126 |
US $3.40 |
||
|
33101A
|
33101A
90341-18033 Plug(For Manual Transmission Filler)[07.2003 - 05.2006] ACV30..5F |
90341-18033 |
from US $3.40 |
||
|
33101C
|
33101C
90430-18008 Gasket[07.2003 - 05.2006] ACV30..5F |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[07.2003 - 05.2006] ACV30..5F |
90430-T0021 |
US $0.99 |
||
|
33101U
|
33101U
90930-03148 Plug, Breather(For Manual Transmission)[07.2003 - 05.2006] ACV30..5F |
90930-03148 |
US $23.41 |
||
|
33101V
|
33101V
90430-18008 Gasket[07.2003 - 05.2006] ACV30..5F |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33101V
|
33101V
90430-T0021 Gasket(For Manual Transmission Filler Plug)[07.2003 - 05.2006] ACV30..5F |
90430-T0021 |
US $0.99 |
||
|
33102
|
33102
33102-33011 Cover Sub-Assy, Manual Transmission CaseMANUAL TRANSMISSION CASE [07.2003 - 04.2004] ACV30..5F |
33102-33011 |
US $203.84 |
||
| replacement | |||||
|
33102
|
33102
33102-33012 Cover Sub-Assy, Manual Transmission CaseMANUAL TRANSMISSION CASE [07.2003 - 04.2004] ACV30..5F |
33102-33012 |
US $160.74 |
||
|
33102
|
33102
33102-33012 Cover Sub-Assy, Manual Transmission CaseMANUAL TRANSMISSION CASE [04.2004 - 05.2006] ACV30..5F |
33102-33012 |
US $160.74 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[07.2003 - 05.2006] ACV30..5F |
90341-18006 |
from US $3.23 |
||
|
33104A
|
33104A
90430-18008 Gasket[07.2003 - 05.2006] ACV30..5F |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[07.2003 - 05.2006] ACV30..5F |
90430-T0021 |
US $0.99 |
||
|
33111
|
33111
33101-20090 Case, Manual Transmission[07.2003 - 05.2006] ACV30..5F |
33101-20090 |
US $550.37 |
||
|
33111A
|
33111A
90341-12004 Plug, Oil Pan(For Oil Cooler)[07.2003 - 03.2005] ACV30..5F |
90341-12004 |
US $2.51 |
||
|
33111C
|
33111C
90340-10005 Plug(For Transmission Case)[07.2003 - 03.2005] ACV30..5F |
90340-10005 |
US $3.06 |
||
|
33111J
|
33111J
90250-08054 Pin, Straight[07.2003 - 05.2006] ACV30..5F L=23,OD=8 |
90250-08054 |
from US $0.95 |
||
|
33111Q
|
33111Q
90311-50024
Oil Seal, Front Drive Shaft, Lh
[07.2003 - 09.2005] ACV30..5F |
90311-50024 |
— | ||
| replacement | |||||
|
33111Q
|
33111Q
90311-50047 Seal, Oil(For Transmission Case)[07.2003 - 09.2005] ACV30..5F |
90311-50047 |
from US $9.32 |
||
|
33111Q
|
33111Q
90311-50035 Seal, Oil(For Transmission Case)OIL(FOR TRANSMISSION CASE) [09.2005 - 05.2006] ACV30..5F |
90311-50035 |
US $7.57 |
||
| replacement | |||||
|
33111Q
|
33111Q
90311-50047 Seal, Oil(For Transmission Case)[09.2005 - 05.2006] ACV30..5F |
90311-50047 |
from US $9.32 |
||
|
33117
|
33117
33107-12030 Protector, Manual Transmission CaseMANUAL TRANSMISSION CASE [07.2003 - 05.2006] ACV30..5F |
33107-12030 |
US $9.46 |
||
|
33117A
|
33117A
90080-10083
Bolt(For Automatic Transmission Case Protector)
[07.2003 - 05.2006] ACV30..5F (L) |
90080-10083 |
— | ||
|
33117A
|
33117A
91641-H0820 Bolt[07.2003 - 05.2006] ACV30..5F (J) |
91641-H0820 |
from US $0.80 |
||
|
33121H
|
33121H
90105-08273 Bolt, W/washer(For Transmission Case Cover)[07.2003 - 05.2006] ACV30..5F |
90105-08273 |
US $1.65 |
||
|
33124C
|
33124C
33124-28050 Pipe, Oil Receiver, No.1(Mtm)[07.2003 - 05.2006] ACV30..5F |
33124-28050 |
US $10.48 |
||
|
33124D
|
33124D
33124-28060 Pipe, Oil Receiver, No.2(Mtm)[07.2003 - 05.2006] ACV30..5F |
33124-28060 |
US $10.63 |
||
|
33124H
|
33124H
90119-08830 Bolt(For Oil Receiver Pipe)[07.2003 - 05.2006] ACV30..5F |
90119-08830 |
US $1.79 |
||
| replacement | |||||
|
33124H
|
33124H
47327-60232 Tube, Rear Brake, No.7[07.2003 - 05.2006] ACV30..5F |
47327-60232 |
US $16.13 |
||
|
33403K
|
33403K
33403-20230 Cover Sub-Assy, Speedometer Driven Hole[03.2005 - 05.2006] ACV30..5F |
33403-20230 |
US $13.80 |
||
|
33403L
|
33403L
96711-24018 Ring, O[03.2005 - 05.2006] ACV30..5F |
96711-24018 |
from US $2.17 |
||
|
90119A0074
|
90119A0074
90119-A0074
Bolt, Hexagon
|
90119-A0074 |
— | ||
| replacement | |||||
|
90119A0074
|
90119A0074
91611-60628 Bolt, Hexagon |
91611-60628 |
US $1.51 |
||
|
9010510494
|
9010510494
90105-10494 BOLT FLANGE |
90105-10494 |
US $1.79 |
||
|
9020110068
|
9020110068
90201-10068 New Genuine Part |
90201-10068 |
US $1.61 |
||
|
9161160628
|
9161160628
91611-60628 Bolt, Hexagon |
91611-60628 |
US $1.51 |
||
