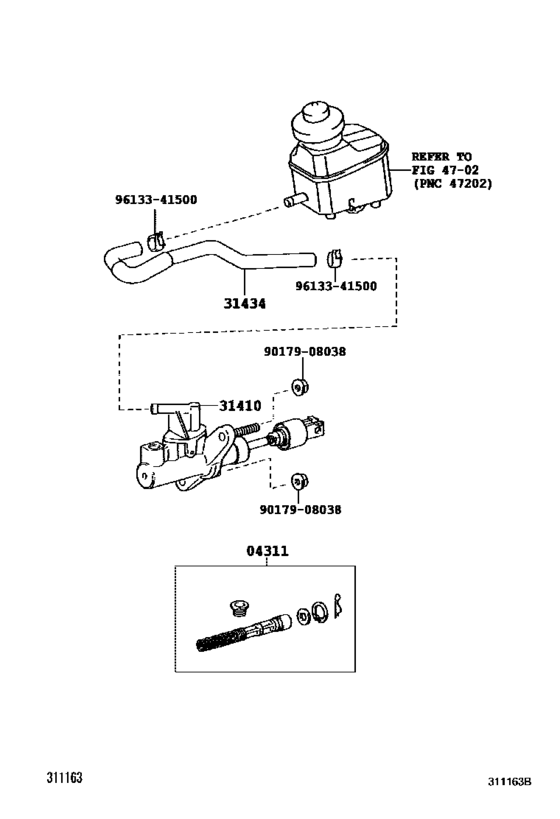

Clutch Master Cylinder ([07.2003 - ] (0307- )5F) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5F
- Vehicle Model
- SOLARA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04311
|
04311
04311-12110 Cylinder Kit, Clutch Master[07.2003 - 05.2006] ACV30..5F |
04311-12110 |
from US $22.76 |
||
|
31410
|
31410
31420-20070 Cylinder Assy, Clutch MasterCLUTCH MASTER [07.2003 - 05.2006] ACV30..5F |
31420-20070 |
US $110.12 |
||
|
31434
|
31434
31434-33030 Tube, Clutch ReservoirCLUTCH RESERVOIR [07.2003 - 05.2006] ACV30..5F |
31434-33030 |
US $57.37 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9613341500
|
9613341500
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.26 |
