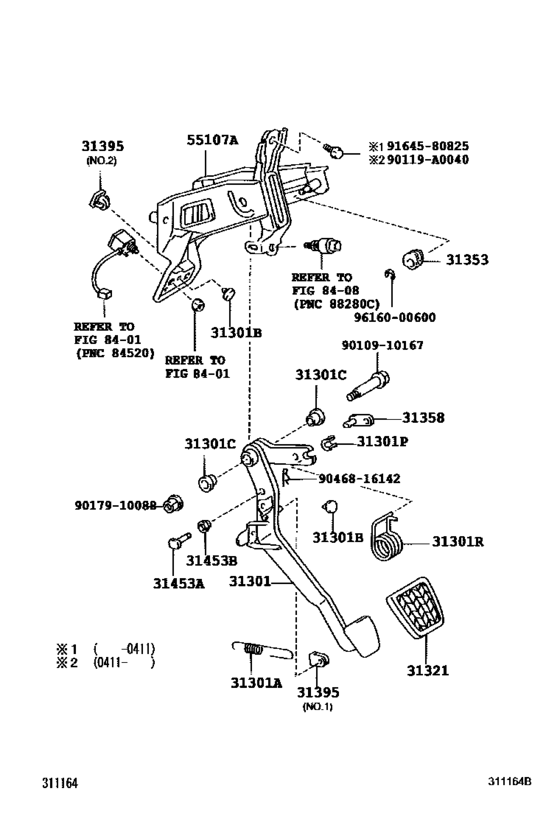

Clutch Pedal & Flexible Hose ([07.2003 - ] (0307- )5F) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5F
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-33040
Pedal Sub-Assy, Clutch
[07.2003 - 05.2006] ACV30..5F |
31301-33040 |
— | ||
|
31301A
|
31301A
90905-07033 Spring(For Clutch Pedal)[07.2003 - 05.2006] ACV30..5F |
90905-07033 |
US $3.06 |
||
|
31301B
|
31301B
90541-06032
Cushion, No.1(For Clutch Pedal)
[07.2003 - 05.2006] ACV30..5F |
90541-06032 |
— | ||
| replacement | |||||
|
31301B
|
31301B
90541-06036 Cushion, No.1(For Clutch Pedal)[07.2003 - 05.2006] ACV30..5F |
90541-06036 |
from US $0.87 |
||
|
31301B
|
31301B
90541-06036 Cushion, No.1(For Clutch Pedal)[05.2006 - 08.2008] ACV30..5F |
90541-06036 |
from US $0.87 |
||
|
31301C
|
31301C
90386-13015 Bush(For Clutch Pedal)[07.2003 - 05.2006] ACV30..5F |
90386-13015 |
from US $1.29 |
||
|
31301P
|
31301P
90389-06055 Bush(For Clutch Pedal Turnover)[07.2003 - 05.2006] ACV30..5F |
90389-06055 |
from US $1.79 |
||
|
31301R
|
31301R
90949-03110 Spring, Compression(For Turn Over Spring Seat)COMPRESSION(FOR TURN OVER SPRING SEAT) [07.2003 - 05.2006] ACV30..5F |
90949-03110 |
US $12.23 |
||
|
31321
|
31321
31321-52010 Pad, Brake Pedal[07.2003 - 05.2006] ACV30..5F |
31321-52010 |
from US $1.94 |
||
|
31353
|
31353
31353-35010 Holder, Clutch Pedal Spring[07.2003 - 05.2006] ACV30..5F |
31353-35010 |
from US $7.02 |
||
|
31358
|
31358
31358-42010 Cap, Over Center Spring[07.2003 - 05.2006] ACV30..5F |
31358-42010 |
US $7.71 |
||
|
31395
|
31395
31395-33010 Hook, Pedal Spring[07.2003 - 05.2006] ACV30..5F NO.1 |
31395-33010 |
US $1.51 |
||
|
31395
|
31395
31395-33020 Hook, Pedal Spring[07.2003 - 05.2006] ACV30..5F NO.2 |
31395-33020 |
US $1.10 |
||
|
31453A
|
31453A
90249-08051 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[05.2005 - 05.2006] ACV30..5F L=31.5 |
90249-08051 |
US $3.05 |
||
|
31453A
|
31453A
90249-08143 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[07.2003 - 04.2005] ACV30..5F L=30 |
90249-08143 |
US $2.97 |
||
|
31453B
|
31453B
90386-08033 Bush(For Clutch Master Cylinder Push Rod Clevis)[07.2003 - 05.2006] ACV30..5F |
90386-08033 |
from US $1.25 |
||
|
55107A
|
55107A
55107-33040
Support Sub-Assy, Clutch Pedal
[07.2003 - 05.2006] ACV30..5F |
55107-33040 |
— | ||
|
90119A0040
|
90119A0040
90119-A0040
New Genuine Part
|
90119-A0040 |
— | ||
|
9010910167
|
9010910167
90109-10167 Shaft, Clutch Pedal |
90109-10167 |
US $3.40 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.97 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.80 |
||
|
9164580825
|
9164580825
91645-80825 BOLT WWASHER |
91645-80825 |
US $1.79 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.82 |
||
