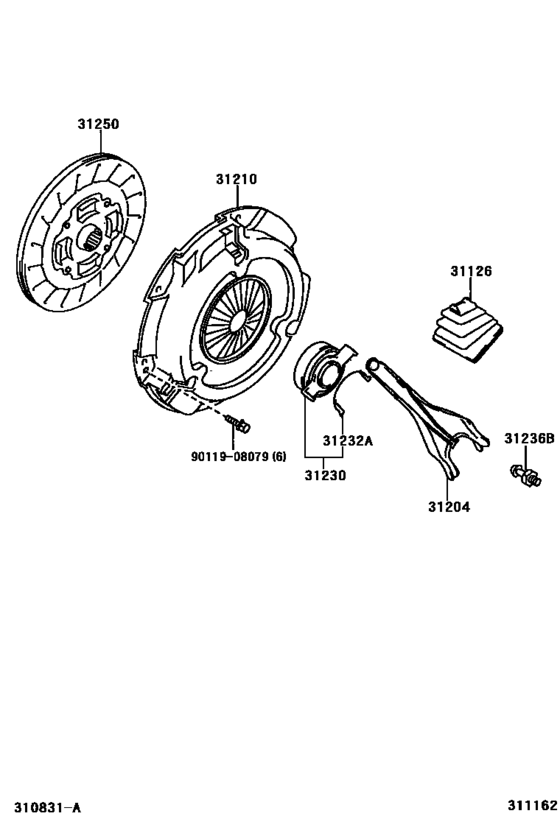

Clutch & Release Fork ([07.2003 - ] (0307- )5F) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5F
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-32010 Boot, Clutch Release Fork[07.2003 - 05.2006] ACV30..5F |
31126-32010 |
from US $11.44 |
||
|
31204
|
31204
31204-20100 Fork Sub-Assy, Clutch Release[07.2003 - 05.2006] ACV30..5F |
31204-20100 |
from US $29.64 |
||
|
31210
|
31210
31210-28060 Cover Assy, ClutchCLUTCH [07.2003 - 09.2005] ACV30..5F |
31210-28060 |
US $214.03 |
||
| replacement | |||||
|
31210
|
31210
31210-33042 Cover Assy, ClutchCLUTCH [07.2003 - 09.2005] ACV30..5F |
31210-33042 |
from US $176.64 |
||
|
31210
|
31210
31210-33040 Cover Assy, ClutchCLUTCH [10.2005 - 05.2006] ACV30..5F |
31210-33040 |
US $214.03 |
||
| replacement | |||||
|
31210
|
31210
31210-33042 Cover Assy, ClutchCLUTCH [10.2005 - 05.2006] ACV30..5F |
31210-33042 |
from US $176.64 |
||
|
31210
|
31210
31210-33041 Cover Assy, ClutchCLUTCH [03.2007 - 04.2007] ACV30..5F |
31210-33041 |
US $214.03 |
||
| replacement | |||||
|
31210
|
31210
31210-33042 Cover Assy, ClutchCLUTCH [03.2007 - 04.2007] ACV30..5F |
31210-33042 |
from US $176.64 |
||
|
31210
|
31210
31210-33042 Cover Assy, ClutchCLUTCH [04.2007 - 08.2008] ACV30..5F |
31210-33042 |
from US $176.64 |
||
|
31230
|
31230
31230-20170 Bearing Assy, Clutch Release[07.2003 - 05.2006] ACV30..5F |
31230-20170 |
from US $43.55 |
||
|
31230
|
31230
31230-33020 Bearing Assy, Clutch Release[07.2006 - 08.2008] ACV30..5F |
31230-33020 |
from US $45.66 |
||
|
31232A
|
31232A
31232-20020 Clip, Release Bearing Hub[07.2003 - 05.2006] ACV30..5F |
31232-20020 |
from US $1.46 |
||
|
31236B
|
31236B
31236-20060 Ball, Release Fork[05.2006 - 08.2008] ACV30..5F |
31236-20060 |
from US $8.65 |
||
|
31236B
|
31236B
31236-20061 Ball, Release Fork[07.2003 - 05.2006] ACV30..5F |
31236-20061 |
US $6.99 |
||
| replacement | |||||
|
31236B
|
31236B
31236-20060 Ball, Release Fork[07.2003 - 05.2006] ACV30..5F |
31236-20060 |
from US $8.65 |
||
|
31250
|
31250
31250-28180 Disc Assy, Clutch[07.2003 - 10.2005] ACV30..5F |
31250-28180 |
US $235.87 |
||
| replacement | |||||
|
31250
|
31250
31250-33061 Disc Assy, Clutch[07.2003 - 10.2005] ACV30..5F |
31250-33061 |
from US $186.95 |
||
|
31250
|
31250
31250-28181 Disc Assy, ClutchCLUTCH [11.2005 - 05.2006] ACV30..5F |
31250-28181 |
US $214.03 |
||
| replacement | |||||
|
31250
|
31250
31250-33061 Disc Assy, Clutch[11.2005 - 05.2006] ACV30..5F |
31250-33061 |
from US $186.95 |
||
|
31250
|
31250
31250-33040
Disc Assy, Clutch
[05.2006 - 08.2008] ACV30..5F |
31250-33040 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-33041 Disc Assy, Clutch[05.2006 - 08.2008] ACV30..5F |
31250-33041 |
US $214.03 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.63 |
||
