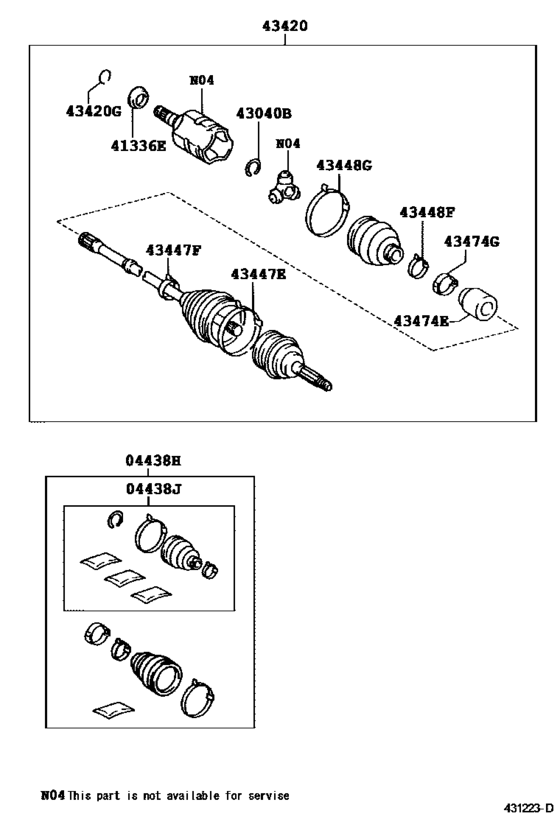

Front Drive Shaft ([07.2003 - ] LH (0307- )ACV30) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5F
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04428-06340
Boot Kit, Front Drive Shaft, In & Outboard, Lh
[05.2006 - 08.2008] ACV30..5F |
04428-06340 |
— | ||
|
04438H
|
04438H
04438-06420
Boot Kit, Front Drive Shaft, In & Outboard, Lh
[07.2003 - 05.2006] ACV30..5F |
04438-06420 |
— | ||
|
04438J
|
04438J
04438-06400 Boot Kit, Front Drive Shaft Inboard Joint, RhFRONT DRIVE SHAFT INBOARD JOINT, LH [07.2003 - 05.2006] ACV30..5F |
04438-06400 |
US $87.36 |
||
|
41336E
|
41336E
41336-06060
Cover, Front Drive Shaft Dust, Lh
[07.2003 - 05.2006] ACV30..5F,5FC |
41336-06060 |
— | ||
|
43040B
|
43040B
90080-52118 Ring, Hole Snap (For Front Drive Inboard Joint Rh)[07.2003 - 05.2006] ACV30..5F,5FC |
90080-52118 |
US $1.60 |
||
|
43420
|
43420
43420-06460
Shaft Assy, Front Drive, Lh
[07.2003 - 05.2006] ACV30..5F |
43420-06460 |
— | ||
|
43420G
|
43420G
90080-52017
Ring, Hole Snap (For Front Drive Shaft Lh)
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90080-52017 |
— | ||
|
43447E
|
43447E
42345-06080
Clamp (For Front Axle Outboard Joint Boot Rh)
[07.2003 - 05.2006] ACV30..5F |
42345-06080 |
— | ||
|
43447F
|
43447F
42345-04030 Clamp (For Front Axle Outboard Joint Boot Rh)[07.2003 - 05.2006] MCV31;ACV30..5F |
42345-04030 |
US $2.48 |
||
|
43448F
|
43448F
42345-07020 Clamp (For Front Axle Inboard Joint Boot Rh)[07.2003 - 05.2006] ACV30..5F,5FC |
42345-07020 |
US $3.49 |
||
|
43448G
|
43448G
42345-07010 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)[07.2003 - 05.2006] ACV30..5F,5FC |
42345-07010 |
US $5.24 |
