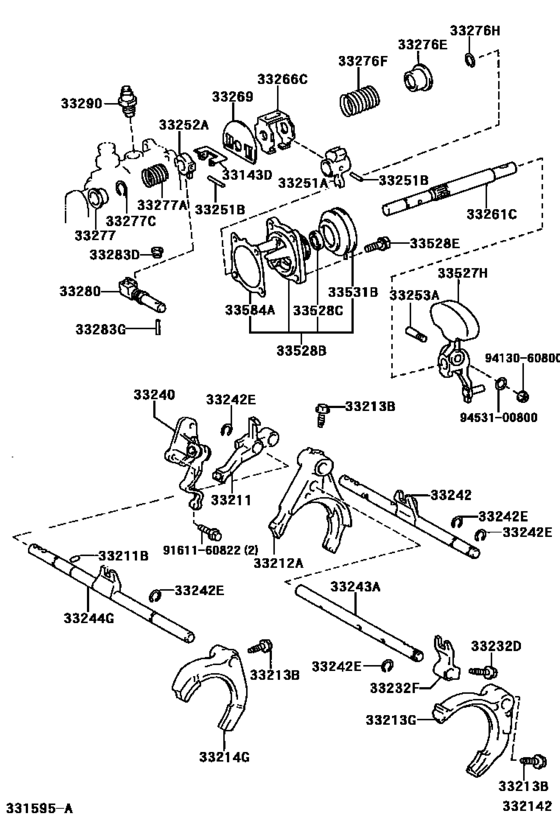

Gear Shift Fork & Lever Shaft (Mtm) ([07.2003 - 11.2003] E351 (0307-0311)5F) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5F
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33143D
|
33143D
33143-20050 Baffle, Transmission Oil[07.2003 - 05.2006] ACV30..5F |
33143-20050 |
US $5.10 |
||
|
33211
|
33211
33211-20020 Fork, Reverse Shift[07.2003 - 05.2006] ACV30..5F |
33211-20020 |
US $31.16 |
||
|
33211B
|
33211B
90361-08005 Roller(For Reverse Shift Fork)[07.2003 - 05.2006] ACV30..5F |
90361-08005 |
US $3.32 |
||
|
33212A
|
33212A
33212-12030
Fork, Gear Shift, No.1
[07.2003 - 05.2006] ACV30..5F |
33212-12030 |
— | ||
|
33213B
|
33213B
90105-07002 Bolt(For Shift Fork Set)[07.2003 - 05.2006] ACV30..5F |
90105-07002 |
US $1.61 |
||
|
33213G
|
33213G
33220-28020
Fork, Gear Shift, No.2
[07.2003 - 05.2006] ACV30..5F |
33220-28020 |
— | ||
|
33214G
|
33214G
33214-12020 Fork, Gear Shift, No.3[07.2003 - 05.2006] ACV30..5F |
33214-12020 |
from US $48.05 |
||
|
33232D
|
33232D
90105-07002 Bolt(For Shift Fork Set)[07.2003 - 05.2006] ACV30..5F |
90105-07002 |
US $1.61 |
||
|
33232F
|
33232F
33232-12030
Head, Gear Shift, No.1
[07.2003 - 05.2006] ACV30..5F |
33232-12030 |
— | ||
|
33240
|
33240
33240-28010 Bracket Assy, Reverse Shift Arm[07.2003 - 05.2006] ACV30..5F |
33240-28010 |
US $64.50 |
||
|
33242
|
33242
33242-21010
Shaft, Gear Shift Fork, No.1
[07.2007 - 08.2008] ACV30..5F |
33242-21010 |
— | ||
|
33242
|
33242
33242-28030 Shaft, Gear Shift Fork, No.1[07.2003 - 09.2005] ACV30..5F |
33242-28030 |
US $57.22 |
||
|
33242
|
33242
33242-42010
Shaft, Gear Shift Fork, No.1
[09.2005 - 05.2006] ACV30..5F |
33242-42010 |
— | ||
|
33242E
|
33242E
90520-13002 Ring, Shaft Snap (For Shift Fork Shaft)[07.2003 - 05.2006] ACV30..5F |
90520-13002 |
from US $1.43 |
||
|
33243A
|
33243A
33243-28040 Shaft, Gear Shift Fork, No.2[07.2003 - 05.2006] ACV30..5F |
33243-28040 |
US $39.46 |
||
|
33244G
|
33244G
33244-28030 Shaft, Gear Shift Fork, No.3[07.2003 - 09.2005] ACV30..5F |
33244-28030 |
US $57.22 |
||
|
33244G
|
33244G
33244-42010
Shaft, Gear Shift Fork, No.3
[09.2005 - 05.2006] ACV30..5F |
33244-42010 |
— | ||
|
33251A
|
33251A
33251-20090
Lever, Shift, Inner No.1
[07.2003 - 01.2006] ACV30..5F |
33251-20090 |
— | ||
|
33251A
|
33251A
33251-42010
Lever, Shift, Inner No.1
[01.2006 - 05.2006] ACV30..5F |
33251-42010 |
— | ||
|
33251B
|
33251B
90254-05007 Pin, Slotted Spring (For Shift Inner Lever)[07.2003 - 05.2006] ACV30..5F L=47.0 |
90254-05007 |
US $3.68 |
||
|
33251B
|
33251B
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[07.2003 - 05.2006] ACV30..5F L=25.5 |
90254-05016 |
from US $1.90 |
||
|
33252A
|
33252A
33252-20050 Lever, Shift, Inner No.2[07.2003 - 11.2003] ACV30..5F |
33252-20050 |
US $10.48 |
||
| replacement | |||||
|
33252A
|
33252A
33252-20051 Lever, Shift, Inner No.2[07.2003 - 11.2003] ACV30..5F |
33252-20051 |
US $10.48 |
||
|
33252A
|
33252A
33252-20051 Lever, Shift, Inner No.2[11.2003 - 05.2006] ACV30..5F |
33252-20051 |
US $10.48 |
||
|
33253A
|
33253A
33281-16020 Pin, Lever Lock (For Shift Outer Lever)[07.2003 - 05.2006] ACV30..5F |
33281-16020 |
from US $1.31 |
||
|
33261C
|
33261C
33261-20130 Shaft, Shift & Select Lever[07.2003 - 05.2006] ACV30..5F |
33261-20130 |
US $87.36 |
||
| replacement | |||||
|
33261C
|
33261C
33261-20131 Shaft, Shift & Select LeverSHIFT & SELECT LEVER [07.2003 - 05.2006] ACV30..5F |
33261-20131 |
US $72.51 |
||
|
33266C
|
33266C
33266-28010
Plate, Shift Inter Lock
[07.2003 - 11.2003] ACV30..5F |
33266-28010 |
— | ||
| replacement | |||||
|
33266C
|
33266C
33266-28011
Plate, Shift Inter Lock
[07.2003 - 11.2003] ACV30..5F |
33266-28011 |
— | ||
|
33266C
|
33266C
33266-28011
Plate, Shift Inter Lock
[11.2003 - 05.2006] ACV30..5F |
33266-28011 |
— | ||
|
33269
|
33269
33269-12010 Cover, Shift Inter Lock Plate[07.2003 - 05.2006] ACV30..5F |
33269-12010 |
US $2.33 |
||
|
33276E
|
33276E
33276-20030 Seat, Select Spring, No.1[07.2003 - 05.2006] ACV30..5F |
33276-20030 |
US $3.49 |
||
|
33276F
|
33276F
90501-14196
Spring, Compression, No.1 (For Select Return)
[01.2006 - 05.2006] ACV30..5F |
90501-14196 |
— | ||
|
33276F
|
33276F
90501-16182 Spring, Compression, No.1 (For Select Return)[07.2003 - 01.2006] ACV30..5F |
90501-16182 |
US $3.06 |
||
|
33276H
|
33276H
90520-15003 Ring, Shaft Snap (For Select Spring No.1 Seat)[07.2003 - 05.2006] ACV30..5F |
90520-15003 |
US $0.79 |
||
|
33277
|
33277
33277-17010 Seat, Select Spring, No.2[07.2003 - 05.2006] ACV30..5F |
33277-17010 |
US $9.43 |
||
|
33277A
|
33277A
90501-14175
Spring, Compression, No.2 (For Select Return)
[07.2003 - 05.2006] ACV30..5F |
90501-14175 |
— | ||
|
33277C
|
33277C
90520-12003 Ring(For Reverse Shift Head)[07.2003 - 05.2006] ACV30..5F |
90520-12003 |
from US $0.89 |
||
|
33280
|
33280
33280-20041
Pin Assy, Reverse Restrict
[07.2003 - 05.2006] ACV30..5F |
33280-20041 |
— | ||
|
33283D
|
33283D
90341-10065 Plug, Straight, No.1[07.2003 - 05.2006] ACV30..5F |
90341-10065 |
US $3.94 |
||
|
33283G
|
33283G
90254-05003 Pin, Slotted Spring(For Shift Fork Set)[07.2003 - 05.2006] ACV30..5F |
90254-05003 |
US $0.70 |
||
|
33290
|
33290
33290-33020 Ball Assy, Lock, No.1[07.2003 - 09.2005] ACV30..5F |
33290-33020 |
US $21.49 |
||
|
33290
|
33290
33290-42010
Ball Assy, Lock, No.1
[09.2005 - 05.2006] ACV30..5F |
33290-42010 |
— | ||
|
33527H
|
33527H
33527-28130 Lever, Control Shift[07.2003 - 05.2006] ACV30..5F |
33527-28130 |
US $49.21 |
||
|
33528B
|
33528B
33506-20320 Cover, Control Shaft[07.2003 - 05.2006] ACV30..5F |
33506-20320 |
US $36.50 |
||
|
33528C
|
33528C
90311-18013 Seal, Oil (For Control Shaft Cover)[07.2003 - 05.2006] ACV30..5F |
90311-18013 |
from US $2.32 |
||
|
33528E
|
33528E
90119-10288 Bolt (For Control Shaft Cover)[07.2003 - 05.2006] ACV30..5F *10-1.25PX25-19.8 |
90119-10288 |
US $0.70 |
||
|
33531B
|
33531B
33531-12020 Boot, Dust (For Shift & Select Lever Shaft)[07.2003 - 05.2006] ACV30..5F |
33531-12020 |
from US $9.41 |
||
|
33584A
|
33584A
33584-20020
Gasket, Control Shift Lever Retainer
[07.2003 - 05.2006] ACV30..5F |
33584-20020 |
— | ||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.67 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.84 |
||
