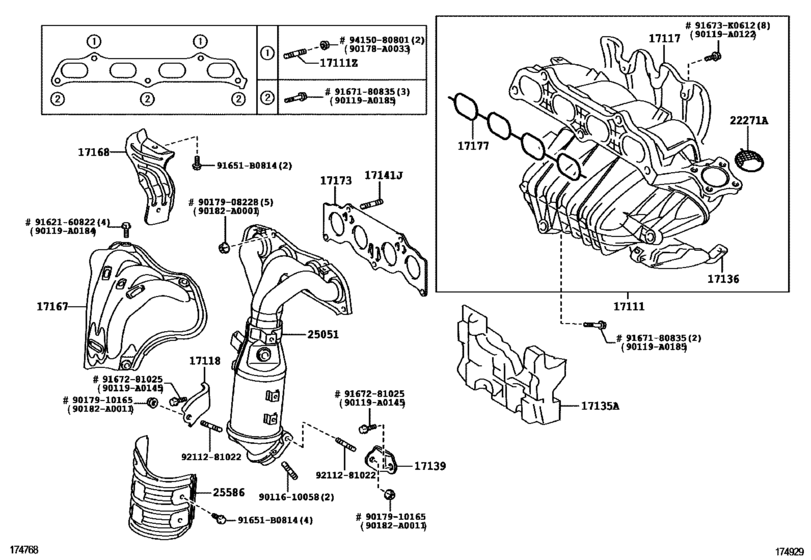

Manifold ([05.2006 - ] (0605- )2AZFE) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5F
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17120-0H010
Manifold, Intake
[07.2003 - 05.2006] 2AZFE..ACV30 (L),*108 |
17120-0H010 |
— | ||
|
17111
|
17111
17120-0H050
Manifold, Intake
[05.2006 - 08.2008] 2AZFE..ACV30 (L) |
17120-0H050 |
— | ||
|
17111
|
17111
17120-28070 Manifold, Intake[07.2003 - 05.2006] 2AZFE..ACV30 (J),*108 |
17120-28070 |
US $511.06 |
||
| replacement | |||||
|
17111
|
17111
17120-28071 Manifold, Intake[07.2003 - 05.2006] 2AZFE..ACV30 (J),*108 |
17120-28071 |
from US $425.15 |
||
|
17111
|
17111
17120-28140 Manifold, Intake[05.2006 - 08.2008] 2AZFE..ACV30 (J) |
17120-28140 |
US $511.06 |
||
| replacement | |||||
|
17111
|
17111
17120-28141 Manifold, Intake[05.2006 - 08.2008] 2AZFE..ACV30 (J) |
17120-28141 |
US $385.84 |
||
|
17111Z
|
17111Z
90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head)[07.2003 - 05.2006] 2AZFE..ACV30 (J),*108 |
90126-08026 |
from US $2.32 |
||
|
17111Z
|
17111Z
90126-A0006
Bolt, Stud(For Intake Manifold To Cylinder Head)
[07.2003 - 05.2006] 2AZFE..ACV30 (L),*108 |
90126-A0006 |
— | ||
|
17117
|
17117
17117-0H010
Insulator, Intake Pipe
[07.2003 - 05.2006] 2AZFE..ACV30 (L),*108 |
17117-0H010 |
— | ||
|
17117
|
17117
17117-0H030
Insulator, Intake Pipe
[05.2006 - 08.2008] 2AZFE..ACV30 (L) |
17117-0H030 |
— | ||
|
17117
|
17117
17117-28020 Insulator, Intake Pipe[07.2003 - 05.2006] 2AZFE..ACV30 (J),*108 |
17117-28020 |
US $52.42 |
||
|
17117
|
17117
17117-28040 Insulator, Intake Pipe[05.2006 - 08.2008] 2AZFE..ACV30 (J) |
17117-28040 |
US $47.61 |
||
|
17118
|
17118
17118-28060
Stay, Manifold
[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
17118-28060 |
— | ||
|
17118
|
17118
17118-28080 Stay, Manifold[05.2006 - 08.2008] 2AZFE..ACV30 |
17118-28080 |
US $22.01 |
||
|
17135A
|
17135A
17135-0H010
Insulator, Intake Manifold, No.1
[07.2003 - 03.2005] 2AZFE..ACV30 *108 |
17135-0H010 |
— | ||
| replacement | |||||
|
17135A
|
17135A
17135-0H011
Insulator, Intake Manifold, No.1
[07.2003 - 03.2005] 2AZFE..ACV30 *108 |
17135-0H011 |
— | ||
|
17135A
|
17135A
17135-0H011
Insulator, Intake Manifold, No.1
[03.2005 - 05.2006] 2AZFE..ACV30 *108 |
17135-0H011 |
— | ||
|
17136
|
17136
17136-28020 Insulator, Intake Manifold, No.2[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
17136-28020 |
US $92.60 |
||
|
17139
|
17139
17139-28040 Stay, Manifold, No.2[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
17139-28040 |
US $34.94 |
||
|
17139
|
17139
17139-28050 Stay, Manifold, No.2[05.2006 - 08.2008] 2AZFE..ACV30 |
17139-28050 |
US $13.80 |
||
|
17141J
|
17141J
90126-08037 Bolt, Stud(For Oil Strainer)[07.2003 - 05.2006] 2AZFE..ACV30 (J),*108 |
90126-08037 |
from US $3.59 |
||
|
17141J
|
17141J
90126-A0007
Bolt, Stud(For Exhaust Manifold, Rh)
[07.2003 - 05.2006] 2AZFE..ACV30 (L),*108 |
90126-A0007 |
— | ||
|
17167
|
17167
17167-0H010
Insulator, Exhaust Manifold Heat, No.1
[07.2003 - 05.2006] 2AZFE..ACV30 (L),*108 |
17167-0H010 |
— | ||
| replacement | |||||
|
17167
|
17167
17167-28040 Insulator, Exhaust Manifold Heat, No.1[07.2003 - 05.2006] 2AZFE..ACV30 (L),*108 |
17167-28040 |
from US $91.98 |
||
|
17167
|
17167
17167-0H040
Insulator, Exhaust Manifold Heat, No.1
[05.2006 - 08.2008] 2AZFE..ACV30 |
17167-0H040 |
— | ||
|
17167
|
17167
17167-28040 Insulator, Exhaust Manifold Heat, No.1[07.2003 - 05.2006] 2AZFE..ACV30 (J),*108 |
17167-28040 |
from US $91.98 |
||
|
17168
|
17168
17168-0H010
Insulator, Exhaust Manifold Heat, No.2
[07.2003 - 05.2006] 2AZFE..ACV30 (L),*108 |
17168-0H010 |
— | ||
|
17168
|
17168
17168-28011 Insulator, Exhaust Manifold Heat, No.2[07.2003 - 05.2006] 2AZFE..ACV30 (J),*108 |
17168-28011 |
US $31.62 |
||
|
17168
|
17168
17168-28030 Insulator, Exhaust Manifold Heat, No.2[05.2006 - 08.2008] 2AZFE..ACV30 |
17168-28030 |
US $33.49 |
||
|
17173
|
17173
17173-0H020
Gasket, Exhaust Manifold To Head
[05.2006 - 08.2008] 2AZFE..ACV30 |
17173-0H020 |
— | ||
|
17173
|
17173
17173-28010 Gasket, Exhaust Manifold To Head[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
17173-28010 |
from US $18.58 |
||
|
17177
|
17177
17177-0H010
Gasket, Intake Manifold To Head, No.1
[07.2003 - 05.2006] 2AZFE..ACV30 (L),*108 |
17177-0H010 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-0H020
Gasket, Intake Manifold To Head, No.1
[07.2003 - 05.2006] 2AZFE..ACV30 (L),*108 |
17177-0H020 |
— | ||
|
17177
|
17177
17177-28010
Gasket, Intake Manifold To Head, No.1
[07.2003 - 05.2006] 2AZFE..ACV30 (J),*108 |
17177-28010 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-28031 Gasket, Intake Manifold To Head, No.1[07.2003 - 05.2006] 2AZFE..ACV30 (J),*108 |
17177-28031 |
from US $6.99 |
||
|
22271A
|
22271A
22271-0D051
Gasket, Throttle Body
[05.2006 - 08.2008] 2AZFE..ACV30 (L) |
22271-0D051 |
— | ||
|
22271A
|
22271A
22271-0H010
Gasket, Throttle Body
[07.2003 - 05.2006] 2AZFE..ACV30 (L),*108 |
22271-0H010 |
— | ||
|
22271A
|
22271A
22271-28020 Gasket, Throttle Body[07.2003 - 05.2006] 2AZFE..ACV30 (J),*108 |
22271-28020 |
from US $4.05 |
||
|
22271A
|
22271A
22271-75031 Gasket, Throttle Body[05.2006 - 08.2008] 2AZFE..ACV30 (J) |
22271-75031 |
from US $2.79 |
||
|
25051
|
25051
25051-0H040
Converter Sub-Assy, Exhaust Manifold
[07.2003 - 05.2006] 2AZFE..ACV30 (L),*108 |
25051-0H040 |
— | ||
|
25051
|
25051
25051-0H050
Converter Sub-Assy, Exhaust Manifold
[05.2006 - 08.2008] 2AZFE..ACV30 |
25051-0H050 |
— | ||
|
25051
|
25051
25051-28240
Converter Sub-Assy, Exhaust Manifold
[07.2003 - 05.2006] 2AZFE..ACV30 (J),*108 |
25051-28240 |
— | ||
|
25586
|
25586
25586-0H010
Insulator, Manifold Converter, No.1
[07.2003 - 05.2006] 2AZFE..ACV30 (L),*108 |
25586-0H010 |
— | ||
|
25586
|
25586
25586-28031 Insulator, Manifold Converter, No.1[07.2003 - 05.2006] 2AZFE..ACV30 (J),*108 |
25586-28031 |
US $37.56 |
||
|
25586
|
25586
25586-28090 Insulator, Manifold Converter, No.1[05.2006 - 08.2008] 2AZFE..ACV30 |
25586-28090 |
from US $27.87 |
||
|
90119A0122
|
90119A0122
90119-A0122
New Genuine Part
|
90119-A0122 |
— | ||
|
90119A0145
|
90119A0145
90119-A0145 New Genuine Part |
90119-A0145 |
US $3.06 |
||
|
90119A0184
|
90119A0184
90119-A0184
New Genuine Part
|
90119-A0184 |
— | ||
|
90119A0185
|
90119A0185
90119-A0185
New Genuine Part
|
90119-A0185 |
— | ||
|
90178A0033
|
90178A0033
90178-A0033
New Genuine Part
|
90178-A0033 |
— | ||
|
90182A0001
|
90182A0001
90182-A0001
New Genuine Part
|
90182-A0001 |
— | ||
|
90182A0011
|
90182A0011
90182-A0011
New Genuine Part
|
90182-A0011 |
— | ||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
91673K0612
|
91673K0612
91673-K0612 New Genuine Part |
91673-K0612 |
US $0.73 |
||
|
9011610058
|
9011610058
90116-10058 Bolt, Stud(For Manifold Extension) |
90116-10058 |
from US $2.26 |
||
|
9017908228
|
9017908228
90179-08228 NUT |
90179-08228 |
from US $0.80 |
||
|
9017910165
|
9017910165
90179-10165 NUT |
90179-10165 |
from US $0.95 |
||
|
9162160822
|
9162160822
91621-60822 Bolt, W/washer(For Repair Actuator Set) |
91621-60822 |
US $1.61 |
||
|
9167180835
|
9167180835
91671-80835 Bolt, Compressor, No.1 |
91671-80835 |
US $1.79 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.10 |
||
|
9211281022
|
9211281022
92112-81022 BOLT STUD |
92112-81022 |
US $1.43 |
||
|
9415080801
|
9415080801
94150-80801 Nut |
94150-80801 |
US $1.43 |
||
