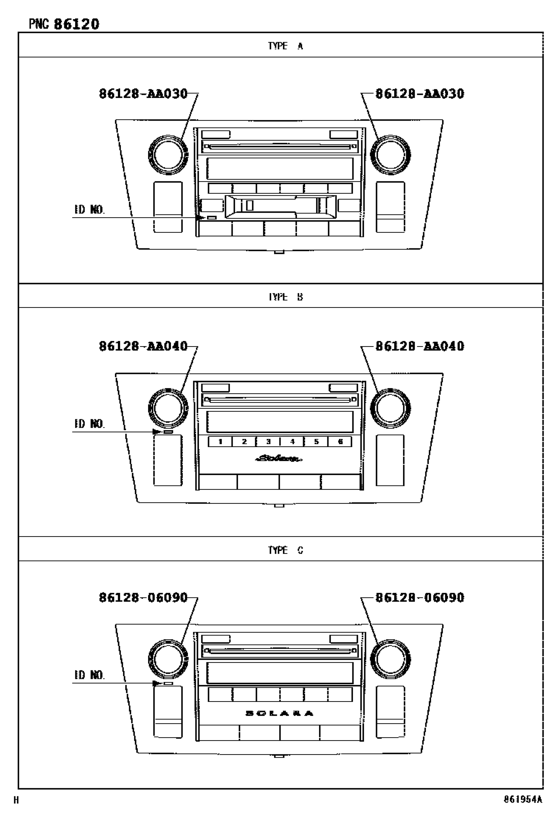

Radio Receiver & Amplifier & Condenser ([07.2003 - ] (0307- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5F
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-06420
Receiver Assy, Radio
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE PANASONIC,ID=A51826; ACV30,MCV31..CP..SE PANASONIC,ID=A51826,AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER; MCV31..CP..SLE PANASONIC,ID=A51826,AUDIO-NAVIGATION, CD, PREMIUM W/6SPEAKER; MCV31..CP..SLE PANASONIC,ID=A51826,TYP |
86120-06420 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-06860
Receiver Assy, Radio
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE PANASONIC,ID=A51826; ACV30,MCV31..CP..SE PANASONIC,ID=A51826,AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER; MCV31..CP..SLE PANASONIC,ID=A51826,AUDIO-NAVIGATION, CD, PREMIUM W/6SPEAKER; MCV31..CP..SLE PANASONIC,ID=A51826,TYP |
86120-06860 |
— | ||
|
86120
|
86120
86120-06430
Receiver Assy, Radio
[05.2006 - 08.2008] ACV30,MCV31..CP..SE PANASONIC,ID=AD1802; ACV30,MCV31..CP..SE PANASONIC,ID=AD1802,TYPE C:REFER TO ILLUSTRATION |
86120-06430 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-06870
Receiver Assy, Radio
[05.2006 - 08.2008] ACV30,MCV31..CP..SE PANASONIC,ID=AD1802; ACV30,MCV31..CP..SE PANASONIC,ID=AD1802,TYPE C:REFER TO ILLUSTRATION |
86120-06870 |
— | ||
|
86120
|
86120
86120-AA120
Receiver Assy, Radio
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE PANASONIC,ID=56831; ACV30,MCV31..CP..(5F,5FC)..SE PANASONIC,ID=56831,AUDIO-PREMIUM IN-DASH 6 CHANGER; ACV30,MCV31..5FC..SLE PANASONIC,ID=56831,TYPE A:REFER TO ILLUSTRATION; ACV30,MCV31..CP..(5F,5FC)..SE PANASONIC, |
86120-AA120 |
— | ||
|
86120
|
86120
86120-AA140
Receiver Assy, Radio
[07.2003 - 05.2006] ACV30,MCV31..(5F,5FC)..SE PANASONIC,ID=A51806; ACV30,MCV31..(5F,5FC)..SE PANASONIC,ID=A51806,TYPE B:REFER TO ILLUSTRATION |
86120-AA140 |
— | ||
|
86128AA030
|
86128AA030
86128-AA030
Knob, Radio Receiver
|
86128-AA030 |
— | ||
|
86128AA040
|
86128AA040
86128-AA040
Knob, Radio Receiver
|
86128-AA040 |
— | ||
|
8612806090
|
8612806090
86128-06090
Knob, Radio Receiver
|
86128-06090 |
— | ||
