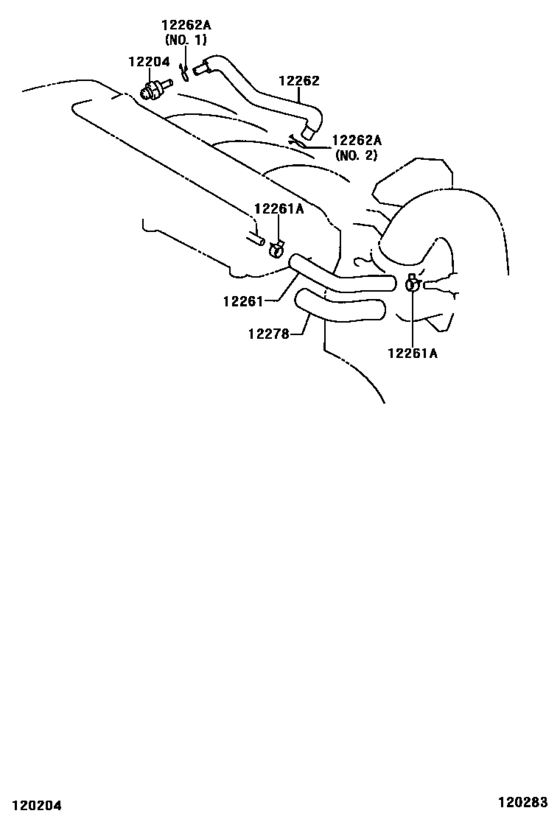

Ventilation Hose ([07.2003 - ] (0307- )2AZFE) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5F
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-28020 Valve Sub-Assy, Ventilation[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
12204-28020 |
from US $11.93 |
||
|
12204
|
12204
12204-28030 Valve Sub-Assy, Ventilation[05.2006 - 08.2008] 2AZFE..ACV30 |
12204-28030 |
from US $10.85 |
||
|
12261
|
12261
12261-0H010
Hose, Ventilation
[07.2003 - 05.2006] 2AZFE..ACV30 |
12261-0H010 |
— | ||
|
12261A
|
12261A
90080-46349
Clip Or Clamp(For Ventilation Hose)
[07.2003 - 05.2006] 2AZFE..ACV30 |
90080-46349 |
— | ||
|
12262
|
12262
12262-0H010
Hose, Ventilation, No.2
[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
12262-0H010 |
— | ||
|
12262A
|
12262A
90467-13103 Clip Or Clamp(For Ventilation Hose)[07.2003 - 05.2006] 2AZFE..ACV30 *108,NO.1 |
90467-13103 |
from US $0.99 |
||
|
12262A
|
12262A
90467-16035 Clip Or Clamp(For Ventilation Hose)[01.2006 - 05.2006] 2AZFE..ACV30 *195,NO.2 |
90467-16035 |
from US $0.82 |
||
|
12262A
|
12262A
90467-17013 Clamp Or Clip(For Water By-Pass Hose No.4)[07.2003 - 05.2006] 2AZFE..ACV30 *108,NO.2 |
90467-17013 |
US $5.38 |
||
|
12278
|
12278
12278-AB010
Insulator, Ventilation Hose Heat
[07.2003 - 05.2006] 2AZFE..ACV30 |
12278-AB010 |
— |
