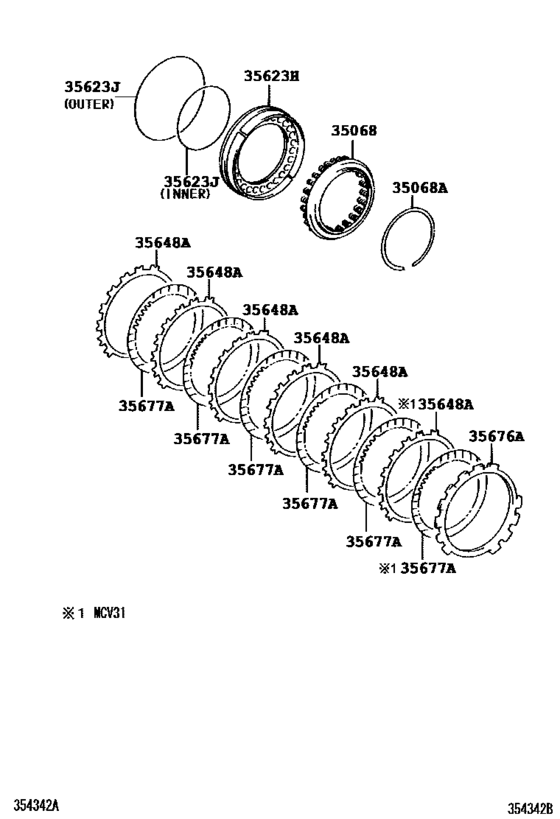

Brake No.3, 1St & Reverse Brake (Atm) ([07.2003 - ] U151E,U241E,U250E (0307- )4FC ; (0307- )MCV31 ; (0503- )A CV30..5FC) Diagram Toyota SOLARA
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SLE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 03.2005
- Gear Shift Type
- 4FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35068
|
35068
35068-06010
Spring Sub-Assy, 1St & Reverse Brake Return
[07.2003 - 03.2005] ACV30..4FC (L) |
35068-06010 |
— | ||
|
35068
|
35068
35068-21010 Spring Sub-Assy, 1St & Reverse Brake Return[07.2003 - 03.2005] ACV30..4FC (J) |
35068-21010 |
US $34.59 |
||
|
35068A
|
35068A
90520-99035 Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)[07.2003 - 05.2006] ACV30..4FC,5FC |
90520-99035 |
US $2.48 |
||
|
35623H
|
35623H
35623-06020
Piston, 1St & Reverse Brake
[07.2003 - 03.2005] ACV30..4FC (L) |
35623-06020 |
— | ||
|
35623H
|
35623H
35623-48010
Piston, 1St & Reverse Brake
[07.2003 - 03.2005] ACV30..4FC (J) |
35623-48010 |
— | ||
| replacement | |||||
|
35623H
|
35623H
35623-06020
Piston, 1St & Reverse Brake
[07.2003 - 03.2005] ACV30..4FC (J) |
35623-06020 |
— | ||
|
35623J
|
35623J
90080-30081
Ring, O (For 1St & Reverse Brake)
[07.2003 - 05.2006] MCV31;ACV30..4FC (L),INNER |
90080-30081 |
— | ||
|
35623J
|
35623J
90080-30083
Ring, O (For 1St & Reverse Brake)
[07.2003 - 05.2006] MCV31;ACV30..4FC (L),OUTER |
90080-30083 |
— | ||
|
35623J
|
35623J
90301-99096 Ring, O (For Forward Clutch Piston)[07.2003 - 03.2005] ACV30..4FC INNER,(J) |
90301-99096 |
from US $2.80 |
||
|
35623J
|
35623J
90301-99098 Ring, O (For 1St & Reverse Brake)[07.2003 - 03.2005] ACV30..4FC OUTER,(J) |
90301-99098 |
US $2.91 |
||
| replacement | |||||
|
35623J
|
35623J
90301-99134 Ring, O (For 1St & Reverse Brake)[07.2003 - 03.2005] ACV30..4FC OUTER,(J) |
90301-99134 |
US $2.80 |
||
|
35648A
|
35648A
35692-06010
Plate, Clutch (For 1St & Reverse Brake)
[07.2003 - 05.2004] ACV30..4FC (L) |
35692-06010 |
— | ||
|
35648A
|
35648A
35692-06011
Plate, Clutch (For 1St & Reverse Brake)
[05.2004 - 03.2005] ACV30..4FC (L) |
35692-06011 |
— | ||
|
35648A
|
35648A
35692-21010
Plate, Clutch (For 1St & Reverse Brake)
[07.2003 - 03.2005] ACV30..4FC (J) |
35692-21010 |
— | ||
| replacement | |||||
|
35648A
|
35648A
35692-21011 Plate, Clutch (For 1St & Reverse Brake)[07.2003 - 03.2005] ACV30..4FC (J) |
35692-21011 |
US $12.39 |
||
|
35676A
|
35676A
35678-06010
Flange, Brake (For 1St & Reverse Brake)
[07.2003 - 03.2005] ACV30..4FC T=1.8,MARK 1,(L) |
35678-06010 |
— | ||
|
35676A
|
35676A
35678-06020
Flange, Brake (For 1St & Reverse Brake)
[07.2003 - 03.2005] ACV30..4FC T=1.9,MARK 2,(L) |
35678-06020 |
— | ||
|
35676A
|
35676A
35678-06030
Flange, Brake (For 1St & Reverse Brake)
[07.2003 - 03.2005] ACV30..4FC T=2.0,MARK 3,(L) |
35678-06030 |
— | ||
|
35676A
|
35676A
35678-06040
Flange, Brake (For 1St & Reverse Brake)
[07.2003 - 03.2005] ACV30..4FC T=2.1,MARK 4,(L) |
35678-06040 |
— | ||
|
35676A
|
35676A
35678-06050
Flange, Brake (For 1St & Reverse Brake)
[07.2003 - 03.2005] ACV30..4FC T=2.2,MARK 5,(L) |
35678-06050 |
— | ||
|
35676A
|
35676A
35678-06060
Flange, Brake (For 1St & Reverse Brake)
[07.2003 - 03.2005] ACV30..4FC T=2.3,MARK 6,(L) |
35678-06060 |
— | ||
|
35676A
|
35676A
35678-06070
Flange, Brake (For 1St & Reverse Brake)
[07.2003 - 03.2005] ACV30..4FC T=2.4,MARK 7,(L) |
35678-06070 |
— | ||
|
35676A
|
35676A
35678-06080
Flange, Brake (For 1St & Reverse Brake)
[07.2003 - 03.2005] ACV30..4FC T=2.5,MARK 8,(L) |
35678-06080 |
— | ||
|
35676A
|
35676A
35678-21010 Flange, Brake (For 1St & Reverse Brake)[07.2003 - 03.2005] ACV30..4FC T=1.8,MARK 1,(J) |
35678-21010 |
US $39.82 |
||
|
35676A
|
35676A
35678-21020 Flange, Brake (For 1St & Reverse Brake)[07.2003 - 03.2005] ACV30..4FC T=1.9,MARK 2,(J) |
35678-21020 |
US $25.33 |
||
|
35676A
|
35676A
35678-21030 Flange, Brake (For 1St & Reverse Brake)[07.2003 - 03.2005] ACV30..4FC T=2.0,MARK 3,(J) |
35678-21030 |
from US $26.21 |
||
|
35676A
|
35676A
35678-21040 Flange, Brake (For 1St & Reverse Brake)[07.2003 - 03.2005] ACV30..4FC T=2.1,MARK 4,(J) |
35678-21040 |
from US $26.21 |
||
|
35676A
|
35676A
35678-21050 Flange, Brake (For 1St & Reverse Brake)[07.2003 - 03.2005] ACV30..4FC T=2.2,MARK 5,(J) |
35678-21050 |
US $27.08 |
||
|
35676A
|
35676A
35678-21060 Flange, Brake (For 1St & Reverse Brake)[07.2003 - 03.2005] ACV30..4FC T=2.3,MARK 6,(J) |
35678-21060 |
from US $27.08 |
||
|
35676A
|
35676A
35678-21070 Flange, Brake (For 1St & Reverse Brake)[07.2003 - 03.2005] ACV30..4FC T=2.4,MARK 7,(J) |
35678-21070 |
US $27.81 |
||
|
35676A
|
35676A
35678-21080 Flange, Brake (For 1St & Reverse Brake)[07.2003 - 03.2005] ACV30..4FC T=2.5,MARK 8,(J) |
35678-21080 |
US $28.68 |
||
|
35677A
|
35677A
35682-06010
Disc, Clutch (For 1St & Reverse Brake)
[07.2003 - 03.2005] ACV30..4FC (L) |
35682-06010 |
— | ||
|
35677A
|
35677A
35682-21010 Disc, Clutch (For 1St & Reverse Brake)[07.2003 - 03.2005] ACV30..4FC (J) |
35682-21010 |
US $16.13 |
||
