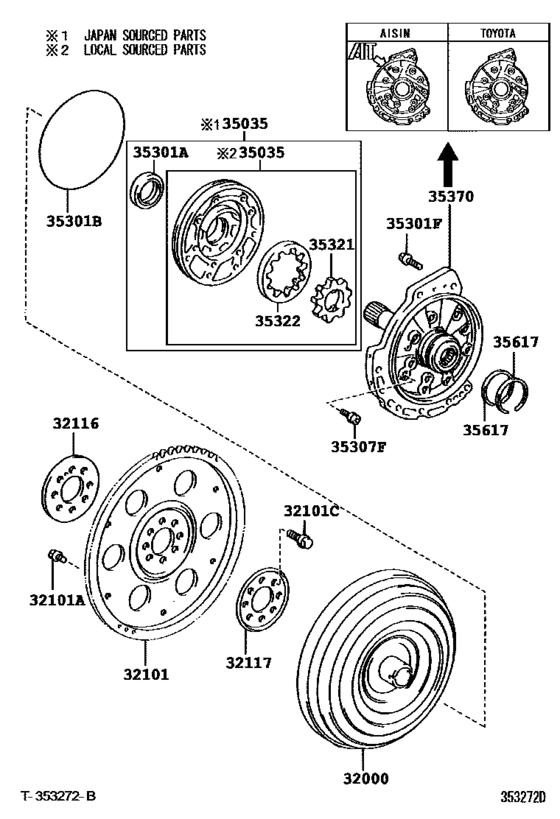

Torque Converter, Front Oil Pump & Chain (Atm) ([07.2003 - 03.2005] U241E (0307-0503)4FC) Diagram Toyota SOLARA
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SLE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 03.2005
- Gear Shift Type
- 4FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-06020
Converter Assy, Torque
[07.2003 - 03.2005] ACV30..4FC (L) |
32000-06020 |
— | ||
|
32000
|
32000
32000-33090 Converter Assy, TorqueTORQUE [07.2003 - 03.2005] ACV30..4FC (J) |
32000-33090 |
US $1,747.20 |
||
| replacement | |||||
|
32000
|
32000
32000-33120 Converter Assy, Torque[07.2003 - 03.2005] ACV30..4FC (J) |
32000-33120 |
US $1,205.57 |
||
|
32101
|
32101
32101-06030
Gear Sub-Assy, Drive Plate & Ring
[07.2003 - 03.2005] ACV30..4FC (L) |
32101-06030 |
— | ||
|
32101
|
32101
32101-28040 Gear Sub-Assy, Drive Plate & Ring[07.2003 - 03.2005] ACV30..4FC (J) |
32101-28040 |
from US $163.86 |
||
|
32101A
|
32101A
90109-09001 Bolt(For Drive Plate & Torque Converter Setting)[07.2003 - 03.2005] ACV30..4FC *9-1.25PX12.4-7.3,GREEN |
90109-09001 |
from US $0.76 |
||
|
32101A
|
32101A
90119-09025 Bolt(For Drive Plate & Torque Converter Setting)[07.2003 - 03.2005] ACV30..4FC *9-1.25PX12.4-8.4,YELLOW |
90119-09025 |
from US $0.76 |
||
|
32101C
|
32101C
90105-A0060
Bolt, Hexagon(For Drive Plate Setting)
[07.2003 - 03.2005] ACV30..4FC *12-1.25PX22-16 |
90105-A0060 |
— | ||
| replacement | |||||
|
32101C
|
32101C
90105-12184
Bolt, Flywheel Setting
[07.2003 - 03.2005] ACV30..4FC *12-1.25PX22-16 |
90105-12184 |
— | ||
|
32116
|
32116
32116-20050 Spacer, Drive Plate, Front[07.2003 - 03.2005] ACV30..4FC |
32116-20050 |
US $11.47 |
||
|
32117
|
32117
32117-20060 Spacer, Drive Plate, Rear[07.2003 - 03.2005] ACV30..4FC |
32117-20060 |
from US $15.05 |
||
|
35035
|
35035
35035-06010
Body Sub-Assy, Fr Oil Pump & Gear
[07.2003 - 03.2005] ACV30..4FC (L) |
35035-06010 |
— | ||
|
35035
|
35035
35035-21020 Body Sub-Assy, Fr Oil Pump & Gear[07.2003 - 03.2005] ACV30..4FC (J),TOYOTA |
35035-21020 |
US $266.45 |
||
| replacement | |||||
|
35035
|
35035
35035-12070 Body Sub-Assy, Fr Oil Pump & Gear[07.2003 - 03.2005] ACV30..4FC (J),TOYOTA |
35035-12070 |
from US $182.51 |
||
|
35035
|
35035
35035-28010
Body Sub-Assy, Fr Oil Pump & Gear
[07.2003 - 03.2005] ACV30..4FC (J),AISIN |
35035-28010 |
— | ||
| replacement | |||||
|
35035
|
35035
35035-12070 Body Sub-Assy, Fr Oil Pump & Gear[07.2003 - 03.2005] ACV30..4FC (J),AISIN |
35035-12070 |
from US $182.51 |
||
|
35301A
|
35301A
90080-31068
Seal, Oil (For Front Oil Pump)
[07.2003 - 03.2005] ACV30..4FC (L) |
90080-31068 |
— | ||
|
35301A
|
35301A
90311-38083 Seal, Oil (For Front Oil Pump)[07.2003 - 03.2005] ACV30..4FC (J) |
90311-38083 |
from US $5.20 |
||
|
35301B
|
35301B
90080-30078
Ring, O (For Front Oil Pump Body)
[07.2003 - 03.2005] ACV30..4FC (L) |
90080-30078 |
— | ||
|
35301B
|
35301B
90301-99099 Ring, O (For Front Oil Pump Body)[07.2003 - 03.2005] ACV30..4FC (J) |
90301-99099 |
from US $5.47 |
||
|
35301F
|
35301F
90080-10236
Bolt (For Front Oil Pump Setting)
[07.2003 - 03.2005] ACV30..4FC *8-1.25PX28-28,(L) |
90080-10236 |
— | ||
|
35301F
|
35301F
90105-08050 Bolt (For Overdrive Case & Transaxle Case Setting)[07.2003 - 03.2005] ACV30..4FC *8-1.25PX28-28,(J) |
90105-08050 |
US $3.58 |
||
|
35307F
|
35307F
90080-14044
Bolt (For Stator Shaft)
[07.2003 - 03.2005] ACV30..4FC (L) |
90080-14044 |
— | ||
|
35307F
|
35307F
90148-60027 Bolt (For Stator Shaft)[07.2003 - 03.2005] ACV30..4FC (J) |
90148-60027 |
US $0.73 |
||
|
35321
|
35321
35321-06010
Gear, Front Oil Pump Drive
[07.2003 - 03.2005] ACV30..4FC T=10.690-10.699,(L) |
35321-06010 |
— | ||
|
35321
|
35321
35321-06020
Gear, Front Oil Pump Drive
[07.2003 - 03.2005] ACV30..4FC T=10.700-10.709,(L) |
35321-06020 |
— | ||
|
35321
|
35321
35321-06030
Gear, Front Oil Pump Drive
[07.2003 - 03.2005] ACV30..4FC T=10.710-10.720,(L) |
35321-06030 |
— | ||
|
35321
|
35321
35321-06040
Gear, Front Oil Pump Drive
[07.2003 - 03.2005] ACV30..4FC T=10.721-10.730,(L) |
35321-06040 |
— | ||
|
35321
|
35321
35321-06050
Gear, Front Oil Pump Drive
[07.2003 - 03.2005] ACV30..4FC T=10.731-10.740,(L) |
35321-06050 |
— | ||
|
35321
|
35321
35321-21060 Gear, Front Oil Pump Drive[07.2003 - 03.2005] ACV30..4FC T=10.690-10.699,(J) |
35321-21060 |
US $43.24 |
||
| replacement | |||||
|
35321
|
35321
35321-28060 Gear, Front Oil Pump Drive[07.2003 - 03.2005] ACV30..4FC T=10.690-10.699,(J) |
35321-28060 |
US $30.31 |
||
|
35321
|
35321
35321-21070 Gear, Front Oil Pump Drive[07.2003 - 03.2005] ACV30..4FC T=10.700-10.709,(J) |
35321-21070 |
US $43.24 |
||
| replacement | |||||
|
35321
|
35321
35321-28070 Gear, Front Oil Pump Drive[07.2003 - 03.2005] ACV30..4FC T=10.700-10.709,(J) |
35321-28070 |
US $32.61 |
||
|
35321
|
35321
35321-21080
Gear, Front Oil Pump Drive
[07.2003 - 03.2005] ACV30..4FC T=10.710-10.720,(J) |
35321-21080 |
— | ||
| replacements | |||||
|
35321
|
35321
35321-28080
Gear, Front Oil Pump Drive
[07.2003 - 03.2005] ACV30..4FC T=10.710-10.720,(J) |
35321-28080 |
— | ||
| replacement | |||||
|
35321
|
35321
35321-06030
Gear, Front Oil Pump Drive
[07.2003 - 03.2005] ACV30..4FC T=10.710-10.720,(J) |
35321-06030 |
— | ||
|
35321
|
35321
35321-06030
Gear, Front Oil Pump Drive
[07.2003 - 03.2005] ACV30..4FC T=10.710-10.720,(J) |
35321-06030 |
— | ||
|
35321
|
35321
35321-21090 Gear, Front Oil Pump Drive[07.2003 - 03.2005] ACV30..4FC T=10.721-10.730,(J) |
35321-21090 |
US $43.24 |
||
| replacement | |||||
|
35321
|
35321
35321-28090 Gear, Front Oil Pump Drive[07.2003 - 03.2005] ACV30..4FC T=10.721-10.730,(J) |
35321-28090 |
US $32.61 |
||
|
35321
|
35321
35321-21100 Gear, Front Oil Pump Drive[07.2003 - 03.2005] ACV30..4FC T=10.731-10.740,(J) |
35321-21100 |
US $43.24 |
||
| replacement | |||||
|
35321
|
35321
35321-28100 Gear, Front Oil Pump Drive[07.2003 - 03.2005] ACV30..4FC T=10.731-10.740,(J) |
35321-28100 |
US $32.61 |
||
|
35321
|
35321
35321-28060 Gear, Front Oil Pump Drive[07.2003 - 03.2005] ACV30..4FC T=10.715,MARK 1,(J) |
35321-28060 |
US $30.31 |
||
|
35321
|
35321
35321-28070 Gear, Front Oil Pump Drive[07.2003 - 03.2005] ACV30..4FC T=10.715,MARK 2,(J) |
35321-28070 |
US $32.61 |
||
|
35321
|
35321
35321-28080
Gear, Front Oil Pump Drive
[07.2003 - 03.2005] ACV30..4FC T=10.715,MARK 3,(J) |
35321-28080 |
— | ||
| replacement | |||||
|
35321
|
35321
35321-06030
Gear, Front Oil Pump Drive
[07.2003 - 03.2005] ACV30..4FC T=10.715,MARK 3,(J) |
35321-06030 |
— | ||
|
35321
|
35321
35321-28090 Gear, Front Oil Pump Drive[07.2003 - 03.2005] ACV30..4FC T=10.715,MARK 4,(J) |
35321-28090 |
US $32.61 |
||
|
35321
|
35321
35321-28100 Gear, Front Oil Pump Drive[07.2003 - 03.2005] ACV30..4FC T=10.715,MARK 5,(J) |
35321-28100 |
US $32.61 |
||
|
35322
|
35322
35322-06010
Gear, Front Oil Pump Driven
[07.2003 - 03.2005] ACV30..4FC T=10.690-10.699,(L) |
35322-06010 |
— | ||
|
35322
|
35322
35322-06020
Gear, Front Oil Pump Driven
[07.2003 - 03.2005] ACV30..4FC T=10.700-10.709,(L) |
35322-06020 |
— | ||
|
35322
|
35322
35322-06030
Gear, Front Oil Pump Driven
[07.2003 - 03.2005] ACV30..4FC T=10.710-10.720,(L) |
35322-06030 |
— | ||
|
35322
|
35322
35322-06040
Gear, Front Oil Pump Driven
[07.2003 - 03.2005] ACV30..4FC T=10.721-10.730,(L) |
35322-06040 |
— | ||
|
35322
|
35322
35322-06050
Gear, Front Oil Pump Driven
[07.2003 - 03.2005] ACV30..4FC T=10.731-10.740,(L) |
35322-06050 |
— | ||
|
35322
|
35322
35322-21060 Gear, Front Oil Pump Driven[07.2003 - 03.2005] ACV30..4FC T=10.690-10.699,(J) |
35322-21060 |
US $40.19 |
||
| replacement | |||||
|
35322
|
35322
35322-28060 Gear, Front Oil Pump Driven[07.2003 - 03.2005] ACV30..4FC T=10.690-10.699,(J) |
35322-28060 |
US $28.30 |
||
|
35322
|
35322
35322-21070 Gear, Front Oil Pump Driven[07.2003 - 03.2005] ACV30..4FC T=10.700-10.709,(J) |
35322-21070 |
US $40.19 |
||
| replacement | |||||
|
35322
|
35322
35322-28070 Gear, Front Oil Pump Driven[07.2003 - 03.2005] ACV30..4FC T=10.700-10.709,(J) |
35322-28070 |
US $30.43 |
||
|
35322
|
35322
35322-21080 Gear, Front Oil Pump Driven[07.2003 - 03.2005] ACV30..4FC T=10.710-10.720,(J) |
35322-21080 |
US $40.19 |
||
| replacement | |||||
|
35322
|
35322
35322-28080 Gear, Front Oil Pump Driven[07.2003 - 03.2005] ACV30..4FC T=10.710-10.720,(J) |
35322-28080 |
US $30.43 |
||
|
35322
|
35322
35322-21090 Gear, Front Oil Pump Driven[07.2003 - 03.2005] ACV30..4FC T=10.721-10.730,(J) |
35322-21090 |
US $40.19 |
||
| replacement | |||||
|
35322
|
35322
35322-28090 Gear, Front Oil Pump Driven[07.2003 - 03.2005] ACV30..4FC T=10.721-10.730,(J) |
35322-28090 |
US $30.43 |
||
|
35322
|
35322
35322-21100 Gear, Front Oil Pump Driven[07.2003 - 03.2005] ACV30..4FC T=10.731-10.740,(J) |
35322-21100 |
US $40.19 |
||
| replacement | |||||
|
35322
|
35322
35322-28100 Gear, Front Oil Pump Driven[07.2003 - 03.2005] ACV30..4FC T=10.731-10.740,(J) |
35322-28100 |
US $30.43 |
||
|
35322
|
35322
35322-28060 Gear, Front Oil Pump Driven[07.2003 - 03.2005] ACV30..4FC T=10.715,MARK 1,(J) |
35322-28060 |
US $28.30 |
||
|
35322
|
35322
35322-28070 Gear, Front Oil Pump Driven[07.2003 - 03.2005] ACV30..4FC T=10.715,MARK 2,(J) |
35322-28070 |
US $30.43 |
||
|
35322
|
35322
35322-28080 Gear, Front Oil Pump Driven[07.2003 - 03.2005] ACV30..4FC T=10.715,MARK 3,(J) |
35322-28080 |
US $30.43 |
||
|
35322
|
35322
35322-28090 Gear, Front Oil Pump Driven[07.2003 - 03.2005] ACV30..4FC T=10.715,MARK 4,(J) |
35322-28090 |
US $30.43 |
||
|
35322
|
35322
35322-28100 Gear, Front Oil Pump Driven[07.2003 - 03.2005] ACV30..4FC T=10.715,MARK 5,(J) |
35322-28100 |
US $30.43 |
||
|
35370
|
35370
35370-06010
Shaft Assy, Stator
[07.2003 - 03.2005] ACV30..4FC (L) |
35370-06010 |
— | ||
|
35370
|
35370
35370-21020 Shaft Assy, Stator[07.2003 - 03.2005] ACV30..4FC (J),TOYOTA |
35370-21020 |
US $266.45 |
||
| replacement | |||||
|
35370
|
35370
35370-12110 Shaft Assy, Stator[07.2003 - 03.2005] ACV30..4FC (J),TOYOTA |
35370-12110 |
from US $200.93 |
||
|
35370
|
35370
35370-28010 Shaft Assy, Stator[07.2003 - 03.2005] ACV30..4FC (J),AISIN |
35370-28010 |
US $221.31 |
||
| replacement | |||||
|
35370
|
35370
35370-12110 Shaft Assy, Stator[07.2003 - 03.2005] ACV30..4FC (J),AISIN |
35370-12110 |
from US $200.93 |
||
|
35617
|
35617
35613-21010 Ring, Forward Clutch Dram Oil Seal[07.2003 - 03.2005] ACV30..4FC |
35613-21010 |
from US $1.56 |
||
