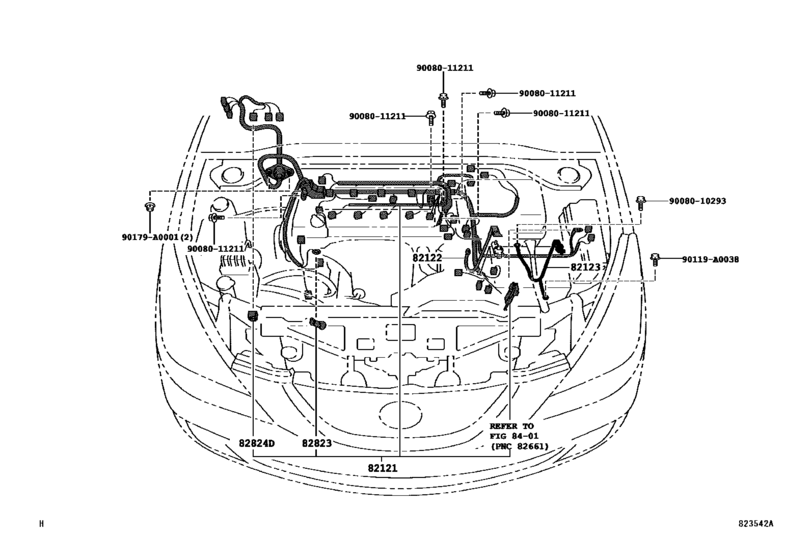

Wiring & Clamp ([07.2003 - ] ENGINE (0307- )ACV30) Diagram Toyota SOLARA
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SLE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 03.2005
- Gear Shift Type
- 4FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-06592
Wire, Engine
[07.2003 - 03.2005] ACV30..4FC |
82121-06592 |
— | ||
|
82122
|
82122
82122-06020
Wire, Engine, No.2
[07.2003 - 03.2005] ACV30..4FC |
82122-06020 |
— | ||
|
82123
|
82123
82123-06030
Wire, Engine, No.3
[07.2003 - 03.2005] ACV30..4FC |
82123-06030 |
— | ||
|
82823
|
82823
82823-22080 Cap, Terminal[07.2003 - 03.2005] ACV30..4FC |
82823-22080 |
US $8.44 |
||
|
82824D
|
82824D
82824-50110 Connector, Wiring Harness[07.2003 - 03.2005] ACV30..4FC |
82824-50110 |
US $20.09 |
||
|
90119A0038
|
90119A0038
90119-A0038
New Genuine Part
|
90119-A0038 |
— | ||
|
90179A0001
|
90179A0001
90179-A0001
New Genuine Part
|
90179-A0001 |
— | ||
|
9008010293
|
9008010293
90080-10293
New Genuine Part
|
90080-10293 |
— | ||
|
9008011211
|
9008011211
90080-11211
New Genuine Part
|
90080-11211 |
— |
