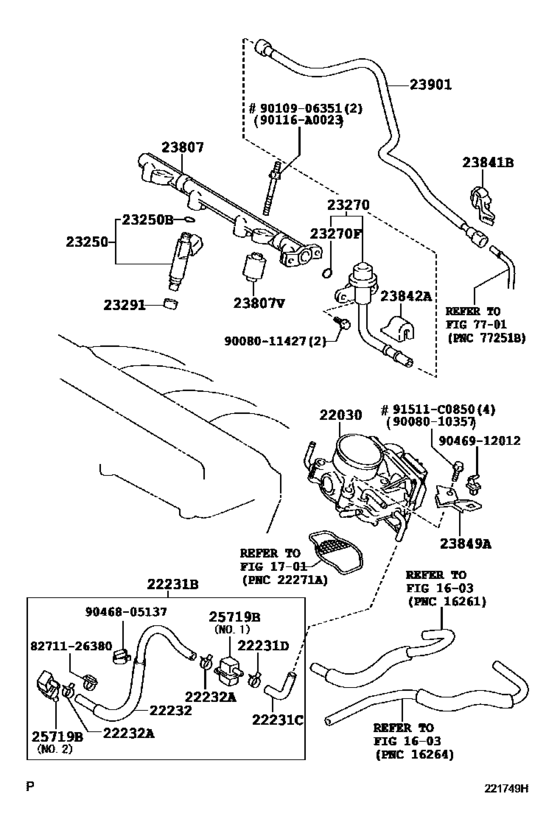

Fuel Injection System ([02.2005 - 10.2005] (0502-0510)2AZFE) Diagram Toyota SOLARA
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 03.2005
- Gear Shift Type
- 4FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-0H020
Body Assy, Throttle W/motor
[07.2003 - 09.2003] 2AZFE..ACV30 |
22030-0H020 |
— | ||
| replacement | |||||
|
22030
|
22030
22030-0H021
Body Assy, Throttle W/motor
[07.2003 - 09.2003] 2AZFE..ACV30 |
22030-0H021 |
— | ||
|
22231B
|
22231B
22231-28030 Hose, Throttle Body[07.2003 - 09.2003] 2AZFE..ACV30 |
22231-28030 |
US $12.67 |
||
|
22231B
|
22231B
22231-28090 Hose, Throttle Body[02.2005 - 10.2005] 2AZFE..ACV30 *108 |
22231-28090 |
US $58.09 |
||
| replacement | |||||
|
22231B
|
22231B
22231-28030 Hose, Throttle Body[02.2005 - 10.2005] 2AZFE..ACV30 *108 |
22231-28030 |
US $12.67 |
||
|
22231C
|
22231C
22231-28040 Hose, Throttle Body, No.1[07.2003 - 09.2003] 2AZFE..ACV30 |
22231-28040 |
US $9.03 |
||
|
22231D
|
22231D
90467-12056 Clamp Or Clip(For Throttle Body Hose)[07.2003 - 09.2003] 2AZFE..ACV30 |
90467-12056 |
from US $0.72 |
||
| replacement | |||||
|
22231D
|
22231D
90466-T0048
New Genuine Part
[07.2003 - 09.2003] 2AZFE..ACV30 |
90466-T0048 |
— | ||
|
22232
|
22232
22232-28010 Hose, Throttle Body, No.2[07.2003 - 09.2003] 2AZFE..ACV30 |
22232-28010 |
US $5.82 |
||
|
22232A
|
22232A
90467-12056 Clamp Or Clip(For Throttle Body Hose)[07.2003 - 09.2003] 2AZFE..ACV30 |
90467-12056 |
from US $0.72 |
||
| replacement | |||||
|
22232A
|
22232A
90466-T0048
New Genuine Part
[07.2003 - 09.2003] 2AZFE..ACV30 |
90466-T0048 |
— | ||
|
23250
|
23250
23209-0H030
Injector Assy, Fuel
[09.2003 - 05.2006] 2AZFE..ACV30 (L),*108 |
23209-0H030 |
— | ||
|
23250
|
23250
23209-28060 Injector Assy, Fuel[07.2003 - 09.2003] 2AZFE..ACV30 |
23209-28060 |
US $268.80 |
||
|
23250
|
23250
23209-28080 Injector Assy, Fuel[09.2003 - 05.2006] 2AZFE..ACV30 (J),*108 |
23209-28080 |
from US $157.15 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[07.2003 - 09.2003] 2AZFE..ACV30 |
90301-07024 |
from US $2.72 |
||
|
23270
|
23270
23270-28020
Damper Assy, Fuel Pressure Pulsation
[09.2003 - 05.2006] 2AZFE..ACV30 *108 |
23270-28020 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-28021 Damper Assy, Fuel Pressure Pulsation[09.2003 - 05.2006] 2AZFE..ACV30 *108 |
23270-28021 |
from US $109.21 |
||
|
23270
|
23270
23270-28050 Damper Assy, Fuel Pressure Pulsation[07.2003 - 09.2003] 2AZFE..ACV30 |
23270-28050 |
US $122.30 |
||
| replacement | |||||
|
23270
|
23270
23270-28052 Damper Assy, Fuel Pressure Pulsation[07.2003 - 09.2003] 2AZFE..ACV30 |
23270-28052 |
from US $98.95 |
||
|
23270F
|
23270F
90301-07037 Ring, O(For Fuel Injector)[07.2003 - 09.2003] 2AZFE..ACV30 |
90301-07037 |
from US $2.07 |
||
|
23291
|
23291
23291-28020 Insulator, Injector Vibration[07.2003 - 09.2003] 2AZFE..ACV30 ORANGE |
23291-28020 |
from US $3.25 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[09.2003 - 05.2006] 2AZFE..ACV30 *108 |
23291-41010 |
from US $2.62 |
||
|
23807
|
23807
23814-0H010
Pipe Sub-Assy, Fuel Delivery
[05.2004 - 05.2006] 2AZFE..ACV30 (L),*108 |
23814-0H010 |
— | ||
|
23807
|
23807
23814-28030 Pipe Sub-Assy, Fuel DeliveryFUEL DELIVERY [07.2003 - 12.2003] 2AZFE..ACV30 *108 |
23814-28030 |
US $104.83 |
||
| replacement | |||||
|
23807
|
23807
23814-28031 Pipe Sub-Assy, Fuel Delivery[07.2003 - 12.2003] 2AZFE..ACV30 *108 |
23814-28031 |
US $70.91 |
||
|
23807
|
23807
23814-28031 Pipe Sub-Assy, Fuel Delivery[12.2003 - 05.2004] 2AZFE..ACV30 *108 |
23814-28031 |
US $70.91 |
||
|
23807V
|
23807V
90561-08053 Spacer, No.1(For Delivery Pipe)[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
90561-08053 |
from US $1.40 |
||
|
23841B
|
23841B
23841-28010
Clamp, Fuel Pipe, No.1(For Efi)
[07.2003 - 01.2006] 2AZFE..ACV30 |
23841-28010 |
— | ||
| replacement | |||||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[07.2003 - 01.2006] 2AZFE..ACV30 |
23841-21050 |
US $3.94 |
||
|
23842A
|
23842A
23842-28010 Clamp, Fuel Pipe, No.1(For Efi)[07.2003 - 03.2005] 2AZFE..ACV30..4FC |
23842-28010 |
from US $5.36 |
||
|
23849A
|
23849A
23849-28030 Support, Fuel Pipe[09.2003 - 05.2006] 2AZFE..ACV30 *108 |
23849-28030 |
US $3.93 |
||
|
23849A
|
23849A
23849-28050 Support, Fuel Pipe[07.2003 - 09.2003] 2AZFE..ACV30 |
23849-28050 |
US $2.91 |
||
|
23901
|
23901
23901-0H030
Tube Sub-Assy, Fuel
[09.2003 - 03.2005] 2AZFE..ACV30..4FC |
23901-0H030 |
— | ||
|
23901
|
23901
23901-0H070
Tube Sub-Assy, Fuel
[07.2003 - 09.2003] 2AZFE..ACV30 |
23901-0H070 |
— | ||
|
25719B
|
25719B
25719-28010 Tank, Vacuum Surge[02.2005 - 10.2005] 2AZFE..ACV30 *108,NO.2 |
25719-28010 |
US $18.93 |
||
| replacement | |||||
|
25719B
|
25719B
25719-28040 Tank, Vacuum Surge[02.2005 - 10.2005] 2AZFE..ACV30 *108,NO.2 |
25719-28040 |
US $23.44 |
||
|
25719B
|
25719B
25719-62050 Tank, Vacuum Surge[07.2003 - 09.2003] 2AZFE..ACV30 |
25719-62050 |
US $18.93 |
||
|
90116A0023
|
90116A0023
90116-A0023
New Genuine Part
|
90116-A0023 |
— | ||
|
91511C0850
|
91511C0850
91511-C0850 New Genuine Part |
91511-C0850 |
US $0.87 |
||
|
8271126380
|
8271126380
82711-26380 Wire, Fuse To Fuse(for Combustion Heater) |
82711-26380 |
US $2.15 |
||
|
9008010357
|
9008010357
90080-10357
New Genuine Part
|
90080-10357 |
— | ||
|
9008011427
|
9008011427
90080-11427
New Genuine Part
|
90080-11427 |
— | ||
|
9010906351
|
9010906351
90109-06351 New Genuine Part |
90109-06351 |
US $1.31 |
||
|
9046805137
|
9046805137
90468-05137 New Genuine Part |
90468-05137 |
US $2.18 |
||
|
9046912012
|
9046912012
90469-12012 Clamp Or Clip(For Fuel Hose) |
90469-12012 |
from US $2.96 |
||
