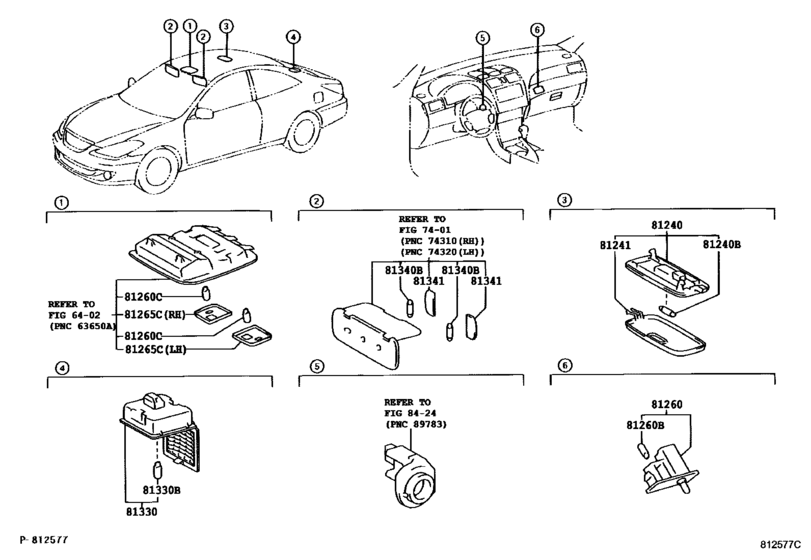

Interior Lamp ([07.2003 - ] (0307- )CP) Diagram Toyota SOLARA
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 03.2005
- Gear Shift Type
- 4FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81240
|
81240
81240-AA020-A0
Lamp Assy, Room, No.1
[07.2003 - 03.2005] ACV30..4FC IVORY,TRIM0# |
81240-AA020-A0 |
— | ||
|
81240
|
81240
81240-AA020-B1
Lamp Assy, Room, No.1
[07.2003 - 03.2005] ACV30..SLE STONE,TRIM1#; ACV30..4FC..SE STONE,TRIM10,11 |
81240-AA020-B1 |
— | ||
|
81240B
|
81240B
90084-81003 Bulb, Room Lamp, No.1ROOM LAMP, NO.2 [07.2003 - 03.2005] ACV30..4FC 12V 9W |
90084-81003 |
US $2.89 |
||
|
81241
|
81241
81241-AA020
Lens, Room Lamp, No.1
[07.2003 - 03.2005] ACV30..4FC |
81241-AA020 |
— | ||
|
81260
|
81260
81260-33030 Lamp Assy, Glove Box[07.2003 - 05.2006] ACV30,MCV31 |
81260-33030 |
from US $12.22 |
||
|
81260B
|
81260B
90981-11018 Bulb, Position Indicator Lamp[07.2003 - 05.2006] ACV30,MCV31 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.01 |
||
|
81260C
|
81260C
90084-81002 Bulb(For Map Lamp)[07.2003 - 05.2006] ACV30,MCV31..CP 12V 5W |
90084-81002 |
from US $1.60 |
||
|
81265C
|
81265C
81265-AA010 Lens, Map Lamp, No.1[07.2003 - 05.2006] ACV30,MCV31..CP RH |
81265-AA010 |
US $5.97 |
||
|
81265C
|
81265C
81265-AA020 Lens, Map Lamp, No.1[07.2003 - 05.2006] ACV30,MCV31..CP LH |
81265-AA020 |
US $5.97 |
||
|
81330
|
81330
81330-AA010
Lamp Assy, Luggage Compartment, No.1
[07.2003 - 03.2005] ACV30..4FC |
81330-AA010 |
— | ||
|
81330B
|
81330B
90084-98043 Bulb (For License Plate Lamp)[07.2003 - 05.2006] ACV30,MCV31..CP 12V 5W |
90084-98043 |
US $4.37 |
||
|
81340B
|
81340B
90084-98013 Bulb (For Vanity Lamp)[07.2003 - 03.2005] ACV30..4FC |
90084-98013 |
US $12.81 |
||
|
81341
|
81341
81341-06040
Lens, Vanity Lamp
[07.2003 - 05.2006] MCV31;ACV30..4FC,5F LH |
81341-06040 |
— | ||
|
81341
|
81341
81351-AC070 Lens, Vanity Lamp[07.2003 - 05.2006] MCV31;ACV30..4FC,5F RH |
81351-AC070 |
US $5.24 |
