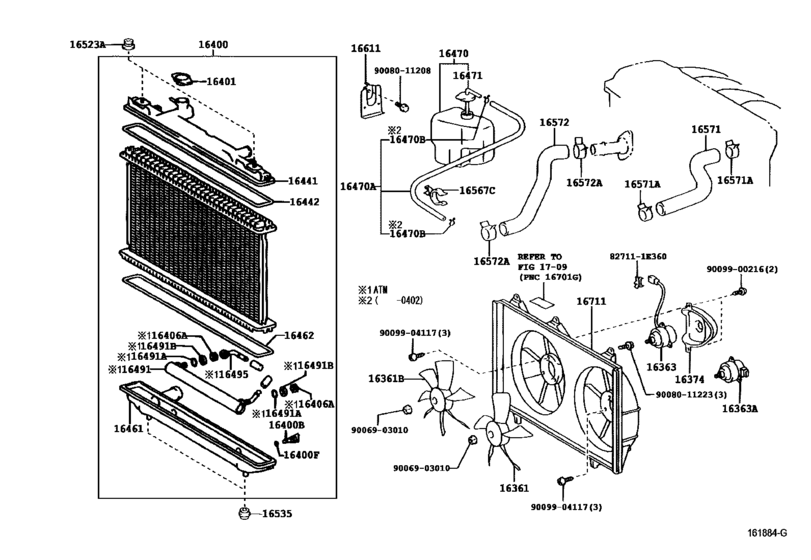

Radiator & Water Outlet ([07.2003 - ] (0307- )2AZFE) Diagram Toyota SOLARA
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 03.2005
- Gear Shift Type
- 4FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-03070
Fan
[07.2003 - 08.2004] 2AZFE..ACV30 |
16361-03070 |
— | ||
| replacement | |||||
|
16361
|
16361
16361-03071
Fan
[07.2003 - 08.2004] 2AZFE..ACV30 |
16361-03071 |
— | ||
|
16361
|
16361
16361-03071
Fan
[08.2004 - 03.2005] 2AZFE..ACV30..4FC |
16361-03071 |
— | ||
|
16361B
|
16361B
16361-03080
Fan, No.2
[07.2003 - 08.2004] 2AZFE..ACV30 |
16361-03080 |
— | ||
| replacement | |||||
|
16361B
|
16361B
16361-03081
Fan, No.2
[07.2003 - 08.2004] 2AZFE..ACV30 |
16361-03081 |
— | ||
|
16361B
|
16361B
16361-03081
Fan, No.2
[08.2004 - 03.2005] 2AZFE..ACV30..4FC |
16361-03081 |
— | ||
|
16363
|
16363
16363-0H010
Motor, Cooling Fan
[07.2003 - 03.2005] 2AZFE..ACV30..4FC |
16363-0H010 |
— | ||
|
16363A
|
16363A
16363-03100
Motor, Cooling Fan
[07.2003 - 03.2005] 2AZFE..ACV30..4FC |
16363-03100 |
— | ||
|
16374
|
16374
16366-28130 Insulator, Cooling Fan Motor[07.2003 - 03.2005] 2AZFE..ACV30..4FC |
16366-28130 |
US $19.22 |
||
|
16400
|
16400
16400-0H030
Radiator Assy
[07.2003 - 08.2004] 2AZFE..ACV30..4FC |
16400-0H030 |
— | ||
|
16400
|
16400
16400-0H200
Radiator Assy
[08.2004 - 03.2005] 2AZFE..ACV30..4FC |
16400-0H200 |
— | ||
|
16400B
|
16400B
23322-54010 Plug,air(For Oil Cooler Drain Cock)[07.2003 - 05.2006] 3MZFE..MCV31; 2AZFE..ACV30 |
23322-54010 |
from US $4.73 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[07.2003 - 05.2006] 3MZFE..MCV31; 2AZFE..ACV30 |
16492-21050 |
from US $2.13 |
||
|
16401
|
16401
16401-62100
Cap Sub-Assy, Radiator
[07.2003 - 03.2005] 2AZFE..ACV30..4FC |
16401-62100 |
— | ||
| replacements | |||||
|
16401
|
16401
16401-31520
Radiator Cap Sub-Assy (108kPa)
[07.2003 - 03.2005] 2AZFE..ACV30..4FC |
16401-31520 |
— | ||
|
16401
|
16401
16401-36020 Cap Sub-Assy, Radiator[07.2003 - 03.2005] 2AZFE..ACV30..4FC |
16401-36020 |
from US $16.31 |
||
|
16406A
|
16406A
16406-0A230 Support(For Oil Cooler)[07.2003 - 05.2006] 3MZFE..MCV31; 2AZFE..ACV30..4FC,5FC |
16406-0A230 |
US $3.35 |
||
|
16441
|
16441
16441-0H030
Tank, Radiator, Upper
[07.2003 - 05.2006] 2AZFE..ACV30 |
16441-0H030 |
— | ||
|
16442
|
16442
16442-03140
Ring, O(For Radiator Upper Tank)
[07.2003 - 05.2006] 2AZFE..ACV30 |
16442-03140 |
— | ||
|
16461
|
16461
16461-0H030
Tank, Radiator, Lower
[07.2003 - 05.2006] 2AZFE..ACV30..4FC,5FC |
16461-0H030 |
— | ||
|
16462
|
16462
16442-0A190
Ring, O(For Radiator Upper Tank)
[07.2003 - 05.2006] 3MZFE..MCV31; 2AZFE..ACV30 |
16442-0A190 |
— | ||
|
16470
|
16470
16470-AA020
Tank Assy, Radiator Reserve
[07.2003 - 03.2005] 2AZFE..ACV30..4FC |
16470-AA020 |
— | ||
|
16470A
|
16470A
16472-AB010
Hose Or Pipe(For Radiator Reserve Tank)
[07.2003 - 03.2005] 2AZFE..ACV30..4FC *H,L=625 |
16472-AB010 |
— | ||
|
16470B
|
16470B
90467-12058 Clamp Or Clip(For Radiator Reserve Tank Hose)[07.2003 - 02.2004] 2AZFE..ACV30..4FC; 3MZFE..MCV31; 2AZFE..ACV30..5F |
90467-12058 |
from US $0.70 |
||
|
16471
|
16471
16471-AA010 Cap Sub-Assy, Reserve Tank[07.2003 - 03.2005] 2AZFE..ACV30..4FC |
16471-AA010 |
from US $5.72 |
||
|
16491
|
16491
16491-03150 Cooler, Oil(For Atm)[07.2003 - 05.2006] 2AZFE..ACV30..4FC,5FC |
16491-03150 |
US $126.67 |
||
|
16491A
|
16491A
16492-07120
Ring, O(For Atm Oil Cooler)
[07.2003 - 05.2006] 3MZFE..MCV31; 2AZFE..ACV30..4FC,5FC |
16492-07120 |
— | ||
|
16491B
|
16491B
16493-62060 Washer, Plate(For Atm Oil Cooler)[07.2003 - 05.2006] 3MZFE..MCV31; 2AZFE..ACV30..4FC,5FC |
16493-62060 |
US $2.18 |
||
|
16495
|
16495
16495-0H030
Nut, Flare(For Atm Oil Cooler)
[08.2004 - 05.2006] 2AZFE..ACV30..4FC,5FC |
16495-0H030 |
— | ||
|
16495
|
16495
16495-28130
Nut, Flare(For Atm Oil Cooler)
[07.2003 - 08.2004] 2AZFE..ACV30..4FC |
16495-28130 |
— | ||
| replacement | |||||
|
16495
|
16495
16495-0H030
Nut, Flare(For Atm Oil Cooler)
[07.2003 - 08.2004] 2AZFE..ACV30..4FC |
16495-0H030 |
— | ||
|
16523A
|
16523A
16523-0H010
Cushion, Radiator Support
[07.2003 - 03.2006] 3MZFE..MCV31; 2AZFE..ACV30 |
16523-0H010 |
— | ||
| replacement | |||||
|
16523A
|
16523A
16523-0A020
Cushion, Radiator Support
[07.2003 - 03.2006] 3MZFE..MCV31; 2AZFE..ACV30 |
16523-0A020 |
— | ||
|
16535
|
16535
16535-03050
Support, Radiator, Lower
[07.2003 - 03.2005] 2AZFE..ACV30..4FC |
16535-03050 |
— | ||
|
16567C
|
16567C
90464-00796 Clamp Or Clip(For Radiator Reserve Tank Hose No.3)[07.2003 - 03.2005] 2AZFE..ACV30..4FC |
90464-00796 |
US $2.48 |
||
|
16571
|
16571
16571-0H020
Hose, Radiator, Inlet
[07.2003 - 05.2006] 2AZFE..ACV30 |
16571-0H020 |
— | ||
|
16571A
|
16571A
90080-46344 Clamp Or Clip, Hose(For Radiator Inlet)HOSE(FOR RADIATOR INLET) [07.2003 - 03.2005] 2AZFE..ACV30..4FC |
90080-46344 |
from US $6.29 |
||
|
16572
|
16572
16572-0H020
Hose, Radiator, Outlet
[07.2003 - 03.2005] 2AZFE..ACV30..4FC |
16572-0H020 |
— | ||
|
16572A
|
16572A
90080-46344 Clamp Or Clip, Hose(For Radiator Inlet)HOSE(FOR RADIATOR INLET) [07.2003 - 03.2005] 2AZFE..ACV30..4FC |
90080-46344 |
from US $6.29 |
||
|
16611
|
16611
16611-0A010 Bracket(For Radiator Reserve Tank)[07.2003 - 03.2005] 2AZFE..ACV30..4FC |
16611-0A010 |
US $17.76 |
||
|
16711
|
16711
16711-0H020
Shroud, Fan
[07.2003 - 03.2005] 2AZFE..ACV30..4FC |
16711-0H020 |
— | ||
|
827111E360
|
827111E360
82711-1E360 Clamp, Wiring Harness |
82711-1E360 |
US $1.08 |
||
|
9006903010
|
9006903010
90069-03010 NUT |
90069-03010 |
US $2.18 |
||
|
9008011208
|
9008011208
90080-11208
New Genuine Part
|
90080-11208 |
— | ||
|
9008011223
|
9008011223
90080-11223 New Genuine Part |
90080-11223 |
US $1.16 |
||
|
9009900216
|
9009900216
90099-00216
New Genuine Part
|
90099-00216 |
— | ||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
from US $0.61 |
||
