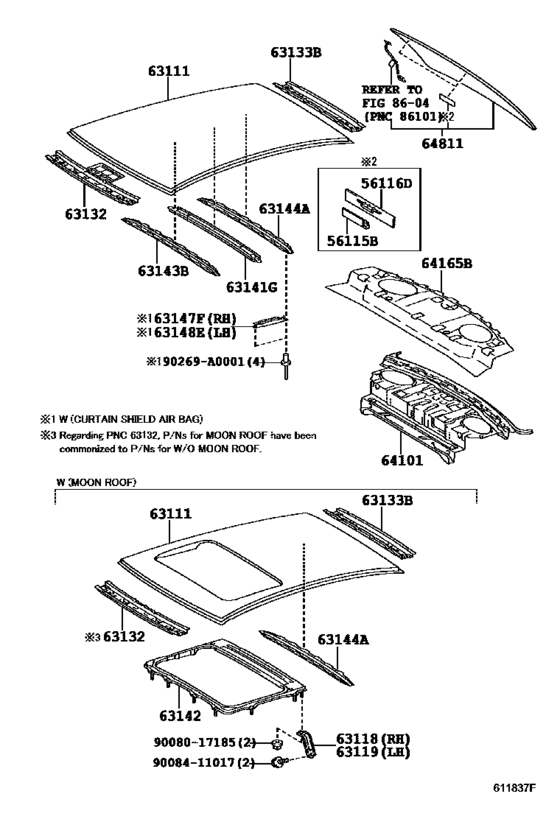

Roof Panel & Back Window Glass ([07.2003 - ] ROOF PANEL (0307- )CP) Diagram Toyota SOLARA
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 03.2005
- Gear Shift Type
- 4FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56115B
|
56115B
56115-22010 Stopper, Windshield Glass, No.1[07.2003 - 03.2005] ACV30..4FC |
56115-22010 |
from US $1.41 |
||
|
56116D
|
56116D
56116-22050 Stopper, Windshield Glass, No.1[07.2003 - 03.2005] ACV30..4FC |
56116-22050 |
from US $1.41 |
||
|
63111
|
63111
63111-AA080
Panel, Roof
[07.2003 - 03.2005] ACV30..4FC..SE |
63111-AA080 |
— | ||
|
63111
|
63111
63111-AA090
Panel, Roof
[07.2003 - 03.2005] ACV30..SLE; ACV30..4FC..SE SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE) |
63111-AA090 |
— | ||
|
63118
|
63118
63118-AA020
Support, Roof Panel, Rh
[07.2003 - 03.2005] ACV30..SLE; ACV30..4FC..SE SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE) |
63118-AA020 |
— | ||
|
63119
|
63119
63118-AA020
Support, Roof Panel, Rh
[07.2003 - 03.2005] ACV30..SLE; ACV30..4FC..SE SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE) |
63118-AA020 |
— | ||
|
63132
|
63132
63102-AA904
Panel, Windshield Header, Inner
[07.2003 - 05.2006] ACV30,MCV31..CP; MCV31..CP..SE;ACV30..(4FC,5F)..SE SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE) |
63102-AA904 |
— | ||
|
63133B
|
63133B
63133-AA050
Frame, Back Window
[07.2003 - 03.2005] ACV30..4FC |
63133-AA050 |
— | ||
|
63141G
|
63141G
63141-AA040
Reinforcement, Roof Panel, No.1
[07.2003 - 03.2005] ACV30..4FC..SE |
63141-AA040 |
— | ||
|
63142
|
63142
63142-AA030 Reinforcement, Roof Panel, No.2ROOF PANEL, NO.2 [07.2003 - 03.2005] ACV30..SLE; ACV30..4FC..SE SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE) |
63142-AA030 |
US $149.66 |
||
|
63143B
|
63143B
63143-AA040
Reinforcement, Roof Panel, No.3
[07.2003 - 03.2005] ACV30..4FC..SE |
63143-AA040 |
— | ||
|
63144A
|
63144A
63144-AA060
Reinforcement, Roof Panel, No.4
[07.2003 - 03.2005] ACV30..4FC..SE |
63144-AA060 |
— | ||
|
63144A
|
63144A
63144-AA070
Reinforcement, Roof Panel, No.4
[07.2003 - 03.2005] ACV30..SLE; ACV30..4FC..SE SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE) |
63144-AA070 |
— | ||
|
63147F
|
63147F
63147-AA020
Bracket, Roof Panel Reinforcement, Rh
[07.2003 - 03.2005] ACV30..4FC..SE SRS AIR BAG-W/CURTAIN |
63147-AA020 |
— | ||
|
63148E
|
63148E
63148-AA010
Bracket, Roof Panel Reinforcement, Lh
[07.2003 - 03.2005] ACV30..4FC..SE SRS AIR BAG-W/CURTAIN |
63148-AA010 |
— | ||
|
64101
|
64101
64101-AA090
Panel Sub-Assy, Upper Back
[07.2003 - 03.2005] ACV30..4FC |
64101-AA090 |
— | ||
|
64165B
|
64165B
64165-AA030
Cover, Upper Back Panel Hole, No.1
[07.2003 - 03.2005] ACV30..4FC |
64165-AA030 |
— | ||
|
64811
|
64811
64811-AA120
Glass, Back Window
[07.2003 - 03.2005] ACV30..4FC..SE *EHTT,T=3.5,GREEN |
64811-AA120 |
— | ||
|
64811
|
64811
64811-AA130
Glass, Back Window
[07.2003 - 03.2005] ACV30..SLE *EHTT,T=3.5,GREEN; ACV30..4FC..SE *EHTT,T=3.5,GREEN,AUDIO-PREMIUM IN-DASH 6 CHANGER |
64811-AA130 |
— | ||
|
90269A0001
|
90269A0001
90269-A0001
New Genuine Part
|
90269-A0001 |
— | ||
|
9008017185
|
9008017185
90080-17185
New Genuine Part
|
90080-17185 |
— | ||
|
9008411017
|
9008411017
90084-11017 New Genuine Part |
90084-11017 |
US $0.87 |
