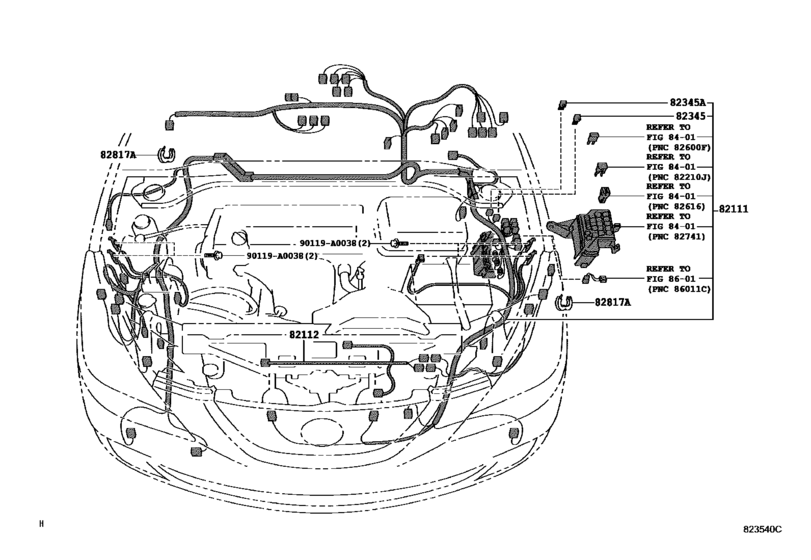

Wiring & Clamp ([07.2003 - ] ENGINE ROOM (0307- )ACV30) Diagram Toyota SOLARA
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 03.2005
- Gear Shift Type
- 4FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-AA010
Wire, Engine Room Main
[07.2003 - 03.2005] ACV30..SE |
82111-AA010 |
— | ||
|
82112
|
82112
82112-06010
Wire, Engine Room, No.2
[07.2003 - 03.2005] ACV30..4FC..SE |
82112-06010 |
— | ||
|
82345
|
82345
82345-12050 Diode[07.2003 - 03.2005] ACV30..4FC |
82345-12050 |
US $14.16 |
||
|
82345A
|
82345A
82345-32020 Diode[07.2003 - 03.2005] ACV30..4FC |
82345-32020 |
US $13.45 |
||
|
82817A
|
82817A
82817-06130
Protector, Wiring Harness, No.2
[05.2004 - 03.2005] ACV30..4FC |
82817-06130 |
— | ||
|
82817A
|
82817A
82817-2B730 Protector, Wiring Harness, No.1[07.2003 - 05.2004] ACV30..4FC; ACV30,MCV31..5F,5FC |
82817-2B730 |
US $7.28 |
||
|
90119A0038
|
90119A0038
90119-A0038
New Genuine Part
|
90119-A0038 |
— |
