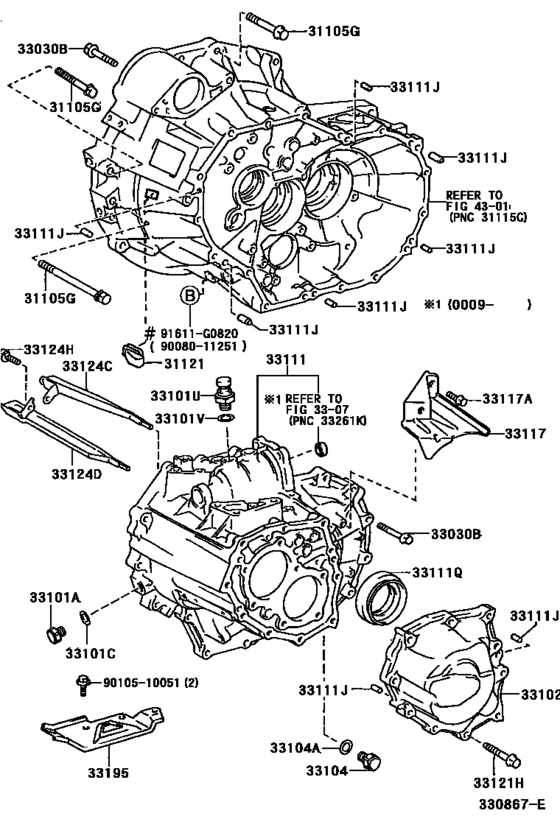

Clutch Housing & Transmission Case (Mtm) ([06.1998 - ] E153 (9806- )MCV20..MTM) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 06.1998
- To
- 07.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
90080-10133
Bolt(For Transaxle Case & Engine Setting)
[08.1999 - 07.2002] ACV20,MCV20..MTM *12-1.25PX74.5-25,(L) |
90080-10133 |
— | ||
|
31105G
|
31105G
90080-11417 Bolt(For Transaxle Case & Engine Setting)[08.1999 - 07.2002] MCV20..MTM *12-1.25PX60-30,(L) |
90080-11417 |
US $2.48 |
||
|
31105G
|
31105G
90080-11424 Bolt(For Transaxle & Engine Setting)[08.1999 - 07.2002] MCV20..MTM *12-1.25PX65-30,(L) |
90080-11424 |
US $2.48 |
||
|
31105G
|
31105G
90105-12147 Bolt(For Transaxle Case & Engine Setting)[06.1998 - 08.1999] MCV20..MTM *12-1.25PX74.5-25 |
90105-12147 |
US $4.08 |
||
|
31105G
|
31105G
90119-12252 Bolt(For Transaxle Case & Engine Setting)[06.1998 - 08.1999] MCV20..MTM *12-1.25PX60-30 |
90119-12252 |
US $2.48 |
||
|
31105G
|
31105G
91619-61265 Bolt(For Transaxle & Engine Setting)[06.1998 - 08.1999] MCV20..MTM *12-1.25PX65-30 |
91619-61265 |
US $4.12 |
||
|
31105G
|
31105G
92412-H1055 Bolt(For Transaxle & Engine Setting)[06.1998 - 07.2002] MCV20..MTM *10-1.25PX55-30 |
92412-H1055 |
US $2.77 |
||
|
31121
|
31121
31121-20010
Cover, Clutch Housing, No.1
[06.1998 - 07.2002] MCV20..MTM |
31121-20010 |
— | ||
|
33030B
|
33030B
90105-08126 Bolt(For Transaxle Case & Transmission Case Setting)[06.1998 - 07.2002] ACV20,MCV20..MTM *8-1.25PX45-27.5 |
90105-08126 |
US $3.40 |
||
|
33101A
|
33101A
90341-18033 Plug(For Manual Transmission Filler)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90341-18033 |
from US $3.40 |
||
|
33101C
|
33101C
90430-18008 Gasket[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90430-T0021 |
US $0.99 |
||
|
33101U
|
33101U
90930-03148 Plug, Breather(For Manual Transmission)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90930-03148 |
US $23.41 |
||
|
33101V
|
33101V
90430-18008 Gasket[06.1998 - 07.2002] ACV20,MCV20..MTM |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33101V
|
33101V
90430-T0021 Gasket(For Manual Transmission Filler Plug)[06.1998 - 07.2002] ACV20,MCV20..MTM |
90430-T0021 |
US $0.99 |
||
|
33102
|
33102
33102-33010 Cover Sub-Assy, Manual Transmission Case[06.1998 - 07.2002] MCV20..MTM |
33102-33010 |
US $202.38 |
||
| replacement | |||||
|
33102
|
33102
33102-33012 Cover Sub-Assy, Manual Transmission CaseMANUAL TRANSMISSION CASE [06.1998 - 07.2002] MCV20..MTM |
33102-33012 |
US $160.74 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90341-18006 |
from US $3.23 |
||
|
33104A
|
33104A
90430-18008 Gasket[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
90430-T0021 |
US $0.99 |
||
|
33111
|
33111
33101-20050 Case, Manual Transmission[06.1998 - 11.1999] MCV20..MTM |
33101-20050 |
US $591.14 |
||
| replacements | |||||
|
33111
|
33111
33250-28052 Shaft Assy, Shift & Select LeverSHIFT & SELECT LEVER [06.1998 - 11.1999] MCV20..MTM |
33250-28052 |
from US $219.33 |
||
|
33111
|
33111
33101-33020 Case, Manual Transmission[06.1998 - 11.1999] MCV20..MTM |
33101-33020 |
US $588.22 |
||
|
33111
|
33111
90384-15002 Bush, Bimetal Formed(For Outer Select Lever)[06.1998 - 11.1999] MCV20..MTM |
90384-15002 |
US $1.97 |
||
|
33111
|
33111
33250-28010 Shaft Assy, Shift & Select Lever[06.1998 - 11.1999] MCV20..MTM |
33250-28010 |
US $238.78 |
||
|
33111
|
33111
33290-33020 Ball Assy, Lock, No.1[06.1998 - 11.1999] MCV20..MTM |
33290-33020 |
US $21.49 |
||
|
33111
|
33111
33506-20320 Cover, Control Shaft[06.1998 - 11.1999] MCV20..MTM |
33506-20320 |
US $36.50 |
||
|
33111
|
33111
33101-20051 Case, Manual Transmission[11.1999 - 09.2000] MCV20..MTM |
33101-20051 |
US $591.14 |
||
| replacements | |||||
|
33111
|
33111
33250-28052 Shaft Assy, Shift & Select LeverSHIFT & SELECT LEVER [11.1999 - 09.2000] MCV20..MTM |
33250-28052 |
from US $219.33 |
||
|
33111
|
33111
33250-28010 Shaft Assy, Shift & Select Lever[11.1999 - 09.2000] MCV20..MTM |
33250-28010 |
US $238.78 |
||
|
33111
|
33111
33290-33020 Ball Assy, Lock, No.1[11.1999 - 09.2000] MCV20..MTM |
33290-33020 |
US $21.49 |
||
|
33111
|
33111
33101-33020 Case, Manual Transmission[11.1999 - 09.2000] MCV20..MTM |
33101-33020 |
US $588.22 |
||
|
33111
|
33111
33506-20320 Cover, Control Shaft[11.1999 - 09.2000] MCV20..MTM |
33506-20320 |
US $36.50 |
||
|
33111
|
33111
33101-20052 Case, Manual Transmission[09.2000 - 07.2001] MCV20..MTM |
33101-20052 |
US $591.14 |
||
| replacements | |||||
|
33111
|
33111
33250-28052 Shaft Assy, Shift & Select LeverSHIFT & SELECT LEVER [09.2000 - 07.2001] MCV20..MTM |
33250-28052 |
from US $219.33 |
||
|
33111
|
33111
33101-33020 Case, Manual Transmission[09.2000 - 07.2001] MCV20..MTM |
33101-33020 |
US $588.22 |
||
|
33111
|
33111
33250-28010 Shaft Assy, Shift & Select Lever[09.2000 - 07.2001] MCV20..MTM |
33250-28010 |
US $238.78 |
||
|
33111
|
33111
33290-33020 Ball Assy, Lock, No.1[09.2000 - 07.2001] MCV20..MTM |
33290-33020 |
US $21.49 |
||
|
33111
|
33111
33506-20320 Cover, Control Shaft[09.2000 - 07.2001] MCV20..MTM |
33506-20320 |
US $36.50 |
||
|
33111
|
33111
33101-20053 Case, Manual Transmission[07.2001 - 07.2002] MCV20..MTM |
33101-20053 |
US $591.14 |
||
| replacements | |||||
|
33111
|
33111
33250-28052 Shaft Assy, Shift & Select LeverSHIFT & SELECT LEVER [07.2001 - 07.2002] MCV20..MTM |
33250-28052 |
from US $219.33 |
||
|
33111
|
33111
33101-33020 Case, Manual Transmission[07.2001 - 07.2002] MCV20..MTM |
33101-33020 |
US $588.22 |
||
|
33111
|
33111
33506-20320 Cover, Control Shaft[07.2001 - 07.2002] MCV20..MTM |
33506-20320 |
US $36.50 |
||
|
33111J
|
33111J
90250-08054 Pin, Straight[06.1998 - 07.2002] MCV20,SXV20..MTM L=23,OD=8 |
90250-08054 |
from US $0.95 |
||
|
33111J
|
33111J
90250-12005 Pin, Straight(For Manual Transmission Case)[06.1998 - 07.2002] MCV20..MTM L=24,OD=12 |
90250-12005 |
US $3.04 |
||
|
33111Q
|
33111Q
90311-50010
Seal, Oil(For Transmission Case)
[06.1998 - 12.1999] MCV20..MTM |
90311-50010 |
— | ||
| replacement | |||||
|
33111Q
|
33111Q
90311-50027 Oil Seal, Front Drive Shaft, Lh[06.1998 - 12.1999] MCV20..MTM |
90311-50027 |
from US $10.39 |
||
|
33111Q
|
33111Q
90311-50027 Oil Seal, Front Drive Shaft, Lh[12.1999 - 07.2002] MCV20..MTM |
90311-50027 |
from US $10.39 |
||
|
33117
|
33117
33117-20020 Protector, Manual Transmission Case[06.1998 - 07.2002] ACV20,MCV20..MTM |
33117-20020 |
US $27.61 |
||
|
33117A
|
33117A
90080-10083
Bolt(For Automatic Transmission Case Protector)
[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM (L) |
90080-10083 |
— | ||
|
33117A
|
33117A
90105-08040
Bolt(For Plate Bolt Lock)
[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM (J) |
90105-08040 |
— | ||
| replacement | |||||
|
33117A
|
33117A
91641-H0820 Bolt[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM (J) |
91641-H0820 |
from US $0.80 |
||
|
33121H
|
33121H
90105-08273 Bolt, W/washer(For Transmission Case Cover)[06.1998 - 07.2002] MCV20..MTM |
90105-08273 |
US $1.65 |
||
|
33124C
|
33124C
33124-20020
Pipe, Oil Receiver, No.1(Mtm)
[06.1998 - 07.2002] MCV20..MTM |
33124-20020 |
— | ||
|
33124D
|
33124D
33124-20030 Pipe, Oil Receiver, No.1(Mtm)[06.1998 - 07.2002] MCV20..MTM |
33124-20030 |
US $16.16 |
||
|
33124H
|
33124H
90119-08648 Bolt(For Oil Receiver Pipe)[06.1998 - 07.2002] MCV20..MTM |
90119-08648 |
US $0.87 |
||
| replacement | |||||
|
33124H
|
33124H
90119-08830 Bolt(For Oil Receiver Pipe)[06.1998 - 07.2002] MCV20..MTM |
90119-08830 |
US $1.79 |
||
|
33195
|
33195
33195-33020 Hanger, Transmission Case, No.1TRANSMISSION CASE, NO.1 [06.1998 - 07.2002] ACV20,MCV20..MTM |
33195-33020 |
US $26.64 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9008011251
|
9008011251
90080-11251
Bolt (For Transfer Case Lower Protector)
|
90080-11251 |
— | ||
|
9010510051
|
9010510051
90105-10051
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
|
90105-10051 |
— | ||
| replacement | |||||
|
9010510051
|
9010510051
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.87 |
||
