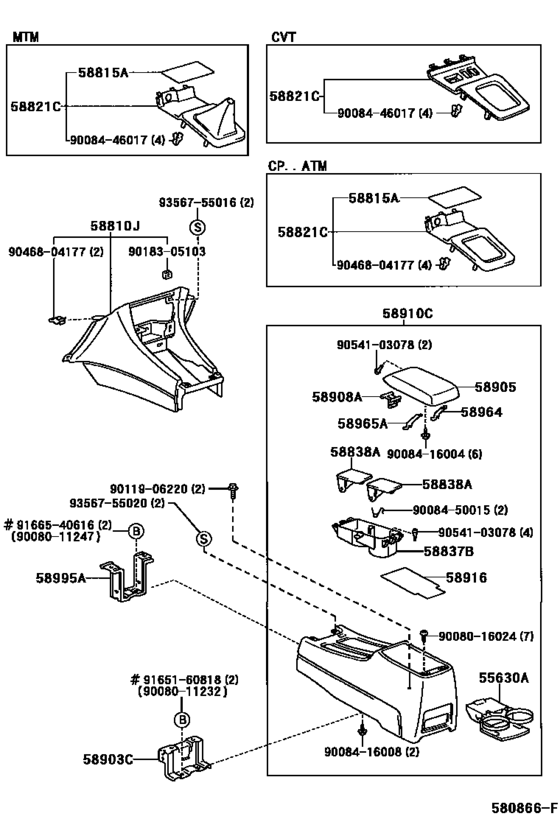

Console Box & Bracket ([06.1998 - 07.2001] (9806-0107)) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 06.1998
- To
- 07.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55630A
|
55630A
55630-AA010-A0
Holder, Rear Console Box, Cup
[06.1998 - 07.2001] MCV20,SXV20..CP IVORY,TRIM0# |
55630-AA010-A0 |
— | ||
|
55630A
|
55630A
55630-AA010-B1
Holder, Rear Console Box, Cup
[06.1998 - 07.2001] MCV20,SXV20..CP SHADOW GRAY,TRIM1# |
55630-AA010-B1 |
— | ||
|
58810J
|
58810J
58810-AA010-A0
Box Assy, Console
[06.1998 - 12.2002] ACV20,MCV20,SXV20 IVORY,TRIM0# |
58810-AA010-A0 |
— | ||
|
58810J
|
58810J
58810-AA010-B1
Box Assy, Console
[06.1998 - 12.2002] ACV20,MCV20,SXV20 SHADOW GRAY,TRIM1# |
58810-AA010-B1 |
— | ||
|
58815A
|
58815A
58815-AA010-C0
Carpet, Console Box
[06.1998 - 07.2001] MCV20,SXV20..CP BLACK,TRIM0#,1# |
58815-AA010-C0 |
— | ||
|
58821C
|
58821C
58804-06040-C0
Panel, Console, Upper
[06.1998 - 07.2001] MCV20,SXV20..MTM BLACK,TRIM0#,1# |
58804-06040-C0 |
— | ||
|
58821C
|
58821C
58804-AA100-E0
Panel, Console, Upper
[07.2001 - 12.2002] ACV20,MCV20..MTM WOOD GRAIN(BROWN),YELLOWISH BROWN,TRIM0#,1# |
58804-AA100-E0 |
— | ||
|
58821C
|
58821C
58804-AA120-C1
Panel, Console, Upper
[07.2001 - 11.2001] ACV20,MCV20..MTM..USA WOOD GRAIN(BLACK),BLACK,TRIM1# |
58804-AA120-C1 |
— | ||
|
58837B
|
58837B
58837-AA010-A0
Box, Console Cup Holder
[06.1998 - 07.2001] MCV20,SXV20 IVORY,TRIM0# |
58837-AA010-A0 |
— | ||
| replacement | |||||
|
58837B
|
58837B
58837-AA011-A0
Box, Console Cup Holder
[06.1998 - 07.2001] MCV20,SXV20 IVORY,TRIM0# |
58837-AA011-A0 |
— | ||
|
58837B
|
58837B
58837-AA010-B1
Box, Console Cup Holder
[06.1998 - 07.2001] MCV20,SXV20 SHADOW GRAY,TRIM1# |
58837-AA010-B1 |
— | ||
| replacement | |||||
|
58837B
|
58837B
58837-AA011-B1
Box, Console Cup Holder
[06.1998 - 07.2001] MCV20,SXV20 SHADOW GRAY,TRIM1# |
58837-AA011-B1 |
— | ||
|
58837B
|
58837B
58837-AA011-A0
Box, Console Cup Holder
[07.2001 - 12.2002] ACV20,MCV20 IVORY,TRIM0# |
58837-AA011-A0 |
— | ||
|
58837B
|
58837B
58837-AA011-B1
Box, Console Cup Holder
[07.2001 - 12.2002] ACV20,MCV20 SHADOW GRAY,TRIM1# |
58837-AA011-B1 |
— | ||
|
58838A
|
58838A
58838-AA010-A0
Door, Console Cup Holder Box
[06.1998 - 12.2002] ACV20,MCV20,SXV20 IVORY,TRIM0# |
58838-AA010-A0 |
— | ||
|
58838A
|
58838A
58838-AA010-B1
Door, Console Cup Holder Box
[06.1998 - 12.2002] ACV20,MCV20,SXV20 SHADOW GRAY,TRIM1# |
58838-AA010-B1 |
— | ||
|
58903C
|
58903C
58903-AA010
Bracket, Console Box Mounting, No.2
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58903-AA010 |
— | ||
|
58905
|
58905
58905-AA011-A0
Door Sub-Assy, Console Compartment
[06.1998 - 12.2002] ACV20,MCV20,SXV20 IVORY,TRIM0# |
58905-AA011-A0 |
— | ||
|
58905
|
58905
58905-AA011-B1
Door Sub-Assy, Console Compartment
[06.1998 - 12.2002] ACV20,MCV20,SXV20 SHADOW GRAY,TRIM1# |
58905-AA011-B1 |
— | ||
|
58908A
|
58908A
58908-AA010
Lock Sub-Assy, Console Compartment Door
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58908-AA010 |
— | ||
|
58910C
|
58910C
58910-AA011-A0
Box Assy, Console, Rear
[06.1998 - 07.2001] MCV20,SXV20 IVORY,TRIM0# |
58910-AA011-A0 |
— | ||
|
58910C
|
58910C
58910-AA011-B1
Box Assy, Console, Rear
[06.1998 - 07.2001] MCV20,SXV20 SHADOW GRAY,TRIM1# |
58910-AA011-B1 |
— | ||
|
58910C
|
58910C
58910-AA050-A0
Box Assy, Console, Rear
[07.2001 - 12.2001] ACV20,MCV20..CP W(SEAT HEATER),IVORY,TRIM0# |
58910-AA050-A0 |
— | ||
|
58910C
|
58910C
58910-AA050-B0
Box Assy, Console, Rear
[07.2001 - 12.2001] ACV20,MCV20..CP W(SEAT HEATER),SHADOW GRAY,TRIM1# |
58910-AA050-B0 |
— | ||
|
58916
|
58916
58916-AA010
Mat, Box Bottom
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58916-AA010 |
— | ||
|
58964
|
58964
58964-AA010
Stopper, Console Compartment Door, No.1
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58964-AA010 |
— | ||
|
58965A
|
58965A
58965-AA010
Stopper, Console Compartment Door, No.2
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
58965-AA010 |
— | ||
|
58995A
|
58995A
58995-AA010
Bracket, Console Box Mounting, No.1
[06.1998 - 07.2002] ACV20,MCV20,SXV20..MTM |
58995-AA010 |
— | ||
|
9008011232
|
9008011232
90080-11232
New Genuine Part
|
90080-11232 |
— | ||
|
9008011247
|
9008011247
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
|
9008016024
|
9008016024
90080-16024 New Genuine Part |
90080-16024 |
US $1.16 |
||
|
9008416004
|
9008416004
90084-16004
New Genuine Part
|
90084-16004 |
— | ||
|
9008416008
|
9008416008
90084-16008 New Genuine Part |
90084-16008 |
US $1.46 |
||
|
9008446017
|
9008446017
90084-46017 Clip(For Roof Console Box) |
90084-46017 |
US $0.35 |
||
|
9008450015
|
9008450015
90084-50015
New Genuine Part
|
90084-50015 |
— | ||
|
9011906220
|
9011906220
90119-06220 New Genuine Part |
90119-06220 |
US $1.60 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.61 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.68 |
||
|
9054103078
|
9054103078
90541-03078 Cushion(For Cup Holder) |
90541-03078 |
from US $1.60 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.08 |
||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.25 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.49 |
||
|
9356755020
|
9356755020
93567-55020 SCREW |
93567-55020 |
US $1.25 |
||
