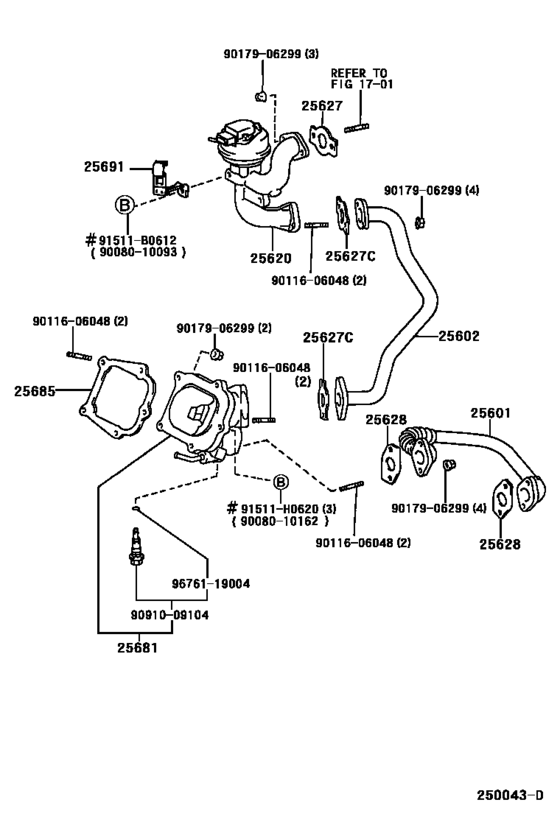

Exhaust Gas Recirculation System ([06.1998 - ] (9806- )1MZFE) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 06.1998
- To
- 07.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25611-0A020
Pipe Sub-Assy, Egr, No.1
[08.1999 - 07.2001] 1MZFE..MCV20..MTM (L) |
25611-0A020 |
— | ||
|
25601
|
25601
25611-20020 Pipe Sub-Assy, Egr, No.1EGR, NO.1 [06.1998 - 07.2001] 1MZFE..MCV20..MTM (J) |
25611-20020 |
US $90.27 |
||
|
25602
|
25602
25612-20020 Pipe Sub-Assy, Egr, No.2EGR, NO.2 [06.1998 - 07.2002] 1MZFE..MCV20..MTM |
25612-20020 |
US $55.18 |
||
|
25620
|
25620
25620-20020 Valve Assy, EgrEGR [06.1998 - 07.2002] 1MZFE..MCV20 |
25620-20020 |
from US $157.44 |
||
|
25627
|
25627
25627-0A010
Gasket, Egr Valve
[08.1999 - 07.2001] 1MZFE..MCV20..MTM (L) |
25627-0A010 |
— | ||
|
25627
|
25627
25627-20010 Gasket, Egr ValveEGR VALVE [06.1998 - 07.2001] 1MZFE..MCV20..MTM (J) |
25627-20010 |
US $1.10 |
||
|
25627C
|
25627C
25627-0A010
Gasket, Egr Valve
[08.1999 - 07.2001] 1MZFE..MCV20..MTM (L) |
25627-0A010 |
— | ||
|
25627C
|
25627C
25627-20010 Gasket, Egr ValveEGR VALVE [06.1998 - 07.2001] 1MZFE..MCV20..MTM (J) |
25627-20010 |
US $1.10 |
||
|
25628
|
25628
25628-0A010 Gasket, Egr Inlet[08.1999 - 07.2001] 1MZFE..MCV20..MTM (L) |
25628-0A010 |
US $5.68 |
||
|
25628
|
25628
25628-20010 Gasket, Egr Inlet[06.1998 - 07.2001] 1MZFE..MCV20..MTM (J) |
25628-20010 |
from US $6.10 |
||
|
25681
|
25681
25681-20020
Cooler, Egr, No.1
[06.1998 - 07.2002] 1MZFE..MCV20..MTM |
25681-20020 |
— | ||
|
25685
|
25685
25685-0A010 Gasket, E.g.r Cooler[08.1999 - 07.2001] 1MZFE..MCV20..MTM (L) |
25685-0A010 |
US $11.36 |
||
|
25685
|
25685
25685-20010 Gasket, E.g.r Cooler[06.1998 - 07.2001] 1MZFE..MCV20..MTM (J) |
25685-20010 |
US $16.20 |
||
|
25691
|
25691
25691-20030 Bracket, Egr Vacuum ModulatorEGR VACUUM MODULATOR [06.1998 - 07.2002] 1MZFE..MCV20 |
25691-20030 |
US $6.99 |
||
|
91511B0612
|
91511B0612
91511-B0612 BOLT FLANGE |
91511-B0612 |
from US $0.99 |
||
|
91511H0620
|
91511H0620
91511-H0620 Bolt (For Transaxle Case Upper Cover) |
91511-H0620 |
US $1.97 |
||
|
9008010093
|
9008010093
90080-10093
New Genuine Part
|
90080-10093 |
— | ||
|
9008010162
|
9008010162
90080-10162
New Genuine Part
|
90080-10162 |
— | ||
|
9011606048
|
9011606048
90116-06048 Bolt, Stud(For Oil Pan) |
90116-06048 |
from US $0.65 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.65 |
||
|
9091009104
|
9091009104
90910-09104 Plug, Drain Cock(For Cylinder Block Side Cover ) |
90910-09104 |
US $12.23 |
||
|
9676119004
|
9676119004
96761-19004 Ring, O(For Water Inlet Union Drain Cock Plug) |
96761-19004 |
US $3.05 |
