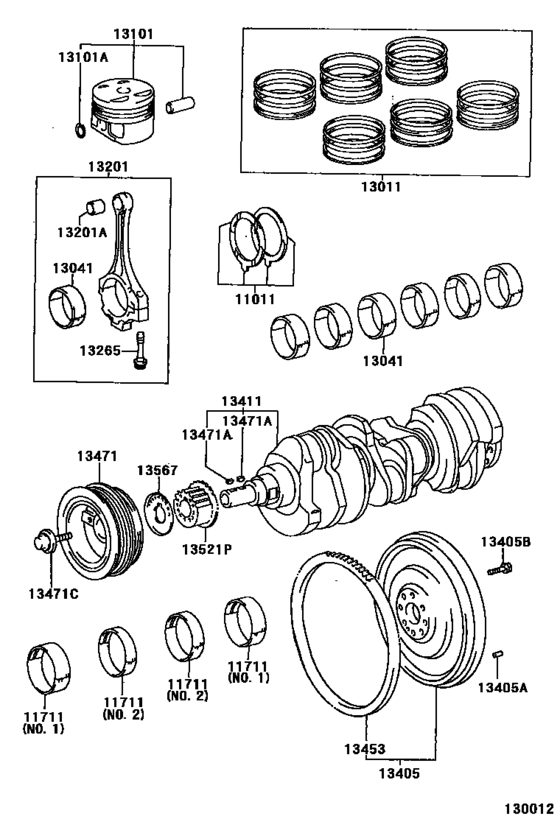

Crankshaft & Piston ([06.1998 - ] (9806- )1MZFE) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 06.1998
- To
- 07.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-0A010
Washer Set, Crankshaft Thrust
[08.1999 - 07.2002] 1MZFE..MCV20 STD,(L) |
11011-0A010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-20020 Washer Set, Crankshaft Thrust[08.1999 - 07.2002] 1MZFE..MCV20 STD,(L) |
11011-20020 |
from US $29.35 |
||
|
11011
|
11011
11011-20020 Washer Set, Crankshaft Thrust[06.1998 - 08.1999] 1MZFE..MCV20..MTM STD; 1MZFE..MCV20..ATM STD,(J) |
11011-20020 |
from US $29.35 |
||
|
11711
|
11711
11071-0A010-01
Bearing, Crankshaft
[08.1999 - 07.2002] 1MZFE..MCV20 MARK 1,NO.2,(L) |
11071-0A010-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-20021-01 Bearing, Crankshaft[08.1999 - 07.2002] 1MZFE..MCV20 MARK 1,NO.2,(L) |
11071-20021-01 |
US $26.32 |
||
|
11711
|
11711
11071-0A010-02
Bearing, Crankshaft
[08.1999 - 07.2002] 1MZFE..MCV20 MARK 2,NO.2,(L) |
11071-0A010-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-20021-02 Bearing, Crankshaft[08.1999 - 07.2002] 1MZFE..MCV20 MARK 2,NO.2,(L) |
11071-20021-02 |
from US $26.32 |
||
|
11711
|
11711
11071-0A010-03
Bearing, Crankshaft
[08.1999 - 07.2002] 1MZFE..MCV20 MARK 3,NO.2,(L) |
11071-0A010-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-0A020-03
Bearing, Crankshaft
[08.1999 - 07.2002] 1MZFE..MCV20 MARK 3,NO.2,(L) |
11071-0A020-03 |
— | ||
|
11711
|
11711
11071-0A010-04 Bearing, Crankshaft[08.1999 - 07.2002] 1MZFE..MCV20 MARK 4,NO.2,(L) |
11071-0A010-04 |
US $47.32 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-04
Bearing, Crankshaft
[08.1999 - 07.2002] 1MZFE..MCV20 MARK 4,NO.2,(L) |
11071-20021-04 |
— | ||
|
11711
|
11711
11071-0A010-05 Bearing, Crankshaft[08.1999 - 07.2002] 1MZFE..MCV20 MARK 5,NO.2,(L) |
11071-0A010-05 |
US $47.32 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-05 Bearing, Crankshaft[08.1999 - 07.2002] 1MZFE..MCV20 MARK 5,NO.2,(L) |
11071-20021-05 |
US $47.61 |
||
|
11711
|
11711
11071-20010-01 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 1,NO.2,(J) |
11071-20010-01 |
US $47.32 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-01 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 1,NO.2,(J) |
11071-20021-01 |
US $26.32 |
||
|
11711
|
11711
11071-20010-02 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 2,NO.2,(J) |
11071-20010-02 |
US $47.32 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-02 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 2,NO.2,(J) |
11071-20021-02 |
from US $26.32 |
||
|
11711
|
11711
11071-20010-03 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 3,NO.2,(J) |
11071-20010-03 |
US $47.32 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-03 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 3,NO.2,(J) |
11071-20021-03 |
US $47.61 |
||
|
11711
|
11711
11071-20010-04 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 4,NO.2,(J) |
11071-20010-04 |
US $47.32 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-04
Bearing, Crankshaft
[06.1998 - 09.1998] 1MZFE..MCV20 MARK 4,NO.2,(J) |
11071-20021-04 |
— | ||
|
11711
|
11711
11071-20010-05 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 5,NO.2,(J) |
11071-20010-05 |
US $47.32 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-05 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 5,NO.2,(J) |
11071-20021-05 |
US $47.61 |
||
|
11711
|
11711
11071-20020-01 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 1,NO.2,(J) |
11071-20020-01 |
US $47.47 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-01 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 1,NO.2,(J) |
11071-20021-01 |
US $26.32 |
||
|
11711
|
11711
11071-20020-02 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 2,NO.2,(J) |
11071-20020-02 |
US $47.47 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-02 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 2,NO.2,(J) |
11071-20021-02 |
from US $26.32 |
||
|
11711
|
11711
11071-20020-03 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 3,NO.2,(J) |
11071-20020-03 |
US $47.47 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-03 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 3,NO.2,(J) |
11071-20021-03 |
US $47.61 |
||
|
11711
|
11711
11071-20020-04 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 4,NO.2,(J) |
11071-20020-04 |
US $47.47 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-04
Bearing, Crankshaft
[09.1998 - 07.2002] 1MZFE..MCV20 MARK 4,NO.2,(J) |
11071-20021-04 |
— | ||
|
11711
|
11711
11071-20020-05 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 5,NO.2,(J) |
11071-20020-05 |
US $47.47 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-05 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 5,NO.2,(J) |
11071-20021-05 |
US $47.61 |
||
|
11711
|
11711
11071-20020-06 Bearing, Crankshaft[07.2001 - 07.2002] 1MZFE..MCV20 MARK 6,NO.2,(J) |
11071-20020-06 |
US $47.47 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-06 Bearing, Crankshaft[07.2001 - 07.2002] 1MZFE..MCV20 MARK 6,NO.2,(J) |
11071-20021-06 |
US $47.61 |
||
|
11711
|
11711
11071-20020-07 Bearing, Crankshaft[07.2001 - 07.2002] 1MZFE..MCV20 MARK 7,NO.2,(J) |
11071-20020-07 |
US $47.47 |
||
| replacement | |||||
|
11711
|
11711
11071-20021-07 Bearing, Crankshaft[07.2001 - 07.2002] 1MZFE..MCV20 MARK 7,NO.2,(J) |
11071-20021-07 |
US $47.61 |
||
|
11711
|
11711
11701-0A010-03 Bearing, Crankshaft[08.1999 - 07.2002] 1MZFE..MCV20 MARK 3,NO.1,(L) |
11701-0A010-03 |
US $53.73 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-03 Bearing, Crankshaft[08.1999 - 07.2002] 1MZFE..MCV20 MARK 3,NO.1,(L) |
11701-20030-03 |
from US $27.82 |
||
|
11711
|
11711
11701-0A010-04 Bearing, Crankshaft[08.1999 - 07.2002] 1MZFE..MCV20 MARK 4,NO.1,(L) |
11701-0A010-04 |
US $53.73 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-04
Bearing, Crankshaft
[08.1999 - 07.2002] 1MZFE..MCV20 MARK 4,NO.1,(L) |
11701-20030-04 |
— | ||
|
11711
|
11711
11701-0A010-05 Bearing, Crankshaft[08.1999 - 07.2002] 1MZFE..MCV20 MARK 5,NO.1,(L) |
11701-0A010-05 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-05 Bearing, Crankshaft[08.1999 - 07.2002] 1MZFE..MCV20 MARK 5,NO.1,(L) |
11701-20030-05 |
from US $24.74 |
||
|
11711
|
11711
11701-0A010-06 Bearing, Crankshaft[08.1999 - 07.2002] 1MZFE..MCV20 MARK 6,NO.1,(L) |
11701-0A010-06 |
US $33.92 |
||
|
11711
|
11711
11701-0A010-07 Bearing, Crankshaft[08.1999 - 07.2002] 1MZFE..MCV20 MARK 7,NO.1,(L) |
11701-0A010-07 |
US $33.92 |
||
|
11711
|
11711
11701-20010-03 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 3,NO.1,(J) |
11701-20010-03 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-03 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 3,NO.1,(J) |
11701-20030-03 |
from US $27.82 |
||
|
11711
|
11711
11701-20010-04 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 4,NO.1,(J) |
11701-20010-04 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-04
Bearing, Crankshaft
[06.1998 - 09.1998] 1MZFE..MCV20 MARK 4,NO.1,(J) |
11701-20030-04 |
— | ||
|
11711
|
11711
11701-20010-05 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 5,NO.1,(J) |
11701-20010-05 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-05 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 5,NO.1,(J) |
11701-20030-05 |
from US $24.74 |
||
|
11711
|
11711
11701-20010-06 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 6,NO.1,(J) |
11701-20010-06 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-06 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 6,NO.1,(J) |
11701-20030-06 |
US $60.86 |
||
|
11711
|
11711
11701-20010-07 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 7,NO.1,(J) |
11701-20010-07 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-07 Bearing, Crankshaft[06.1998 - 09.1998] 1MZFE..MCV20 MARK 7,NO.1,(J) |
11701-20030-07 |
US $60.86 |
||
|
11711
|
11711
11701-20020-01 Bearing, Crankshaft[07.2001 - 07.2002] 1MZFE..MCV20 MARK 1,NO.1,(J) |
11701-20020-01 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-01 Bearing, Crankshaft[07.2001 - 07.2002] 1MZFE..MCV20 MARK 1,NO.1,(J) |
11701-20030-01 |
from US $28.12 |
||
|
11711
|
11711
11701-20020-02 Bearing, Crankshaft[07.2001 - 07.2002] 1MZFE..MCV20 MARK 2,NO.1,(J) |
11701-20020-02 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-02 Bearing, Crankshaft[07.2001 - 07.2002] 1MZFE..MCV20 MARK 2,NO.1,(J) |
11701-20030-02 |
from US $24.81 |
||
|
11711
|
11711
11701-20020-03 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 3,NO.1,(J) |
11701-20020-03 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-03 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 3,NO.1,(J) |
11701-20030-03 |
from US $27.82 |
||
|
11711
|
11711
11701-20020-04 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 4,NO.1,(J) |
11701-20020-04 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-04
Bearing, Crankshaft
[09.1998 - 07.2002] 1MZFE..MCV20 MARK 4,NO.1,(J) |
11701-20030-04 |
— | ||
|
11711
|
11711
11701-20020-05 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 5,NO.1,(J) |
11701-20020-05 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-05 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 5,NO.1,(J) |
11701-20030-05 |
from US $24.74 |
||
|
11711
|
11711
11701-20020-06 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 6,NO.1,(J) |
11701-20020-06 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-06 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 6,NO.1,(J) |
11701-20030-06 |
US $60.86 |
||
|
11711
|
11711
11701-20020-07 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 7,NO.1,(J) |
11701-20020-07 |
US $53.87 |
||
| replacement | |||||
|
11711
|
11711
11701-20030-07 Bearing, Crankshaft[09.1998 - 07.2002] 1MZFE..MCV20 MARK 7,NO.1,(J) |
11701-20030-07 |
US $60.86 |
||
|
13011
|
13011
13011-0A020
Ring Set, Piston
[08.1999 - 07.2002] 1MZFE..MCV20 STD,(L) |
13011-0A020 |
— | ||
|
13011
|
13011
13011-20012 Ring Set, Piston[08.1998 - 02.1999] 1MZFE..MCV20..MTM STD; 1MZFE..MCV20..ATM STD,(J) |
13011-20012 |
US $346.53 |
||
| replacement | |||||
|
13011
|
13011
13011-20023 Ring Set, Piston[08.1998 - 02.1999] 1MZFE..MCV20..MTM STD; 1MZFE..MCV20..ATM STD,(J) |
13011-20023 |
from US $238.68 |
||
|
13011
|
13011
13011-20021 Ring Set, Piston[06.1998 - 08.1998] 1MZFE..MCV20..MTM STD |
13011-20021 |
US $346.53 |
||
| replacement | |||||
|
13011
|
13011
13011-20023 Ring Set, Piston[06.1998 - 08.1998] 1MZFE..MCV20..MTM STD |
13011-20023 |
from US $238.68 |
||
|
13011
|
13011
13011-20022
Ring Set, Piston
[02.1999 - 08.1999] 1MZFE..MCV20..MTM STD; 1MZFE..MCV20..ATM STD,(J) |
13011-20022 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-20023 Ring Set, Piston[02.1999 - 08.1999] 1MZFE..MCV20..MTM STD; 1MZFE..MCV20..ATM STD,(J) |
13011-20023 |
from US $238.68 |
||
|
13041
|
13041
13041-0A010-01
Bearing, Connecting Rod
[08.1999 - 07.2002] 1MZFE..MCV20 MARK 1,MARK 1,(L) |
13041-0A010-01 |
— | ||
|
13041
|
13041
13041-0A010-02
Bearing, Connecting Rod
[08.1999 - 07.2002] 1MZFE..MCV20 MARK 2,MARK 2,(L) |
13041-0A010-02 |
— | ||
|
13041
|
13041
13041-0A010-03
Bearing, Connecting Rod
[08.1999 - 07.2002] 1MZFE..MCV20 MARK 3,MARK 3,(L) |
13041-0A010-03 |
— | ||
|
13041
|
13041
13041-0A010-04
Bearing, Connecting Rod
[08.1999 - 07.2002] 1MZFE..MCV20 MARK 4,MARK 4,(L) |
13041-0A010-04 |
— | ||
|
13041
|
13041
13041-20010-01
Bearing, Connecting Rod
[06.1998 - 08.1999] 1MZFE..MCV20..MTM MARK 1; 1MZFE..MCV20..ATM MARK 1,(J) |
13041-20010-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-20011-01 Bearing, Connecting Rod[06.1998 - 08.1999] 1MZFE..MCV20..MTM MARK 1; 1MZFE..MCV20..ATM MARK 1,(J) |
13041-20011-01 |
from US $17.42 |
||
|
13041
|
13041
13041-20010-02 Bearing, Connecting Rod[06.1998 - 08.1999] 1MZFE..MCV20..MTM MARK 2; 1MZFE..MCV20..ATM MARK 2,(J) |
13041-20010-02 |
US $29.41 |
||
| replacement | |||||
|
13041
|
13041
13041-20011-02 Bearing, Connecting Rod[06.1998 - 08.1999] 1MZFE..MCV20..MTM MARK 2; 1MZFE..MCV20..ATM MARK 2,(J) |
13041-20011-02 |
from US $14.82 |
||
|
13041
|
13041
13041-20010-03 Bearing, Connecting Rod[06.1998 - 08.1999] 1MZFE..MCV20..MTM MARK 3; 1MZFE..MCV20..ATM MARK 3,(J) |
13041-20010-03 |
US $29.41 |
||
| replacement | |||||
|
13041
|
13041
13041-20011-03 Bearing, Connecting Rod[06.1998 - 08.1999] 1MZFE..MCV20..MTM MARK 3; 1MZFE..MCV20..ATM MARK 3,(J) |
13041-20011-03 |
from US $15.01 |
||
|
13041
|
13041
13041-20010-04 Bearing, Connecting Rod[06.1998 - 08.1999] 1MZFE..MCV20..MTM MARK 4; 1MZFE..MCV20..ATM MARK 4,(J) |
13041-20010-04 |
US $29.41 |
||
| replacement | |||||
|
13041
|
13041
13041-20011-04 Bearing, Connecting Rod[06.1998 - 08.1999] 1MZFE..MCV20..MTM MARK 4; 1MZFE..MCV20..ATM MARK 4,(J) |
13041-20011-04 |
from US $17.42 |
||
|
13101
|
13101
13101-0A020
Piston Sub-Assy, W/pin
[08.1999 - 07.2001] 1MZFE..MCV20..MTM STD,RH,(L) |
13101-0A020 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-20030 Piston Sub-Assy, W/pin[08.1999 - 07.2001] 1MZFE..MCV20..MTM STD,RH,(L) |
13101-20030 |
US $104.83 |
||
|
13101
|
13101
13101-20030 Piston Sub-Assy, W/pin[06.1998 - 07.1999] 1MZFE..MCV20 STD,RH,(J) |
13101-20030 |
US $104.83 |
||
|
13101
|
13101
13301-0A020
Piston Sub-Assy, W/pin
[08.1999 - 07.2001] 1MZFE..MCV20..MTM STD,LH,(L) |
13301-0A020 |
— | ||
|
13101
|
13101
13301-20020
Piston Sub-Assy, W/pin
[06.1998 - 07.1999] 1MZFE..MCV20 STD,LH,(J) |
13301-20020 |
— | ||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[03.2000 - 07.2002] 1MZFE..MCV20 |
90520-22025 |
from US $1.90 |
||
|
13101A
|
13101A
90521-25004
Ring, Hole Snap(For Piston Pin)
[06.1998 - 03.2000] 1MZFE..MCV20 |
90521-25004 |
— | ||
| replacement | |||||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[06.1998 - 03.2000] 1MZFE..MCV20 |
90520-22025 |
from US $1.90 |
||
|
13201
|
13201
13201-09070
Rod Sub-Assy, Connecting
[08.1999 - 06.2002] 1MZFE..MCV20 (L) |
13201-09070 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-09190
Rod Sub-Assy, Connecting
[08.1999 - 06.2002] 1MZFE..MCV20 (L) |
13201-09190 |
— | ||
|
13201
|
13201
13201-29015
Rod Sub-Assy, Connecting
[06.1998 - 08.1999] 1MZFE..MCV20..MTM; 1MZFE..MCV20..ATM (J) |
13201-29015 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29525 Rod Sub-Assy, Connecting[06.1998 - 08.1999] 1MZFE..MCV20..MTM; 1MZFE..MCV20..ATM (J) |
13201-29525 |
US $221.31 |
||
|
13201A
|
13201A
90999-73119 Bush(For Connecting Rod Small End)[06.1998 - 07.2002] 1MZFE..MCV20 |
90999-73119 |
from US $10.93 |
||
|
13265
|
13265
13265-28010
Bolt, Connecting Rod
[06.2002 - 07.2002] 1MZFE..MCV20 |
13265-28010 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-28020 BOLT CONNECTING ROD[06.2002 - 07.2002] 1MZFE..MCV20 |
13265-28020 |
from US $2.77 |
||
|
13265
|
13265
13265-50020 Bolt, Connecting Rod[06.1998 - 06.2002] 1MZFE..MCV20 |
13265-50020 |
US $9.50 |
||
|
13405
|
13405
13405-62020 Flywheel Sub-Assy[06.1998 - 07.2002] 1MZFE..MCV20..MTM |
13405-62020 |
US $297.18 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[06.1998 - 07.2002] 1MZFE..MCV20..MTM L=18,OD=8 |
90250-08120 |
from US $0.99 |
||
|
13405B
|
13405B
90105-10138 Bolt, Flywheel Setting[06.1998 - 07.2002] 1MZFE..MCV20..MTM |
90105-10138 |
from US $1.46 |
||
|
13411
|
13411
13401-0A020
Crankshaft
[08.1999 - 07.2002] 1MZFE..MCV20 (L) |
13401-0A020 |
— | ||
|
13411
|
13411
13401-20030
Crankshaft
[06.1998 - 08.1999] 1MZFE..MCV20..MTM; 1MZFE..MCV20..ATM (J) |
13401-20030 |
— | ||
|
13453
|
13453
13453-74011 Gear, Flywheel Ring[06.1998 - 07.2002] 1MZFE..MCV20..MTM |
13453-74011 |
from US $52.44 |
||
|
13471
|
13471
13408-0A010
Pulley, Crankshaft
[06.1998 - 07.2001] 1MZFE..MCV20..MTM (L); 1MZFE..MCV20..ATM |
13408-0A010 |
— | ||
|
13471
|
13471
13408-20010 Pulley, Crankshaft[06.1998 - 07.2001] 1MZFE..MCV20..MTM (J) |
13408-20010 |
from US $244.47 |
||
|
13471A
|
13471A
95161-30516 Key(For Oil Pump Drive Spline)[06.1998 - 07.2002] 1MZFE..MCV20 |
95161-30516 |
from US $1.06 |
||
|
13471C
|
13471C
90119-16004 Bolt(For Crankshaft Pulley Set)[06.1998 - 07.2002] 1MZFE..MCV20 |
90119-16004 |
from US $5.07 |
||
|
13521P
|
13521P
13521-0A010
Pulley, Crankshaft Timing
[08.1999 - 07.2001] 1MZFE..MCV20..MTM (L) |
13521-0A010 |
— | ||
| replacement | |||||
|
13521P
|
13521P
13521-20020 Pulley, Crankshaft Timing[08.1999 - 07.2001] 1MZFE..MCV20..MTM (L) |
13521-20020 |
from US $44.42 |
||
|
13521P
|
13521P
13521-20020 Pulley, Crankshaft Timing[06.1998 - 07.2001] 1MZFE..MCV20..MTM (J) |
13521-20020 |
from US $44.42 |
||
|
13567
|
13567
13567-62010 Guide, Timing Belt[06.1998 - 07.2002] 1MZFE..MCV20 |
13567-62010 |
from US $4.22 |
||
