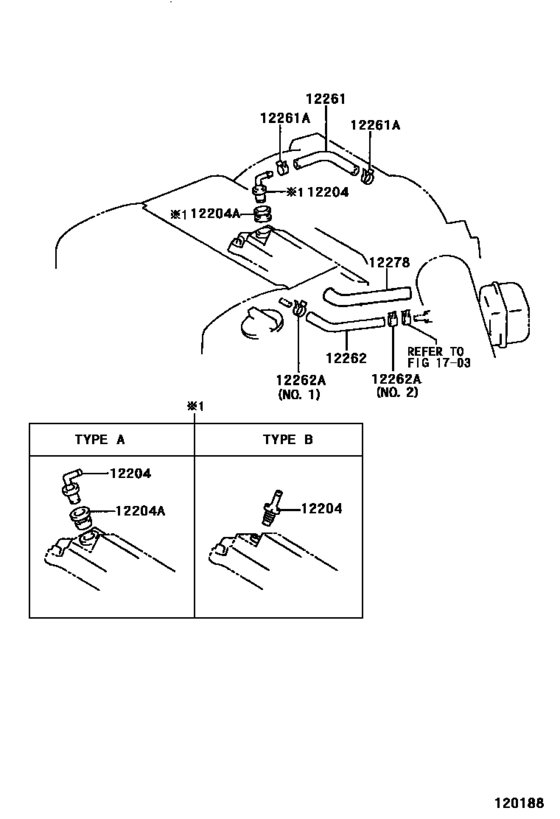

Ventilation Hose ([06.1998 - ] (9806- )1MZFE) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 06.1998
- To
- 07.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-20020 Valve Sub-Assy, Ventilation[06.1998 - 07.2002] 1MZFE..MCV20 TYPE A:REFER TO ILLUSTRATION |
12204-20020 |
from US $20.14 |
||
|
12204
|
12204
12204-20040 Valve Sub-Assy, Ventilation[01.2001 - 07.2001] 1MZFE..MCV20..MTM TYPE B:REFER TO ILLUSTRATION |
12204-20040 |
from US $13.40 |
||
|
12204A
|
12204A
90480-18001 Grommet(For Ventilation System)[06.1998 - 07.2002] 1MZFE..MCV20 |
90480-18001 |
from US $3.71 |
||
|
12261
|
12261
12261-20011 Hose, Ventilation[06.1998 - 07.2002] 1MZFE..MCV20 |
12261-20011 |
from US $9.56 |
||
|
12261A
|
12261A
90467-14017 Clip Or Clamp(For Ventilation Hose)[06.1998 - 07.2002] 1MZFE..MCV20 |
90467-14017 |
from US $1.01 |
||
|
12262
|
12262
12262-0A040 Hose, Ventilation, No.2[06.1998 - 07.2002] 1MZFE..MCV20 |
12262-0A040 |
US $20.82 |
||
| replacement | |||||
|
12262
|
12262
12262-20020 Hose, Ventilation, No.2[06.1998 - 07.2002] 1MZFE..MCV20 |
12262-20020 |
from US $13.43 |
||
|
12262A
|
12262A
90467-17011
Clip Or Clamp(For Ventilation Hose)
[06.1998 - 07.2002] 1MZFE..MCV20 NO.1 |
90467-17011 |
— | ||
| replacement | |||||
|
12262A
|
12262A
96134-51700 Clip Or Clamp(For Ventilation Hose)[06.1998 - 07.2002] 1MZFE..MCV20 NO.1 |
96134-51700 |
US $2.51 |
||
|
12262A
|
12262A
96134-41900 Clip Or Clamp(For Ventilation Hose)[06.1998 - 07.2002] 1MZFE..MCV20 NO.2 |
96134-41900 |
from US $1.58 |
||
|
12278
|
12278
12278-0A020
Insulator, Ventilation Hose Heat
[06.1998 - 07.2002] 1MZFE..MCV20 |
12278-0A020 |
— | ||
