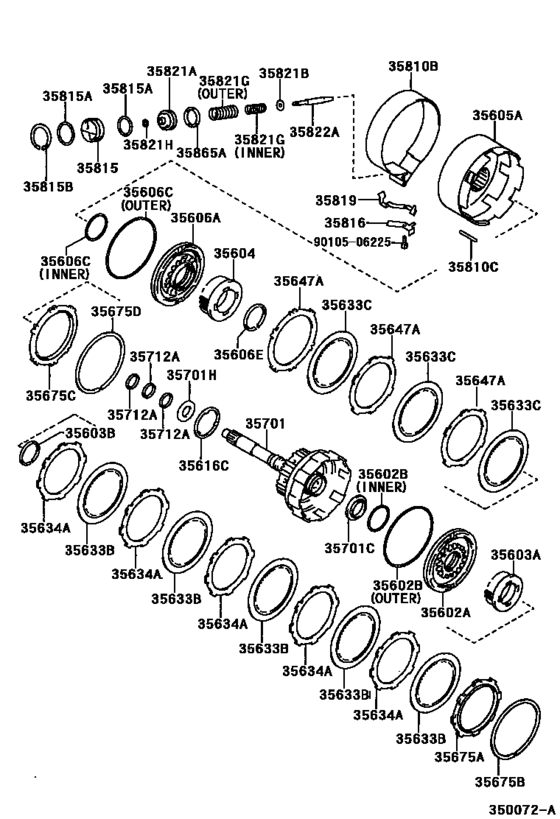

Brake Band & Multiple Disc Clutch (Atm) ([06.1998 - ] A541E (9806- )MCV20..ATM) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 06.1998
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35602A
|
35602A
35602-33030 Piston Sub-Assy, Forward Clutch[06.1998 - 12.2002] MCV20..ATM |
35602-33030 |
US $54.60 |
||
|
35602B
|
35602B
90301-59004 Ring, O (For Forward Clutch Piston)[06.1998 - 12.2002] MCV20..ATM INNER |
90301-59004 |
US $3.67 |
||
|
35602B
|
35602B
90301-99016 Ring, O (For Overdrive Direct Clutch Piston)[06.1998 - 12.2002] MCV20,SXV20..ATM OUTER |
90301-99016 |
US $14.34 |
||
|
35603A
|
35603A
35603-33010 Spring Sub-Assy, Forward Clutch Return[06.1998 - 12.2002] MCV20..ATM |
35603-33010 |
US $18.35 |
||
|
35603B
|
35603B
90520-54002 Ring, Shaft Snap(For Forward Clutch Piston Return Spring)[06.1998 - 12.2002] MCV20..ATM |
90520-54002 |
US $3.20 |
||
|
35604
|
35604
35604-33010 Spring Sub-Assy, Direct Clutch Return[06.1998 - 12.2002] MCV20..ATM |
35604-33010 |
US $23 |
||
|
35605A
|
35605A
35605-33021 Drum Sub-Assy, Direct Clutch[06.1998 - 12.2002] MCV20..ATM |
35605-33021 |
US $248.98 |
||
|
35606A
|
35606A
35606-32031 Piston Sub-Assy, Direct Clutch[06.1998 - 12.2002] MCV20..ATM |
35606-32031 |
US $43.97 |
||
|
35606C
|
35606C
90301-59004 Ring, O (For Forward Clutch Piston)[06.1998 - 12.2002] MCV20..ATM INNER |
90301-59004 |
US $3.67 |
||
|
35606C
|
35606C
90301-99016 Ring, O (For Overdrive Direct Clutch Piston)[06.1998 - 12.2002] MCV20,SXV20..ATM OUTER |
90301-99016 |
US $14.34 |
||
|
35606E
|
35606E
90520-54002 Ring, Shaft Snap(For Forward Clutch Piston Return Spring)[06.1998 - 12.2002] MCV20..ATM |
90520-54002 |
US $3.20 |
||
|
35616C
|
35616C
35616-32030
Washer, Clutch Drum Thrust (For Direct Clutch Drum)
[06.1998 - 12.2002] MCV20..ATM |
35616-32030 |
— | ||
|
35633B
|
35633B
35633-33100 Disc, Clutch (For Forward Multiple Disc Clutch)[06.1998 - 12.2002] MCV20..ATM |
35633-33100 |
from US $35.19 |
||
|
35633C
|
35633C
35633-33050 Disc, Clutch (For Direct Multiple Disc Clutch)[06.1998 - 12.2002] MCV20..ATM |
35633-33050 |
from US $42.26 |
||
|
35634A
|
35634A
35634-33060 Plate, Clutch (For Forward Multiple Disc Clutch)[06.1998 - 12.2002] MCV20..ATM T=2.0 |
35634-33060 |
from US $28.54 |
||
|
35647A
|
35647A
35647-33020 Plate, Clutch (For Direct Multiple Disc Clutch)[06.1998 - 12.2002] MCV20..ATM |
35647-33020 |
from US $32.18 |
||
|
35675A
|
35675A
35675-33010 Flange, Forward Clutch[06.1998 - 12.2002] MCV20..ATM T=2.3 |
35675-33010 |
US $54.60 |
||
|
35675A
|
35675A
35675-33020 Flange, Forward Clutch[06.1998 - 12.2002] MCV20..ATM T=2.7 |
35675-33020 |
from US $49.36 |
||
|
35675A
|
35675A
35675-33050 Flange, Forward Clutch[06.1998 - 12.2002] MCV20..ATM T=2.5 |
35675-33050 |
US $57.95 |
||
|
35675B
|
35675B
90521-99001 Ring, Hole Snap, No.2 (For Overdrive)[06.1998 - 12.2002] MCV20,SXV20..ATM |
90521-99001 |
US $4.54 |
||
|
35675C
|
35675C
35675-33030 Flange, Direct Clutch[06.1998 - 12.2002] MCV20..ATM T=2.7 |
35675-33030 |
from US $68.43 |
||
|
35675C
|
35675C
35675-33040 Flange, Direct Clutch[06.1998 - 12.2002] MCV20..ATM T=3.0 |
35675-33040 |
US $75.71 |
||
|
35675D
|
35675D
90521-99032 Ring, Hole Snap (For Direct Clutch Flange)[06.1998 - 12.2002] MCV20..ATM |
90521-99032 |
US $3.49 |
||
|
35701
|
35701
35701-33050 Shaft Sub-Assy, Input[06.1998 - 12.2002] MCV20..ATM |
35701-33050 |
US $425.15 |
||
|
35701C
|
35701C
35789-33010
Race, Thrust Bearing (For Input Shaft Rear)
[06.1998 - 12.2002] MCV20..ATM |
35789-33010 |
— | ||
|
35701H
|
35701H
90374-27003
Bearing, Thrust Needle Roller (For Input Shaft)
[06.1998 - 12.2002] MCV20..ATM OD=45.9 |
90374-27003 |
— | ||
|
35701H
|
35701H
90374-27004 Bearing, Thrust Needle Roller (For Input Shaft)[06.1998 - 12.2002] MCV20..ATM OD=47.1 |
90374-27004 |
from US $17.47 |
||
|
35712A
|
35712A
35712-32010 Ring, Input Shaft Oil Seal[06.1998 - 12.2002] MCV20..ATM |
35712-32010 |
US $5.68 |
||
|
35810B
|
35810B
35810-33010 Band Assy, 2Nd Coast Brake[06.1998 - 12.2002] MCV20..ATM |
35810-33010 |
US $110.66 |
||
|
35810C
|
35810C
90250-07001 Pin (For 2Nd Coast Brake Band)[06.1998 - 12.2002] MCV20,SXV20..ATM |
90250-07001 |
from US $1.52 |
||
|
35815
|
35815
35815-33010 Cover, 2Nd Coast Brake[06.1998 - 12.2002] MCV20..ATM |
35815-33010 |
US $23.59 |
||
|
35815A
|
35815A
90301-43005 Ring, O (For 2Nd Coast Brake Cover)[06.1998 - 12.2002] MCV20..ATM |
90301-43005 |
US $3.79 |
||
|
35815B
|
35815B
90521-55004 Ring, Hole Snap (For 2Nd Coast Brake Cover)[06.1998 - 12.2002] MCV20..ATM |
90521-55004 |
US $1.89 |
||
|
35816
|
35816
35816-32010 Retainer, Brake Band Guide Plate[06.1998 - 12.2002] MCV20..ATM |
35816-32010 |
from US $2.66 |
||
|
35819
|
35819
35819-33010 Plate, 2Nd Coast Brake Band Guide[06.1998 - 12.2002] MCV20..ATM |
35819-33010 |
US $5.53 |
||
|
35821A
|
35821A
35821-33010 Piston, 2Nd Coast Brake[06.1998 - 12.2002] MCV20..ATM |
35821-33010 |
US $15.43 |
||
|
35821B
|
35821B
90201-06014 Washer, Plate (For 2Nd Coast Brake Piston)[06.1998 - 12.2002] MCV20..ATM |
90201-06014 |
US $2.62 |
||
|
35821G
|
35821G
90501-25047 Spring, Compression (For 2Nd Coast Brake Piston)[06.1998 - 12.2002] MCV20..ATM OUTER |
90501-25047 |
US $3.35 |
||
|
35821G
|
35821G
90501-29046 Spring, Compression (For 2Nd Coast Brake Piston)[06.1998 - 12.2002] MCV20..ATM INNER |
90501-29046 |
US $4.22 |
||
|
35821H
|
35821H
96160-00500 Ring, E(For Over Center Lever)[06.1998 - 12.2002] MCV20,SXV20..ATM |
96160-00500 |
from US $0.82 |
||
|
35822A
|
35822A
35822-32030 Rod, 2Nd Coast Brake Piston[06.1998 - 12.2002] MCV20..ATM L=95.2 |
35822-32030 |
US $14.27 |
||
|
35822A
|
35822A
35822-32040 Rod, 2Nd Coast Brake Piston[06.1998 - 12.2002] MCV20..ATM L=96.3 |
35822-32040 |
US $14.27 |
||
|
35865A
|
35865A
35865-33010 Ring, 2Nd Coast Brake Piston Oil Seal[06.1998 - 12.2002] MCV20..ATM |
35865-33010 |
US $9.90 |
||
|
9010506225
|
9010506225
90105-06225 BOLTWASHER BASED |
90105-06225 |
from US $0.89 |
