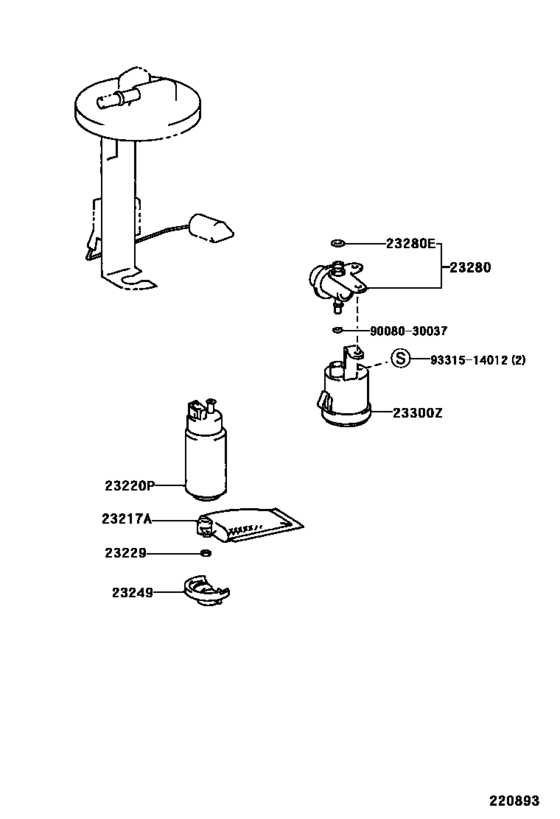

Fuel Injection System ([06.1998 - ] (9806- )1MZFE) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 06.1998
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23217A
|
23217A
23217-03030
Filter, Fuel Pump
[06.1998 - 07.2002] 1MZFE..MCV20 |
23217-03030 |
— | ||
| replacement | |||||
|
23217A
|
23217A
23217-0F010 Filter, Fuel Pump[06.1998 - 07.2002] 1MZFE..MCV20 |
23217-0F010 |
from US $7.47 |
||
|
23220P
|
23220P
23221-03040 Pump Assy, Fuel[06.1998 - 07.2002] 1MZFE..MCV20 |
23221-03040 |
US $416.42 |
||
| replacement | |||||
|
23220P
|
23220P
23221-0A030 Pump, Fuel[06.1998 - 07.2002] 1MZFE..MCV20 |
23221-0A030 |
US $500.86 |
||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[06.1998 - 07.2002] 1MZFE..MCV20 |
23219-03010 |
US $2.55 |
||
|
23249
|
23249
23218-0C010
Rubber, Cushion(For Fuel Pump)
[06.1998 - 07.2002] 1MZFE..MCV20 |
23218-0C010 |
— | ||
|
23280
|
23280
23280-74170 Regulator Assy, Fuel Pressure[06.1998 - 07.2002] 1MZFE..MCV20 |
23280-74170 |
from US $118.10 |
||
|
23280E
|
23280E
90301-07020 Ring, O(For Fuel Pressure Regulator)[06.1998 - 07.2002] 1MZFE..MCV20 |
90301-07020 |
from US $2.53 |
||
|
23300Z
|
23300Z
23300-74280 Filter, Fuel(For Fuel Tank)[06.1998 - 07.2002] 1MZFE..MCV20 |
23300-74280 |
US $59.06 |
||
|
9008030037
|
9008030037
90080-30037
New Genuine Part
|
90080-30037 |
— | ||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.76 |
||
