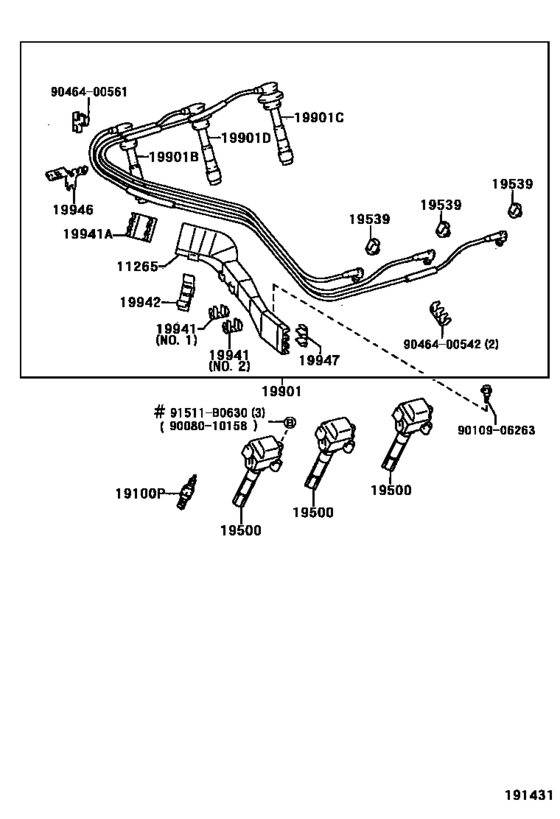

Ignition Coil & Spark Plug ([06.1998 - ] (9806- )1MZFE) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 06.1998
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11265
|
11265
11265-20020 Cover, Coil & Resistive Cord, Upr[06.1998 - 07.2002] 1MZFE..MCV20 |
11265-20020 |
US $46.16 |
||
|
19100P
|
19100P
90080-91116
Plug, Spark
[06.1998 - 08.1999] 1MZFE..MCV20..ATM PK20TR11,(L) |
90080-91116 |
— | ||
|
19100P
|
19100P
90919-01194 Spark Plug (Denso PK20TR11)[06.1998 - 07.2002] 1MZFE..MCV20 PK20TR11,(J) |
90919-01194 |
from US $15.87 |
||
|
19100P
|
19100P
90919-01195 Spark Plug (NGK BKR6EKPB11)[06.1998 - 07.2002] 1MZFE..MCV20 BKR6EKPB11 |
90919-01195 |
US $28.56 |
||
|
19500
|
19500
90080-19012 Coil Assy, Ignition[06.1998 - 08.1999] 1MZFE..MCV20..ATM (L) |
90080-19012 |
US $100.46 |
||
|
19500
|
19500
90919-02215 Coil Assy, Ignition[06.1998 - 08.1999] 1MZFE..MCV20..MTM; 1MZFE..MCV20..ATM (J) |
90919-02215 |
from US $111.95 |
||
|
19539
|
19539
19539-11040 Holder, Resistive Code, No.4[06.1998 - 07.2002] 1MZFE..MCV20 |
19539-11040 |
from US $4.07 |
||
|
19901
|
19901
19037-20011 Cord Set, Coil & Spark, W/resistiveCOIL & SPARK, W/RESISTIVE [06.1998 - 07.2002] 1MZFE..MCV20 |
19037-20011 |
US $109.69 |
||
|
19901B
|
19901B
90919-15308
Cord, Spark Plug Resistive, No.1
[06.1998 - 07.2002] 1MZFE..MCV20 |
90919-15308 |
— | ||
|
19901C
|
19901C
90919-15309
Cord, Spark Plug Resistive, No.2
[06.1998 - 07.2002] 1MZFE..MCV20 |
90919-15309 |
— | ||
|
19901D
|
19901D
90919-15310
Cord, Spark Plug Resistive, No.3
[06.1998 - 07.2002] 1MZFE..MCV20 |
90919-15310 |
— | ||
|
19941
|
19941
19941-20010 Clamp, Resistive Cord, No.1[06.1998 - 07.2002] 1MZFE..MCV20 NO.1 |
19941-20010 |
US $2.18 |
||
|
19941
|
19941
19941-20020 Clamp, Resistive Cord, No.1[06.1998 - 07.2002] 1MZFE..MCV20 NO.2 |
19941-20020 |
US $8.15 |
||
|
19941A
|
19941A
19941-65040 Clamp(For Resistive Cord)[06.1998 - 07.2002] 1MZFE..MCV20 |
19941-65040 |
US $7.16 |
||
|
19942
|
19942
19942-20010 Clamp, Resistive Cord, No.2[06.1998 - 07.2002] 1MZFE..MCV20 |
19942-20010 |
US $2.18 |
||
|
19946
|
19946
19946-20010 Clamp, Resistive Cord, No.3[06.1998 - 07.2002] 1MZFE..MCV20 |
19946-20010 |
US $11.36 |
||
|
19947
|
19947
19947-20010 Clamp, Resistive Cord, No.4[06.1998 - 07.2002] 1MZFE..MCV20 |
19947-20010 |
US $2.18 |
||
|
91511B0630
|
91511B0630
91511-B0630 BOLT FLANGE |
91511-B0630 |
US $1.97 |
||
|
9008010158
|
9008010158
90080-10158
New Genuine Part
|
90080-10158 |
— | ||
|
9010906263
|
9010906263
90109-06263 BOLT |
90109-06263 |
US $1.97 |
||
|
9046400542
|
9046400542
90464-00542 New Genuine Part |
90464-00542 |
US $3.99 |
||
|
9046400561
|
9046400561
90464-00561 Clamp, Resistive Cord, No.1 |
90464-00561 |
US $1.22 |
