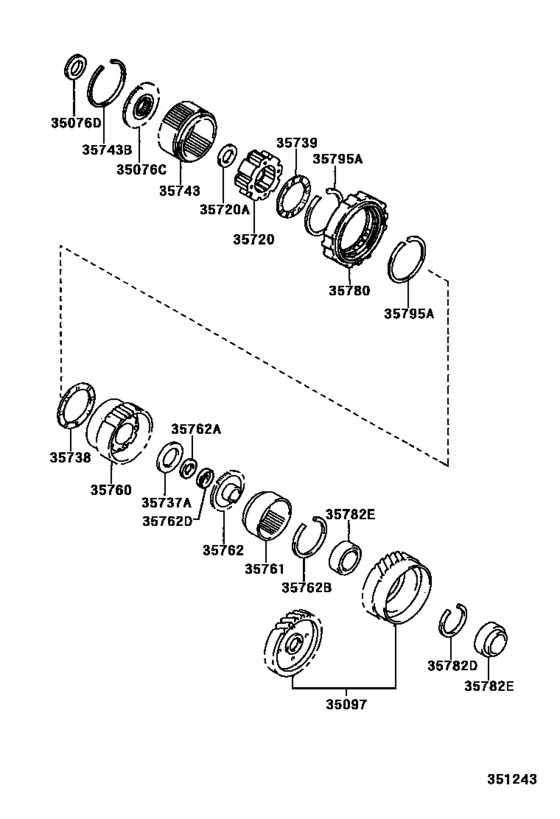

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([06.1998 - ] A541E (9806- )MCV20..ATM) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 06.1998
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35076C
|
35076C
35076-33011 Flange Sub-Assy, Front Planetary Ring Gear[06.1998 - 12.2002] MCV20..ATM |
35076-33011 |
US $99.64 |
||
|
35076D
|
35076D
90374-31003
Bearing, Thrust Needle Roller(For Front Planetary Flange)
[06.1998 - 12.2002] MCV20..ATM |
90374-31003 |
— | ||
|
35097
|
35097
35097-33010 Counter Gear Kit, Automatic Transaxle[06.1998 - 12.2002] MCV20..ATM |
35097-33010 |
US $311.58 |
||
|
35720
|
35720
35720-32020
Gear Assy, Front Planetary
[06.1998 - 11.1998] MCV20..ATM |
35720-32020 |
— | ||
| replacement | |||||
|
35720
|
35720
35720-33010 Gear Assy, Front Planetary[06.1998 - 11.1998] MCV20..ATM |
35720-33010 |
US $716.07 |
||
|
35720
|
35720
35720-33010 Gear Assy, Front Planetary[11.1998 - 12.2002] MCV20..ATM |
35720-33010 |
US $716.07 |
||
|
35720A
|
35720A
90374-30015
Bearing, Thrust Needle Roller (For Front Planetary Gear)
[06.1998 - 12.2002] MCV20..ATM |
90374-30015 |
— | ||
|
35737A
|
35737A
35738-33010
Washer, Planetary Carrier Thrust, No.1
[06.1998 - 12.2002] MCV20..ATM |
35738-33010 |
— | ||
|
35738
|
35738
35738-33020 Washer, Planetary Carrier Thrust, No.2[06.1998 - 12.2002] MCV20..ATM |
35738-33020 |
US $26.79 |
||
|
35739
|
35739
35739-33010 Washer, Planetary Carrier Thrust, No.3[06.1998 - 12.2002] MCV20..ATM |
35739-33010 |
US $35.53 |
||
|
35743
|
35743
35743-33020 Gear, Front Planetary Ring[06.1998 - 12.2002] MCV20..ATM |
35743-33020 |
from US $117.94 |
||
|
35743B
|
35743B
90520-90002 Ring, Hole Snap (For Front Planetary Ring Gear)[06.1998 - 12.2002] MCV20..ATM |
90520-90002 |
US $4.08 |
||
|
35760
|
35760
35760-33020 Gear Assy, Rear Planetary[06.1998 - 12.2002] MCV20..ATM |
35760-33020 |
from US $346.53 |
||
|
35761
|
35761
35761-32020 Gear, Rear Planetary Ring[06.1998 - 12.2002] MCV20..ATM |
35761-32020 |
US $101.92 |
||
|
35762
|
35762
35762-33010 Flange, Rear Planetary Ring Gear[06.1998 - 12.2002] MCV20..ATM |
35762-33010 |
US $20.09 |
||
|
35762A
|
35762A
90374-22006
Bearing, Thrust Needle Roller (For Rear Planetary Flange)
[06.1998 - 12.2002] MCV20..ATM |
90374-22006 |
— | ||
|
35762B
|
35762B
90520-82002 Ring, Hole Snap (For Rear Planetary Ring Gear Flange)[06.1998 - 12.2002] MCV20..ATM |
90520-82002 |
US $4.08 |
||
|
35762D
|
35762D
35789-33020
Race, Thrust Bearing (For Rear Planetary Flange)
[06.1998 - 12.2002] MCV20..ATM |
35789-33020 |
— | ||
|
35780
|
35780
35780-33010 Clutch Assy, 1 Way No.2[06.1998 - 12.2002] MCV20..ATM |
35780-33010 |
US $264.99 |
||
|
35782D
|
35782D
90521-67001 Ring, Hole Snap(For Counter Drive Gear)[06.1998 - 12.2002] MCV20,SXV20..ATM |
90521-67001 |
US $3.20 |
||
|
35782E
|
35782E
90366-40077 Bearing(For Counter Drive Gear)[06.1998 - 12.2002] MCV20,SXV20..ATM |
90366-40077 |
US $26.21 |
||
|
35795A
|
35795A
90520-99017 Ring, Hole Snap (For 1 Way Clutch Outer Race)[06.1998 - 12.2002] MCV20..ATM |
90520-99017 |
US $4.22 |
||
